COOK Economizer Fan - Manual (Page 6)

1
2
3
4
5 6
9 10
11
2
3
5
4
7
8
9
Part No. Description
Number Required
Non-Filtered Filtered
24 30 36 42 48 54 60 24 30 36 42 48 54 60
1 Perimeter Angle - - - - 4 4 4 4 4 4 4 4 4 8
2 Angle Support - - - - 4 4 4 - - - 4 4 4 4
3 Top Cap 1 1 2 2 2 2 2 1 2 2 2 2 2 2
4 Hood 1 1 1 1 2 2 2 1 1 1 2 2 2 2
5 Filter Rack - - - - - - - 2 2 2 2 2 2 4
6 Filter Crossmember - - - - - - - 2 2 2 2 2 2 2
7 Corner Post 4 4 4 4 4 4 4 - - - 4 4 4 4
8 Base Assembly 1 1 1 1 1 1 1 1 1 1 1 1 1 1
9 Hood Support - - - - - 2 2 - - - - 2 2 2
10 Hood Support Angle - - - - 2 2 2 - - - 2 2 2 4
11 Center Post - - - - - - - - - - - - - 2
Parts Not Illustrated
Filters (MRSF only) - - - - - - - - - - - - - - 6 10 10 10 12 16 16
Filter Retainer Clips (MRSF only) - - - - - - - - - - - - - - 12 20 20 20 24 32 32

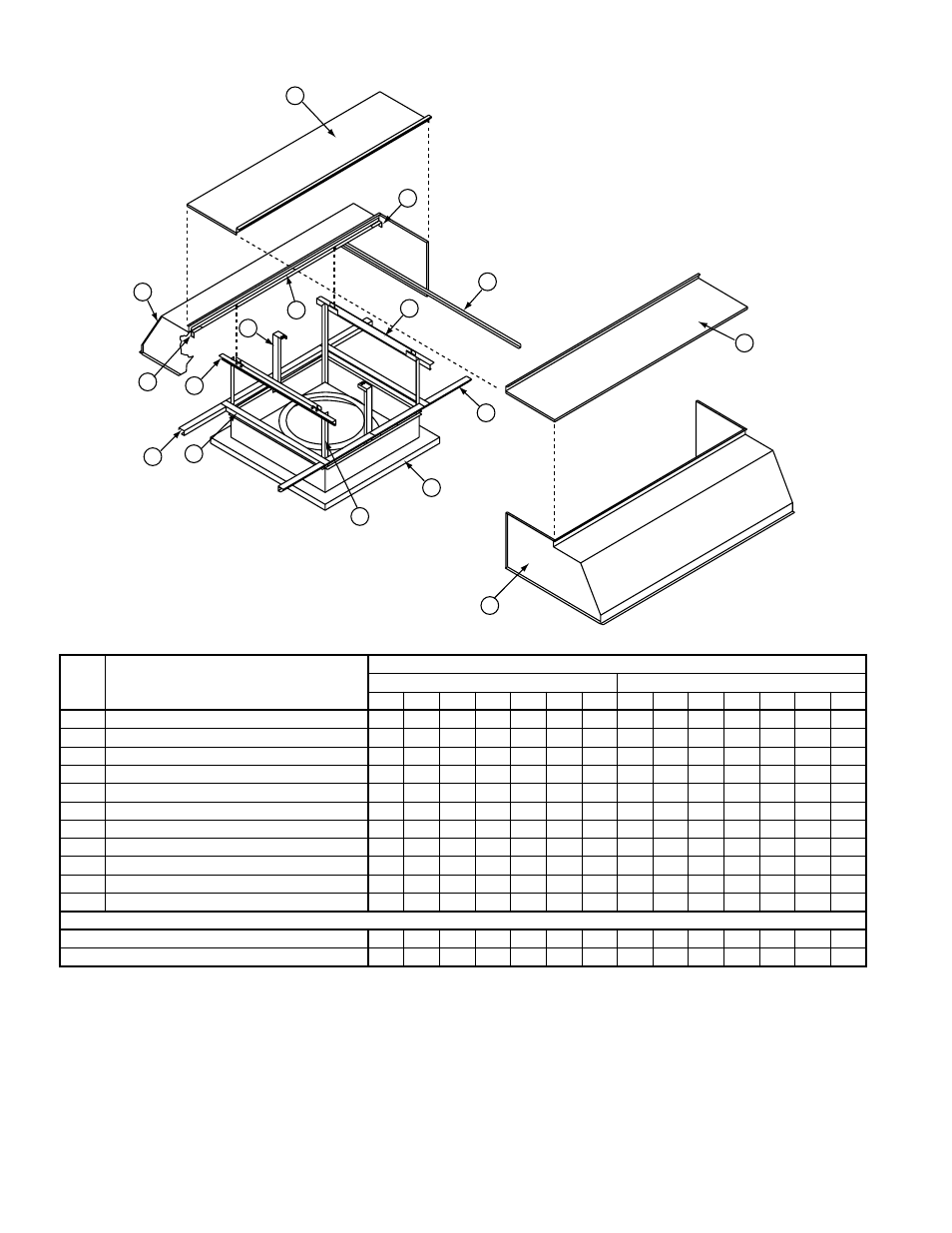

Economizer Hood Replacement Parts List
6
