SPA STATUS
Important information about spa operation can be seen quickly
from the Main Screen. The most important features, including
Set Temperature adjustment, can be accessed from this screen.
The actual water temperature can be seen in large text and the
desired, or Set Temperature, can be selected and adjusted.
Time-of-day, Ozone operation and Filter Operation status is avail-
able, along with other messages and alerts
.
High Temperature Range vs. Low Temperature Range is indicated
in the upper right corner
.
The Jets Icon in the center will spin on a TP900 if any pump is
running and changes color when the heater is on. (The icon does
not spin on a TP800, but still indicates pump and heater function)
A Lock icon is visible if the panel or settings are locked.
The Menu choices on the right can be selected and the screen
will change to show more detailed controls or programming
functions.

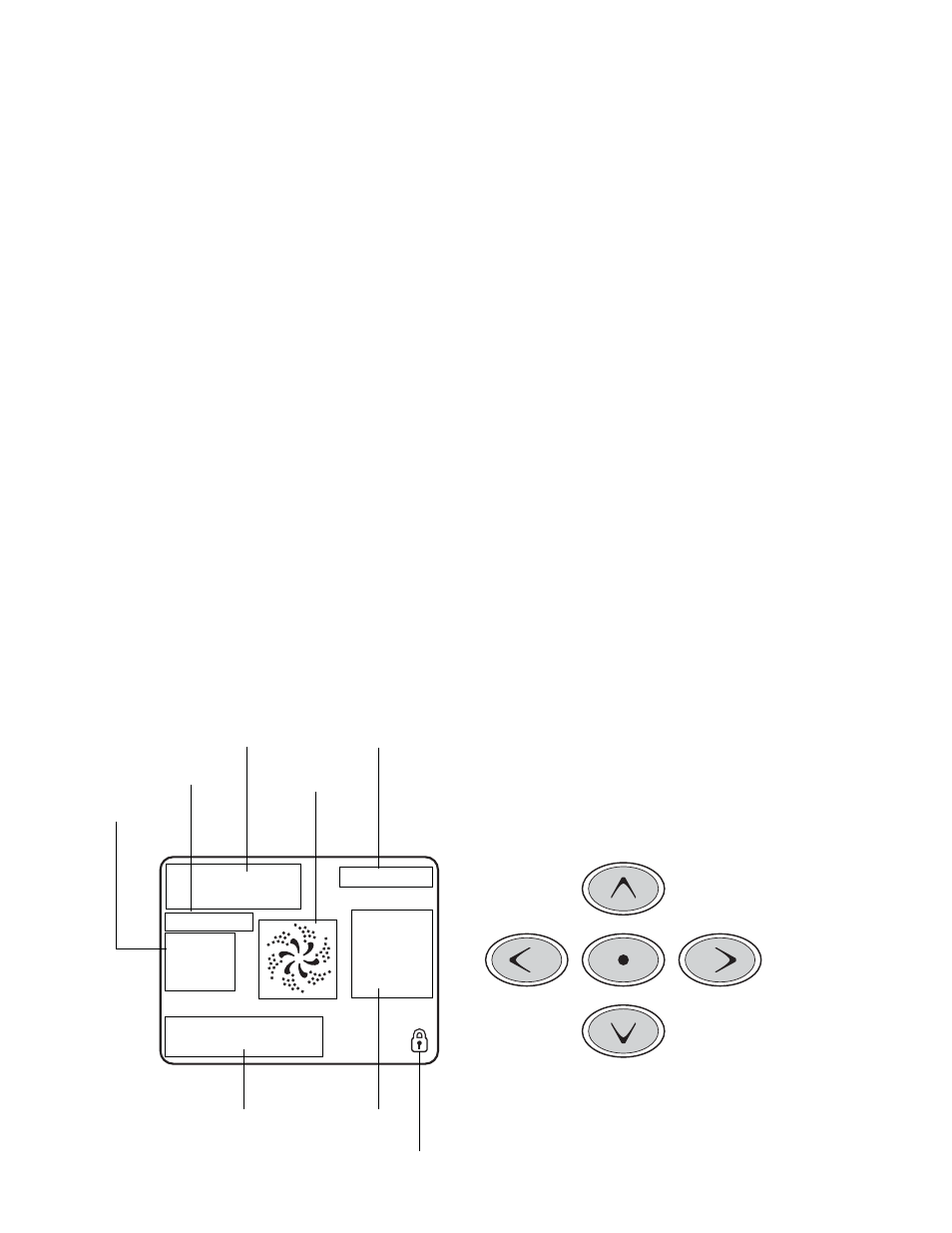

Set: 104°F
8:32 PM
Ozone
Filter 1 Spa
Shortcuts
Settings
High Range 102°F
Ready in Rest Mode
Heating
Water Temperature
Messages
Desired Temperature
Temperature Range
Pump and Heat
Menus
Lock Indicator
Status
NAVIGATION
Navigating the entire menu structure is done with the 5 buttons
on the control panel.
When a text item changes to white during navigation, that indi-
cates the item is selected for action.
Operating or changing a selected item is generally done with the
center or “Select” button.
The only item that can be changed on the left side of the Main
Screen is the Set Temperature. Press the Left Arrow button to
change the Set Temperature number to white. The Set Tem-
perature can then be adjusted with the up and down buttons.
Pressing the Select button or the Right Arrow button will save
the new set temperature.
On the right side of the screen, the menu selections can be
selected with the Up and Down Buttons. Use the Select Button
to choose an item. Selecting one of these items will change to a
different screen with additional controls.
PRESS-AND-HOLD
If an Up or Down button is pressed and held when the Set
Temperature is selected, the temperature will continue to change
until the button is released, or the Temperature Range limits are
reached.
MESSAGES
At the bottom of the screen, messages may appear at various
times. Some of these messages must be dismissed by the user.
The Main Screen - Navigation TP800, TP900 Panel Operations -
