Manufactured under one or more of these patents. U.S. Patents: 5332944, 5361215, 5550753, 5559720, 5,883,459, 6253227, 6282370, 6590188, 6976052, 6965815, 7030343, 7,417, 834 b2,

Canadian Patent: 2342614, Australian patent: 2373248 other patents both foreign and domestic applied for and pending. All material copyright of Balboa Water Group.

42211B

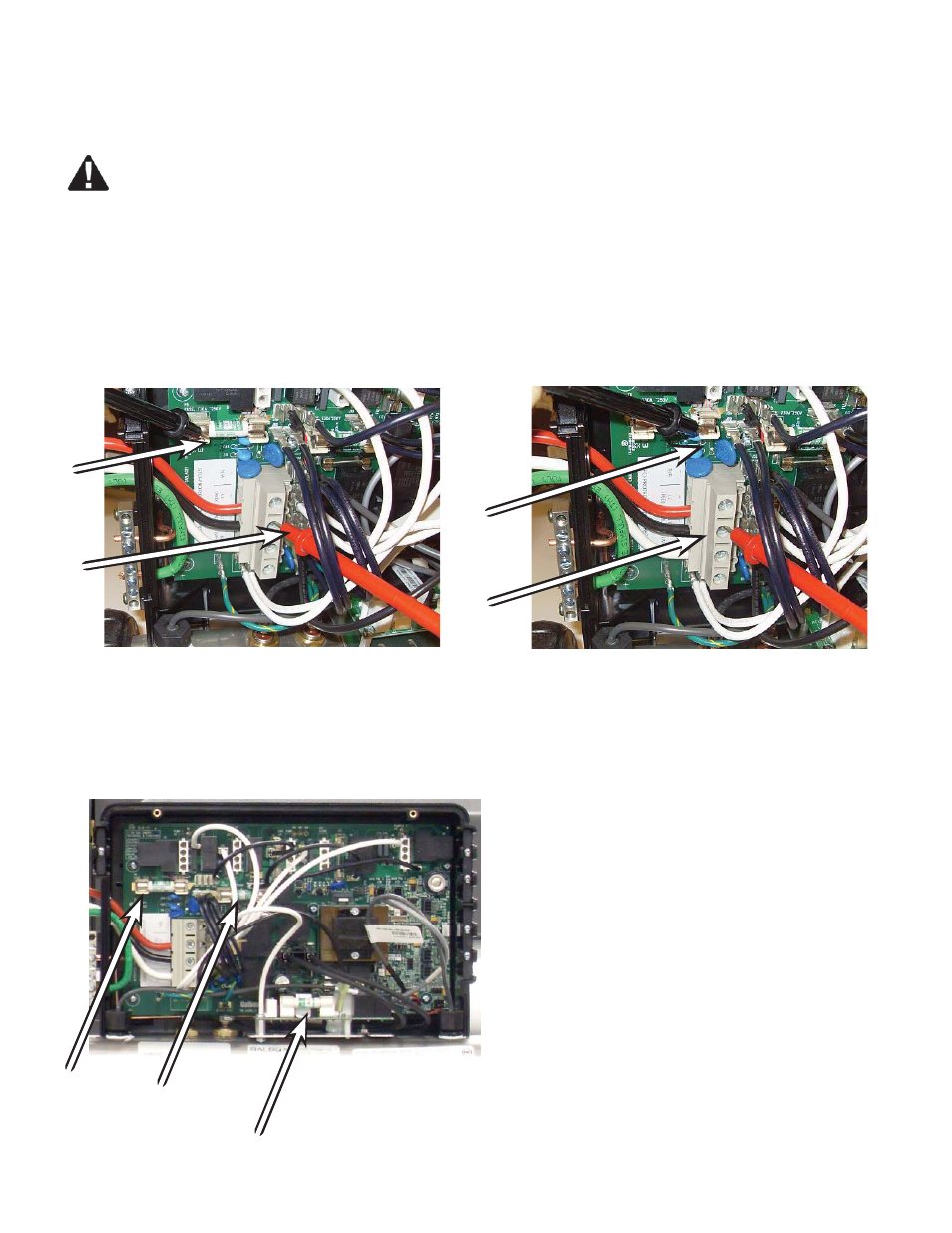

Testing Pump Fuses for Damage with Voltage On - BP2000G1

TEST THE VOLTAGE FROM THE

RIGHT SIDE OF THE FUSE

TEST THE VOLTAGE FROM THE

LEFT SIDE OF THE FUSE

THERE ARE THREE 30A PUMP FUSES IN THE BP2000G1 SPA CONTROL SYSTEM.

F6 AND F8 ARE ON THE MAIN BOARD. F1 IS LOCATED ON THE EXPANDER BOARD.

CAUTION - TEST IS WITH POWER ON

240V on each side

indicates a good fuse

240V on one side and

0V on the other side

indicates a bad fuse

Then continue

measuring the other

two fuses: F8, F1

F6 TO TB1

RED
