Bp 60hz spa control system wiring diagrams, Power requirements, System ouputs – Balboa Water Group BP 60Hz User Manual

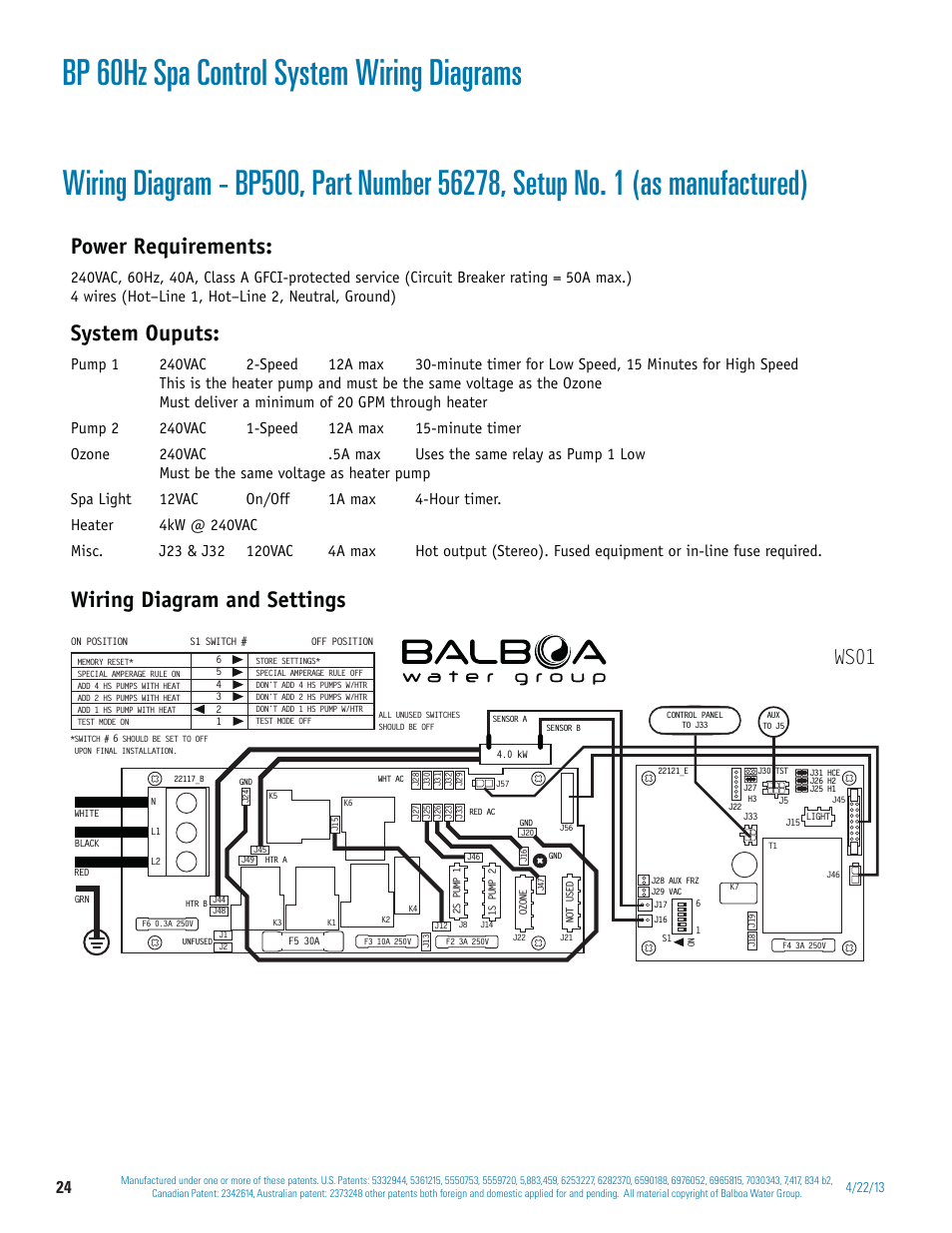

Page 24: Wiring diagram and settings, Ws01
