6 Make sure that the memory module is installed properly.
Check the following after installing the memory module:
• The clips on both sides are aligned with each other.
• The clips on both sides fit into the notches of the memory module
properly.

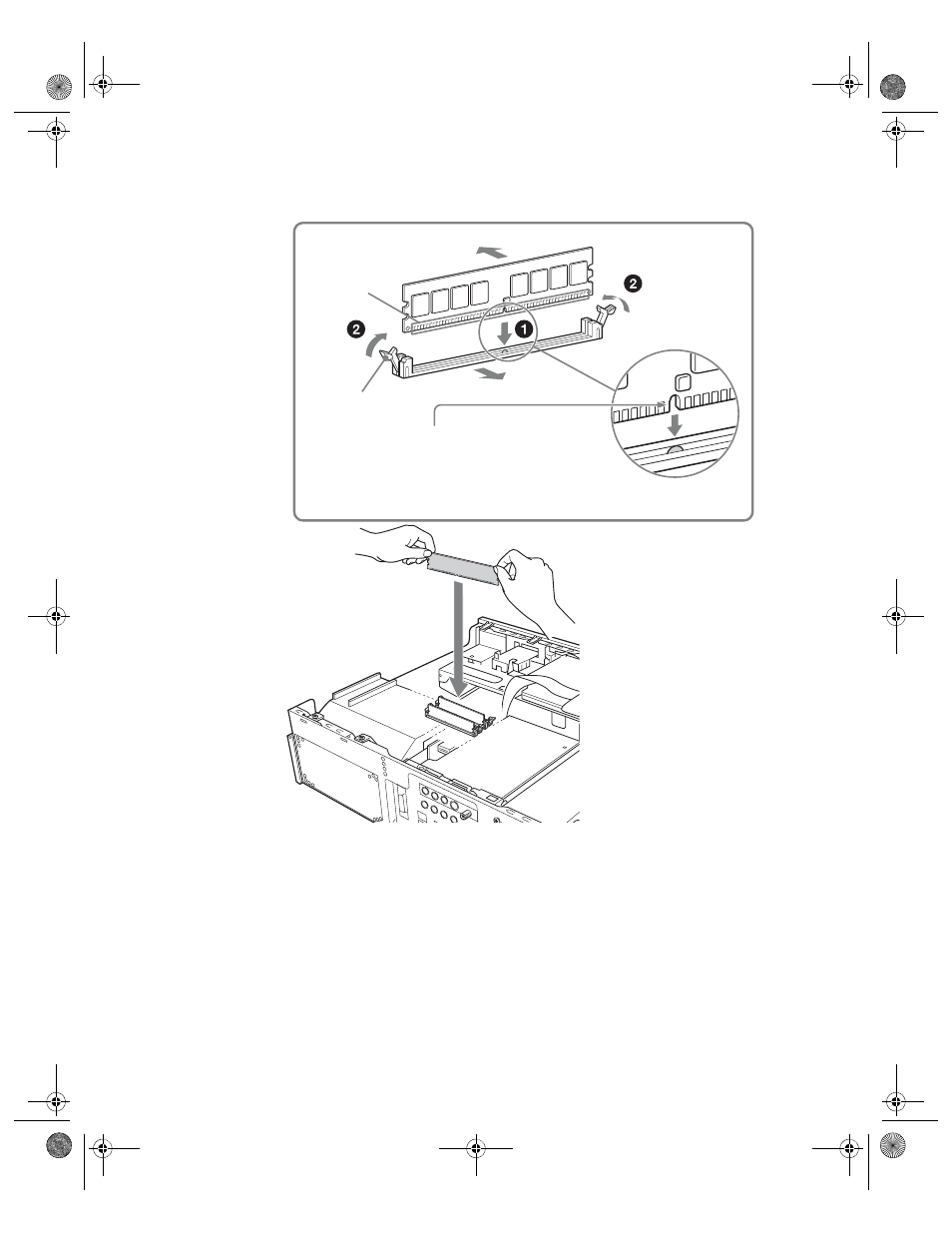

Use both hands to
Use both hands to
place the memory
module.
Connectors go down
Locking Cap
Align the Memory Module notch as shown
Make sure the locking caps are back and the notch is
aligned. Pres down the memory module until the locking
caps pop up. Press in to secure.
