Removing the lcd brackets and fpc cable – Acer 5517 User Manual
Page 94
84
Chapter 3

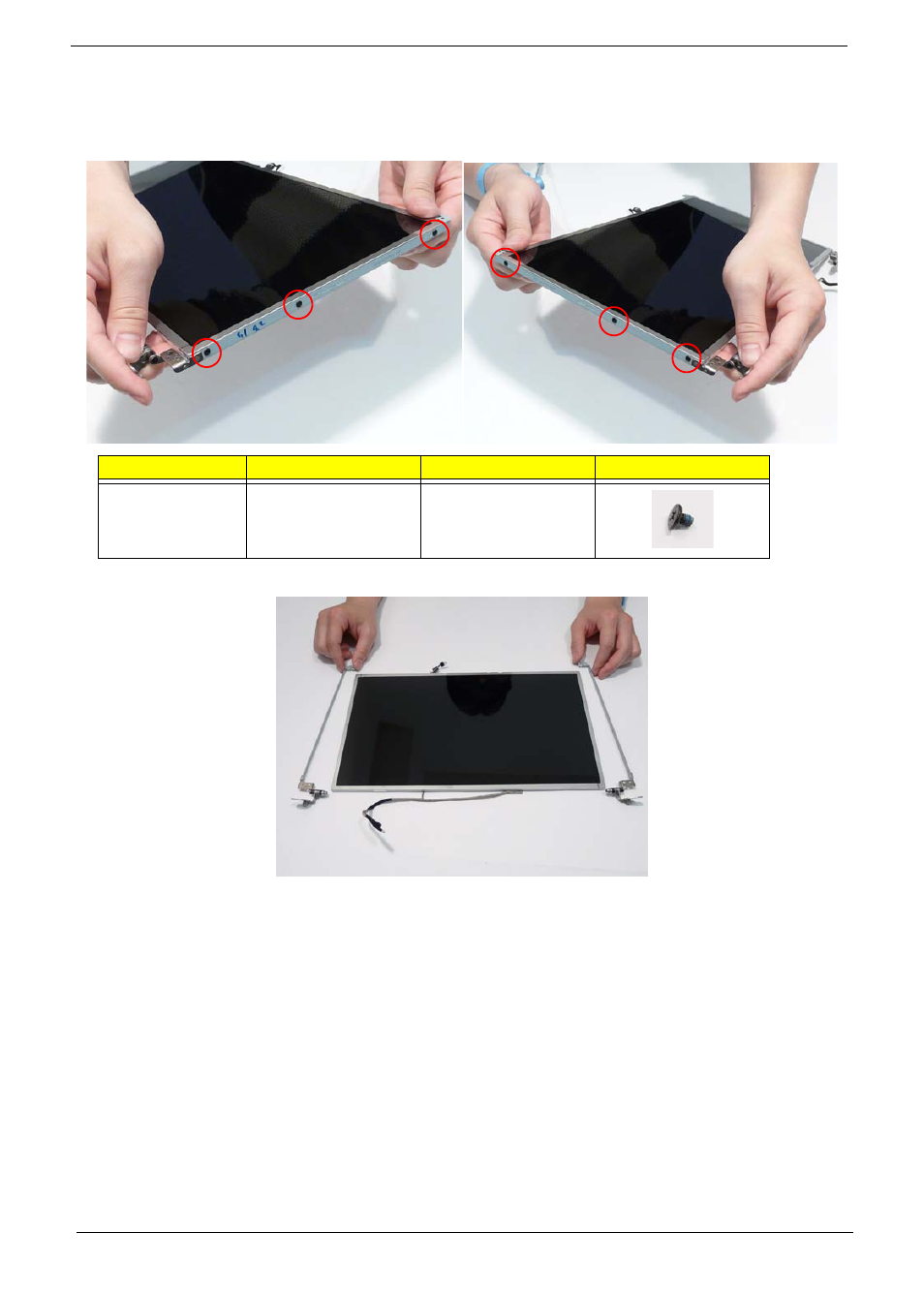

Removing the LCD Brackets and FPC Cable
1. See “Removing the LCD Panel” on page 82.
2. Remove the six securing screws (three on each side) from the LCD Panel brackets.
3. Remove the LCD brackets by pulling away from the LCD Panel.
Step
Size
Quantity
Screw Type
LCD Brackets
M2*3
6
