Acer 5517 User Manual
Page 100
90
Chapter 3

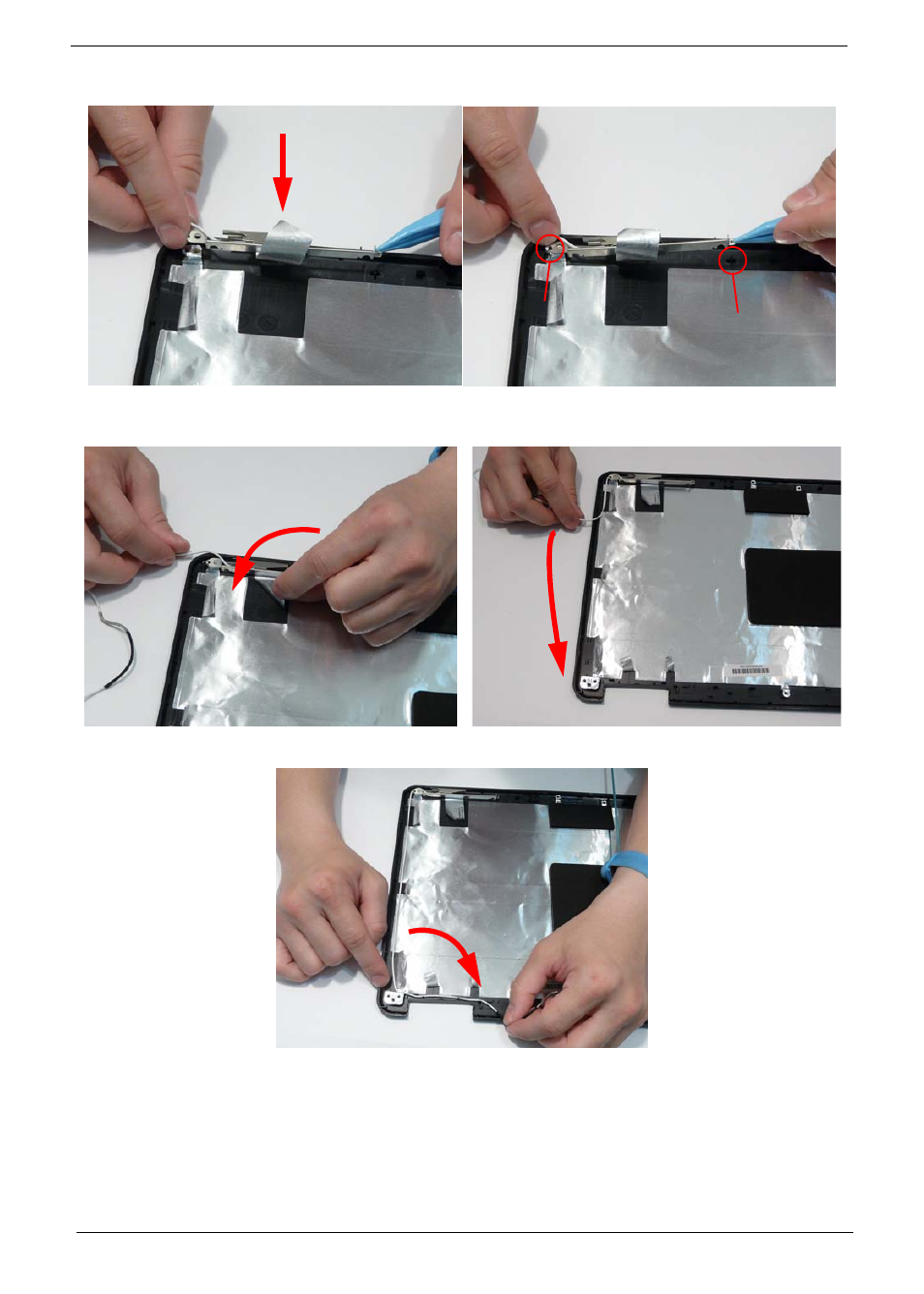

5. Replace the left Antenna as shown. Ensure that the locating pins on the Antenna are correctly seated.
6. Replace the adhesive strip to secure the Antenna
in place.
7. Run the cable down the side of the LCD Module
using all available clips and adhesive.
8. Run the cable along the cable channel as shown, using all available cable clips and adhesive.
Locating Pin
Locating Pin
