140 Chapter 5

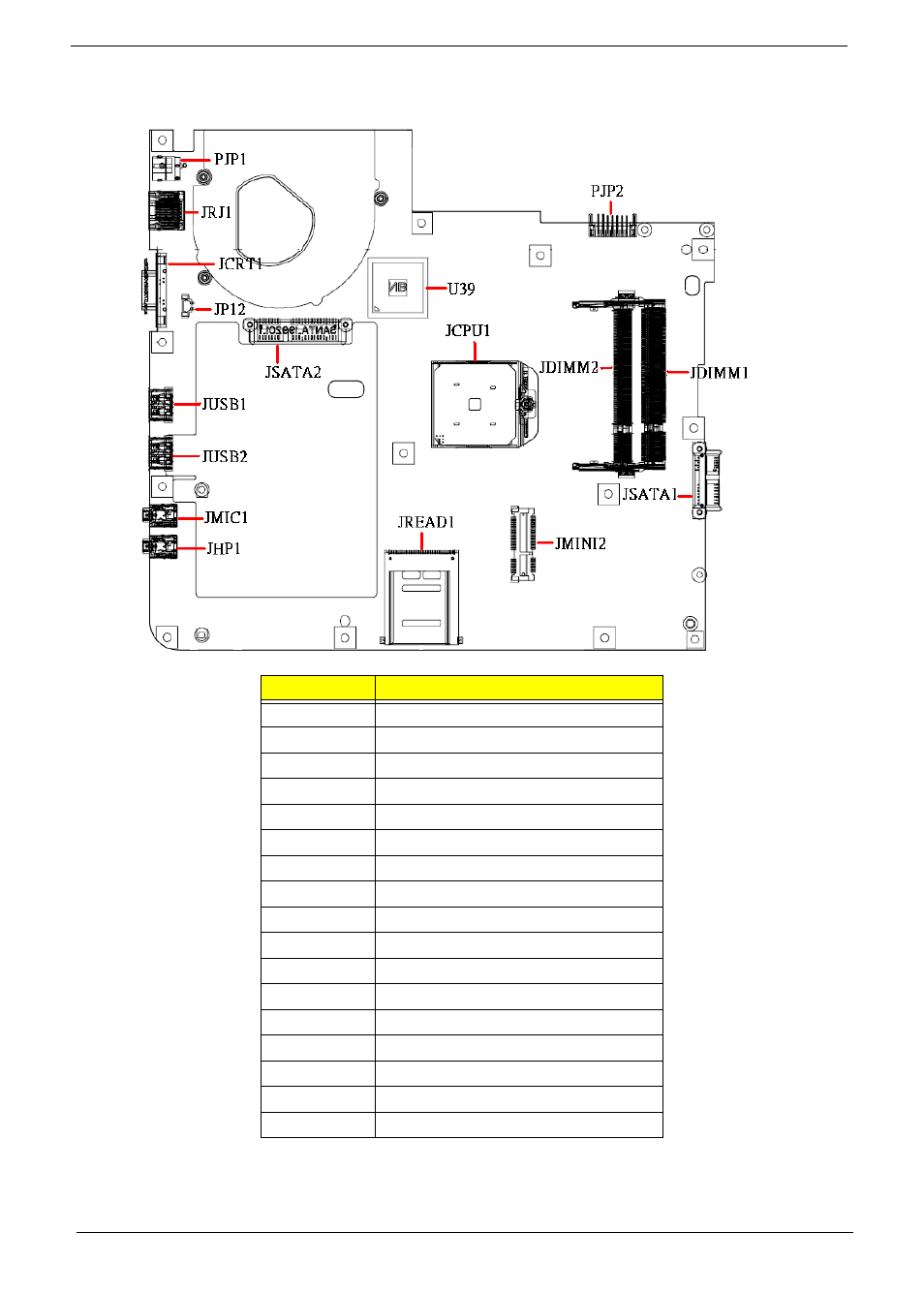

Bottom View
ITEM DESCRIPTION
PJP1 AC-IN Connector
JRJ1 RJ45 Connector
JCRT1 CRT Connector
JP12 Fan Connector
JUSB1 USB Connector
JUSB2 USB Connector
JMIC1 MIC-In Jack
JHP1 Head-Phone Jack
JSATA2 HDD Connector
U39 North Bridge
JCPU1 CPU Socket
JREAD1 Card Reader Socket
PJP2 Battery Connector
JDIMM2 Memory DIMM2 Connector
JDIMM1 Memory DIMM1 Connector
JSATA1 ODD Connector
JMINI2 Wireless Card Connector
