Replacing the left speaker module – Acer 5517 User Manual
Page 113
Chapter 3
103

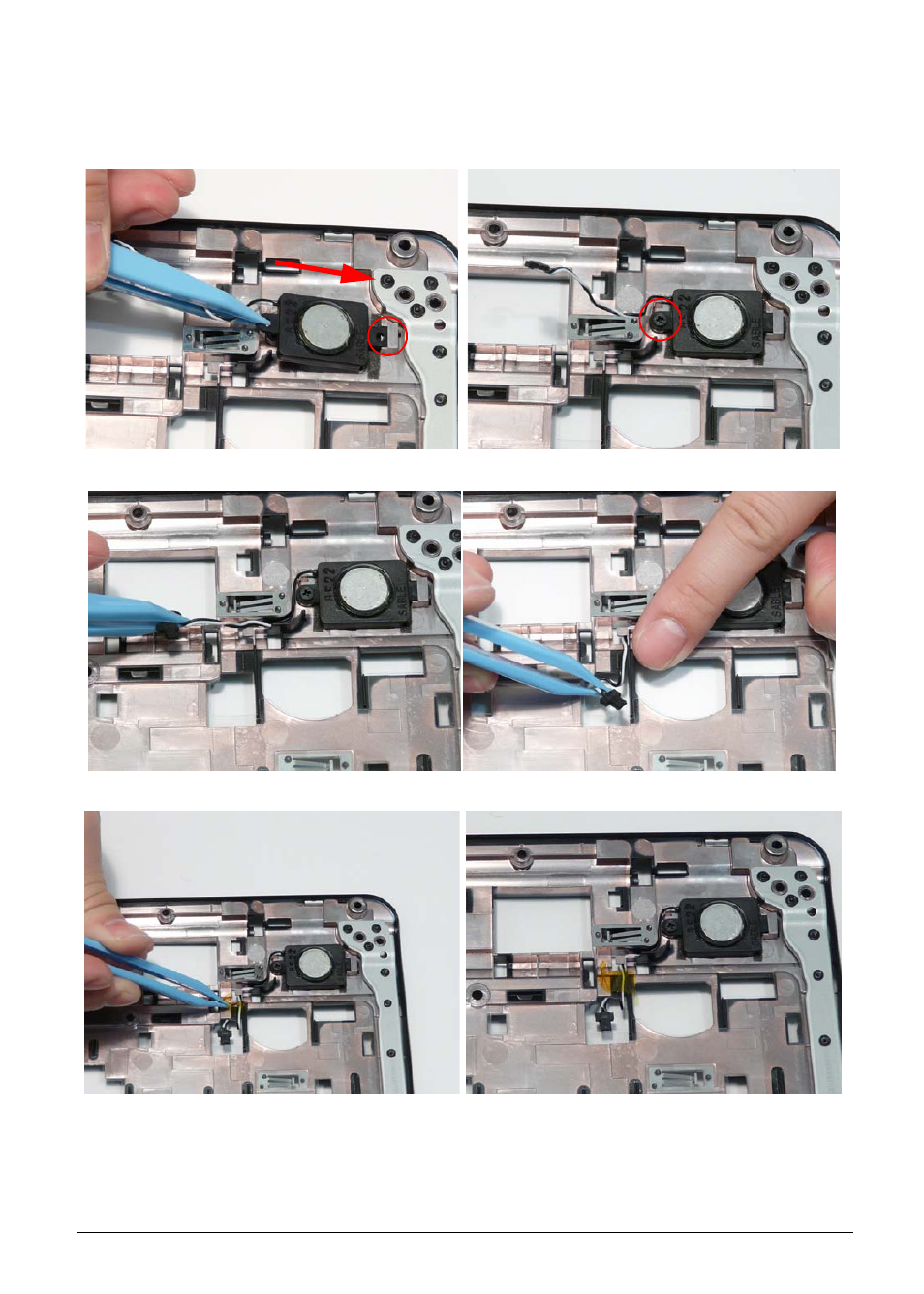

Replacing the Left Speaker Module
1. Place the module right side first on the Upper
Cover as shown. Ensure that the right side of the
module is seated correctly in the securing clip.
2. Replace the single screw to secure the module in
place.
3. Run the cable along the cable channel using all available cable clips.
4. Secure the cable in place with adhesive tape.
5. The cable runs as shown when correctly installed.
