Acer 5517 User Manual
Page 73
Chapter 3
63
NOTE: Avoid pulling on cables directly to prevent damage to the connectors.
NOTE: Use the pull-tabs on FFCs whenever available to prevent damage.

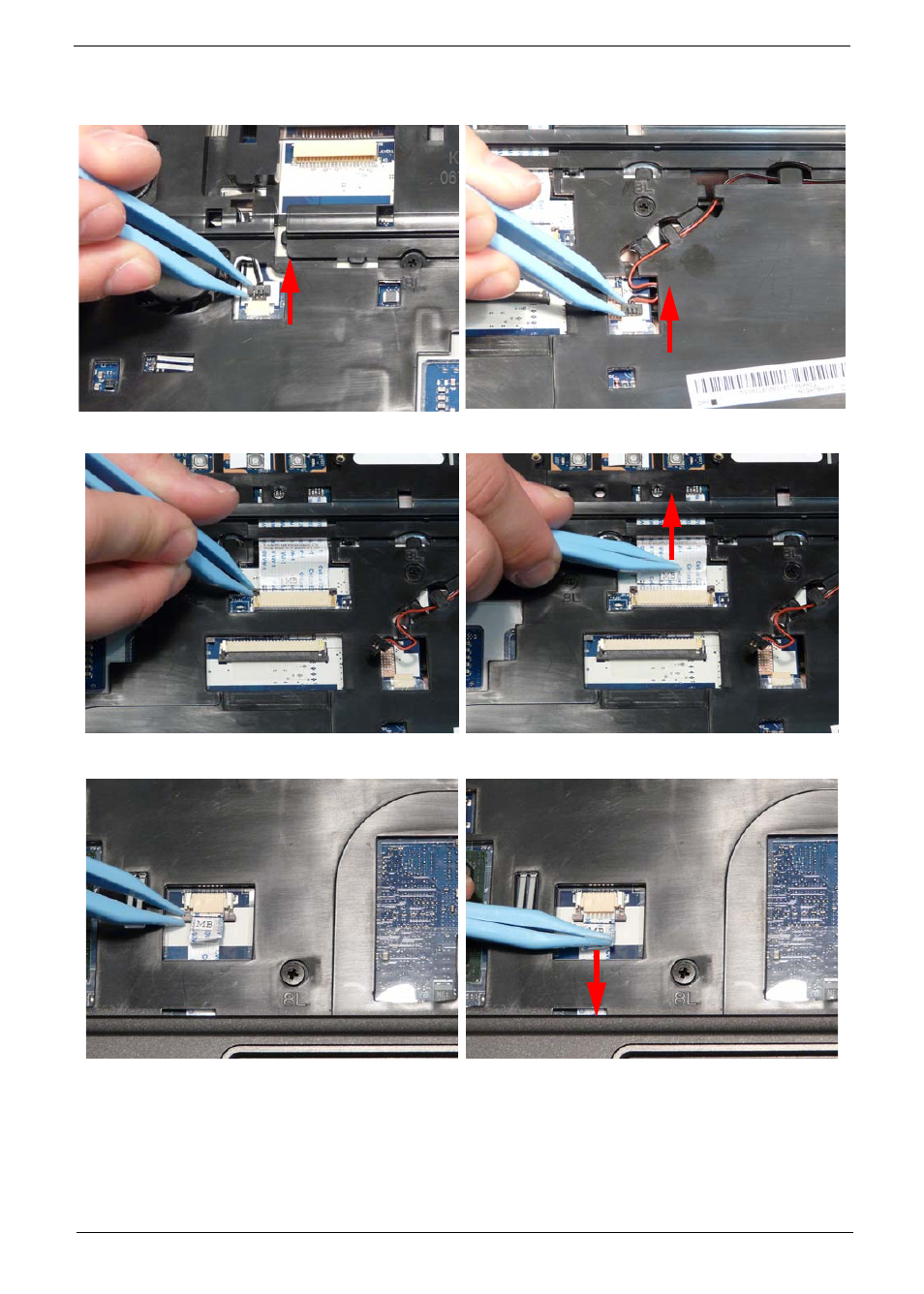

5. Disconnect A as shown.
6. Disconnect C as shown.
7. Release the locking latch on B and remove the FFC cable as shown.
8. Release the locking latch on D and remove the FFC cable as shown.
