Removing the optical drive module – Acer 5517 User Manual
Page 57
Chapter 3
47

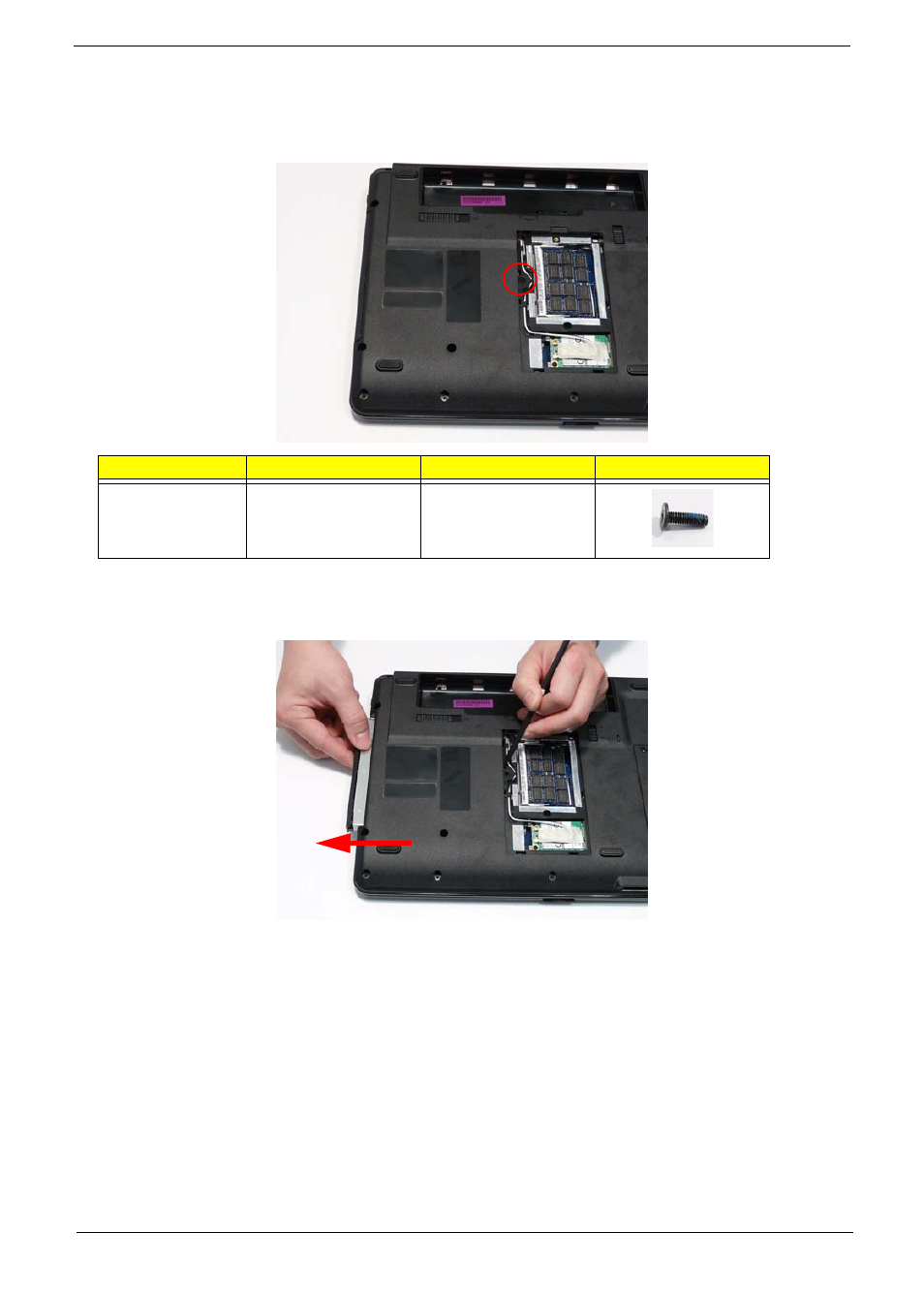

Removing the Optical Drive Module
1. See “Removing the Battery Pack” on page 44.
2. Remove the screw securing the ODD module.
3. Insert a suitable tool into the access slot in the battery bay as shown. Gently lever the ODD module out of the
chassis.
4. Pull the optical drive module out from the chassis.
Step
Size
Quantity
Screw Type
ODD Module
M2.5*8
1
