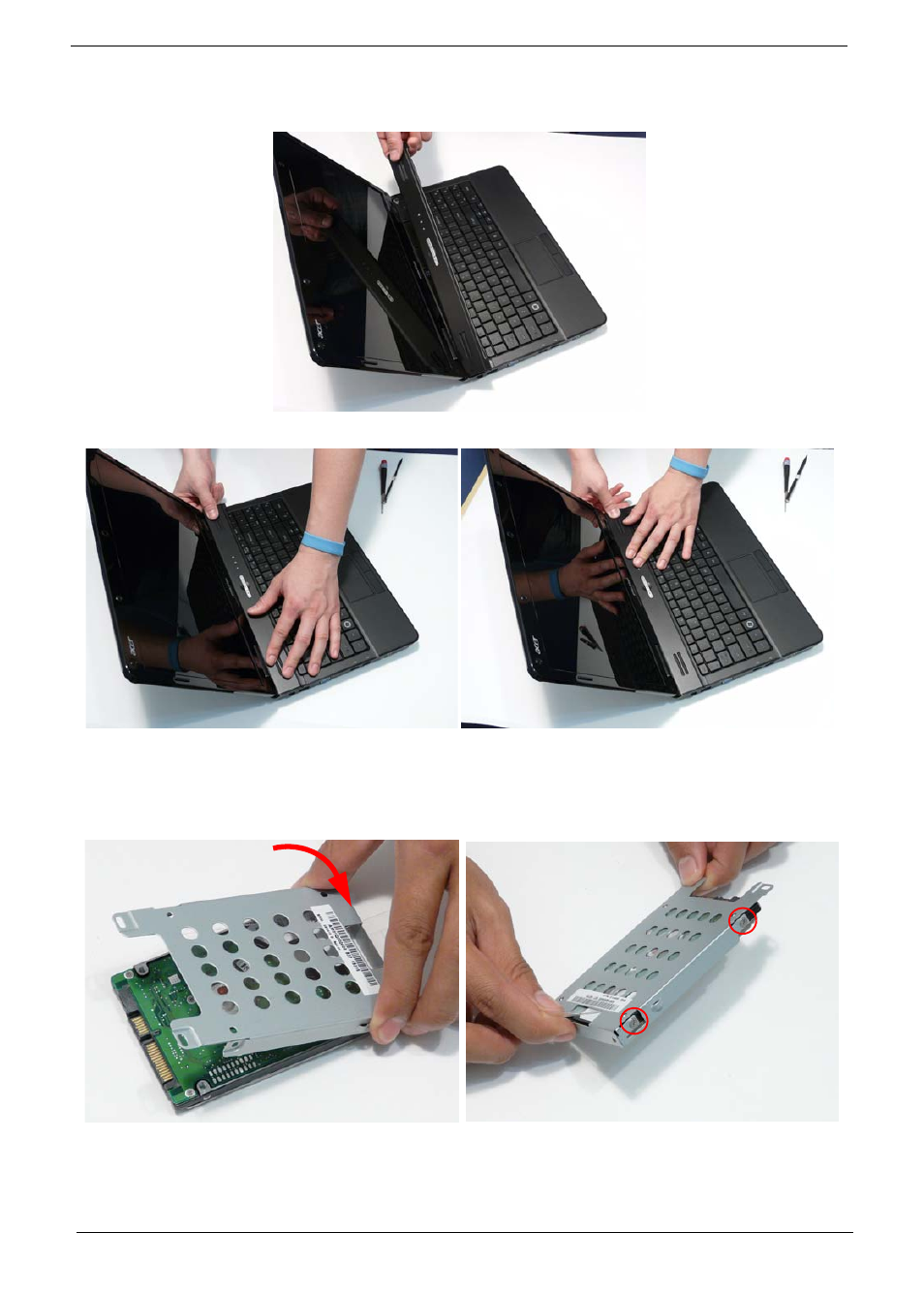

Replacing the Switch Cover
Replacing the Hard Disk Drive Module
1. Place the Switch Cover left side first on to the Upper Cover.
2. Press down as indicated to snap the Switch Cover into place.
1. Place the HDD in the HDD carrier.
2. Replace the four screws (two each side) to secure
the carrier.
