Removing the power board – Acer 5517 User Manual
Page 75
Chapter 3
65

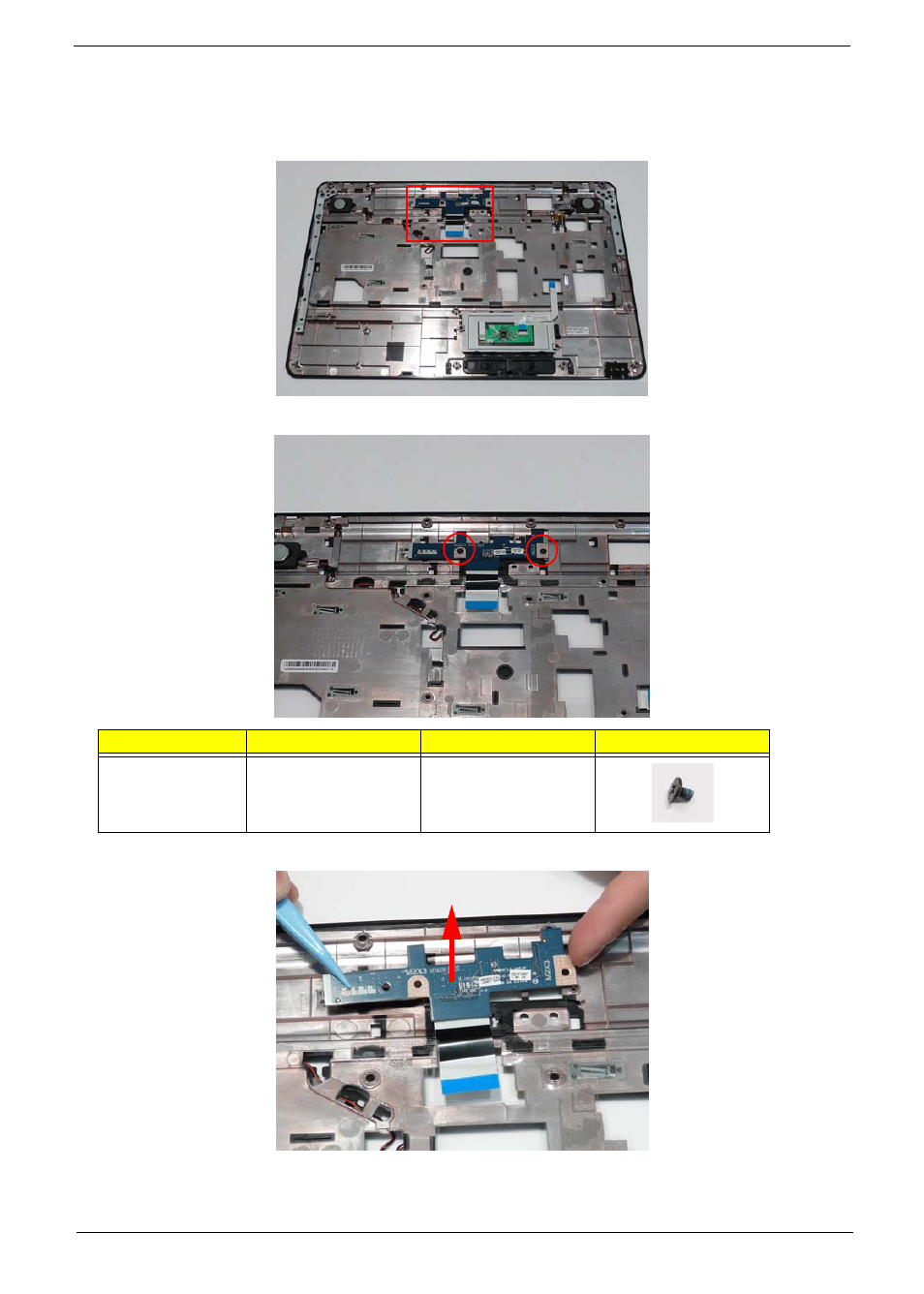

Removing the Power Board
1. See “Removing the Upper Cover” on page 61.
2. Locate the Power Board on the Upper Cover as shown.
3. Remove the two screws securing the Power Board to the Upper Cover.
4. Lift the Power Board clear of the Upper Cover as shown.
Step
Size
Quantity
Screw Type
Power Board
M2*3
2
