Replacing the right speaker module – Acer 5517 User Manual
Page 112
102
Chapter 3
Replacing the Right Speaker Module

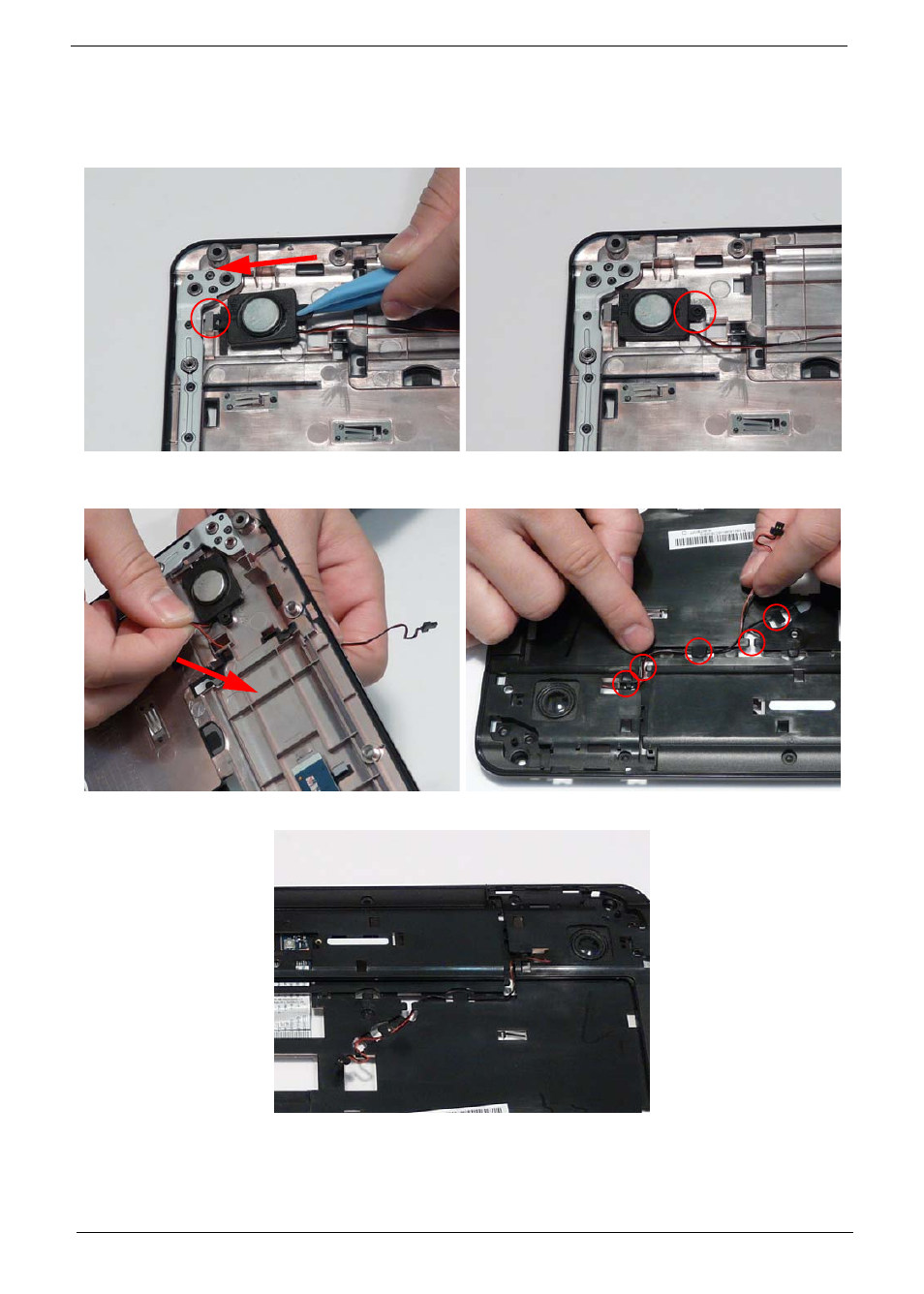

1. Place the module left side first on the Upper Cover
as shown. Ensure that the left side of the module is
seated correctly in the securing clip.
2. Replace the single screw to secure the module in
place.
3. Pass the cable through the Upper Cover as shown. 4. Turn the Upper Cover over and run the cable along
the cable channel using all available cable clips.
5. The cable runs as shown when correctly installed.
