Replacing the power board, Replacing the upper cover – Acer 5517 User Manual
Page 114
104
Chapter 3

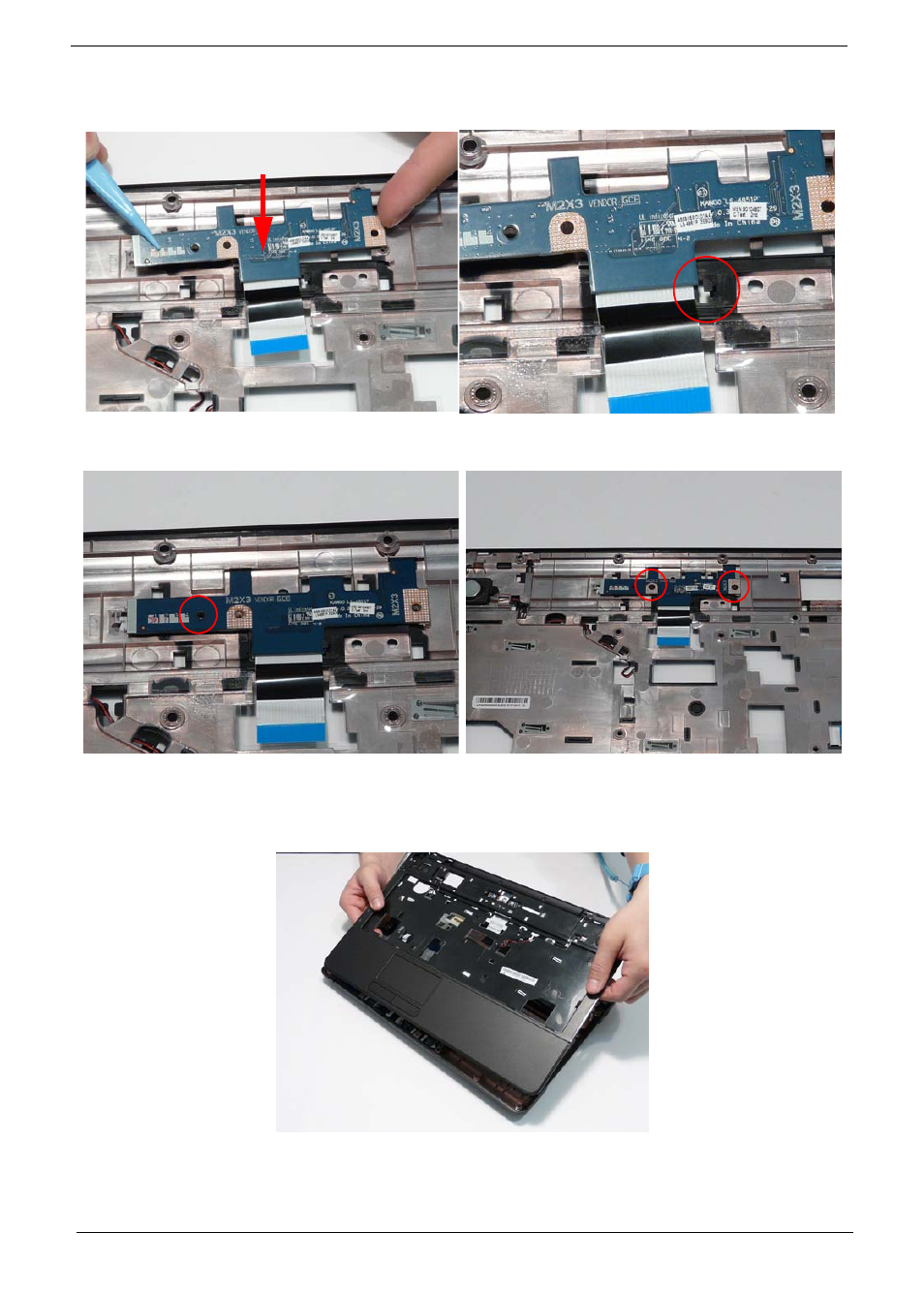

Replacing the Power Board
Replacing the Upper Cover
1. Slide the Power Board in to the Upper Cover front edge first to engage the securing clip.
2. Press the board down to locate the securing pin.
3. Replace the two screws to secure the board to the
Upper Cover.
1. Place the Upper Cover on the Lower Cover as shown.
