ƒ To plug-in a temperature sensor
ƒ A drain
Installation
The MCRES-MICRO can be installed in any suitable location meeting its form factor requirements. For
filling purposes, it is preferable to install the MCRES-MICRO at the highest point of the liquid cooling loop.
Fastening the device to the case: two mounting methods can be used
‰ Various permanent mounts thru the reservoir ears or with the provided mounting hardware
as shown page 3.
‰ Easy mount, with the provided Velcro strips. Please note that a permanent mount is
recommended for a reliable fastening of the device over time.
Recommended coolant, and prohibited fluids
We recommend using distilled water with a 5% (or up to 10%) of Swiftech’s HydrX coolant.
Use of alcohols (Alcohol Allyl, Amyl, Benzyl, Ethyl (Ethanol), Isopropyl, Methyl (Methanol), n-Butyl)
or antifreeze products containing the listed alcohols is prohibited as it will result in deterioration of
the product over-time, and will void your warranty. Resistance to Ethylene and Methylene glycol used in
antifreeze products is excellent.
Minimum Operating Level is situated at the Swiftech Logo (approximately ½” of the reservoir). The
reservoir should not be operated below this level, which could result in degradation of the system cooling

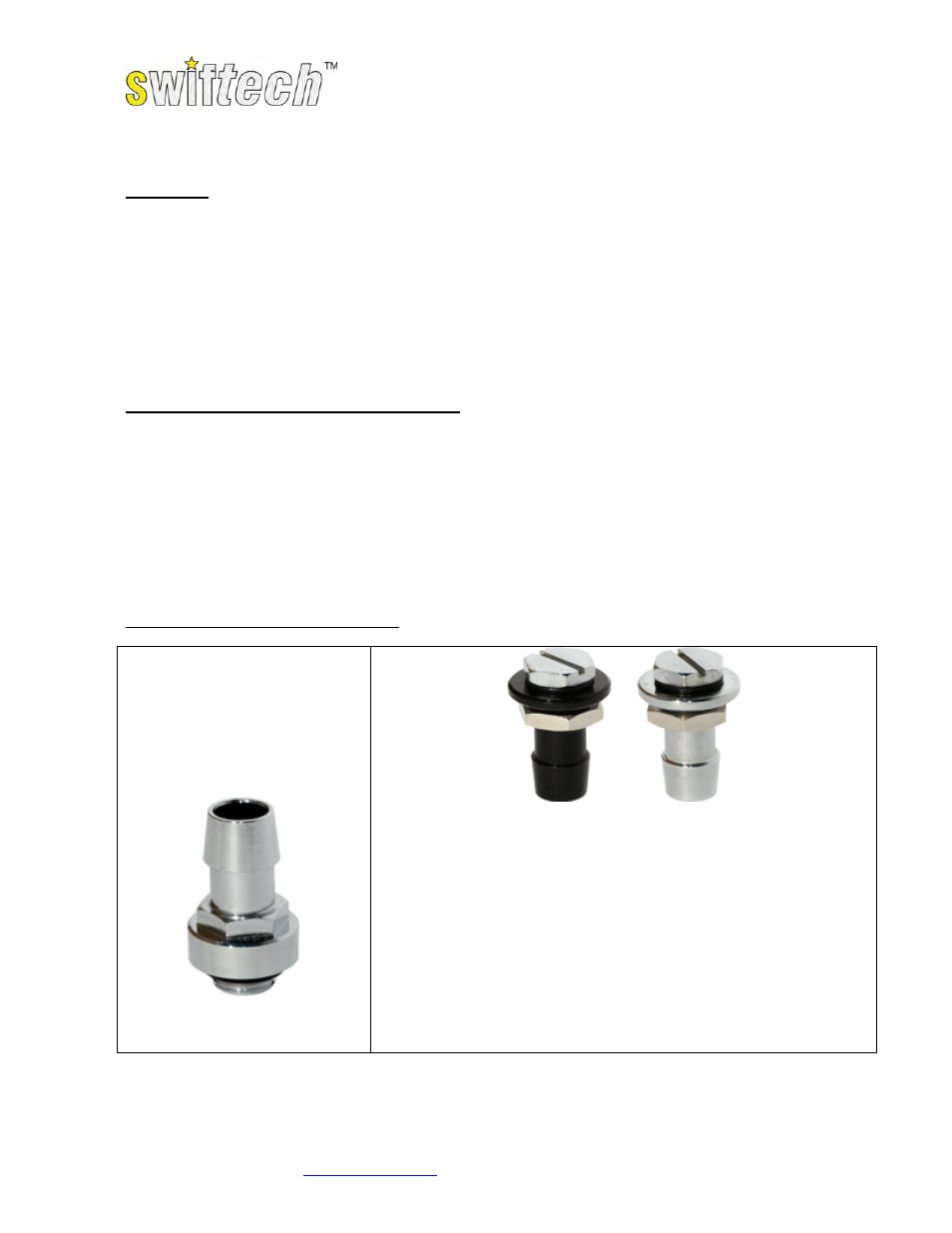

OPTIONAL COMPANION PRODUCTS
This high-polish chrome plated
brass 1/2" barb fitting is specially
designed to fit inside of the upper
fill-port when using the remote fill-
port fittings described to the right,
and/or to the alternate port for
various applications.
1/4" BSPP-1/2" RPF
1/2" RFP-AL
Black anodized
aluminum body
1/2" RFP-CPB
High polish
chrome plated
brass body
These panel-mount 1/2" remote fill-port fitting allows users to fill-up or
refill their system from outside of the PC, or alternatively be used as a
drain; the fitting connects with 1/2" tubing to either the MCRES Micro
Res port barb fitting or to a T-Line.
Two models are available, black anodized aluminum body, or high
polish chrome plated brass body.
