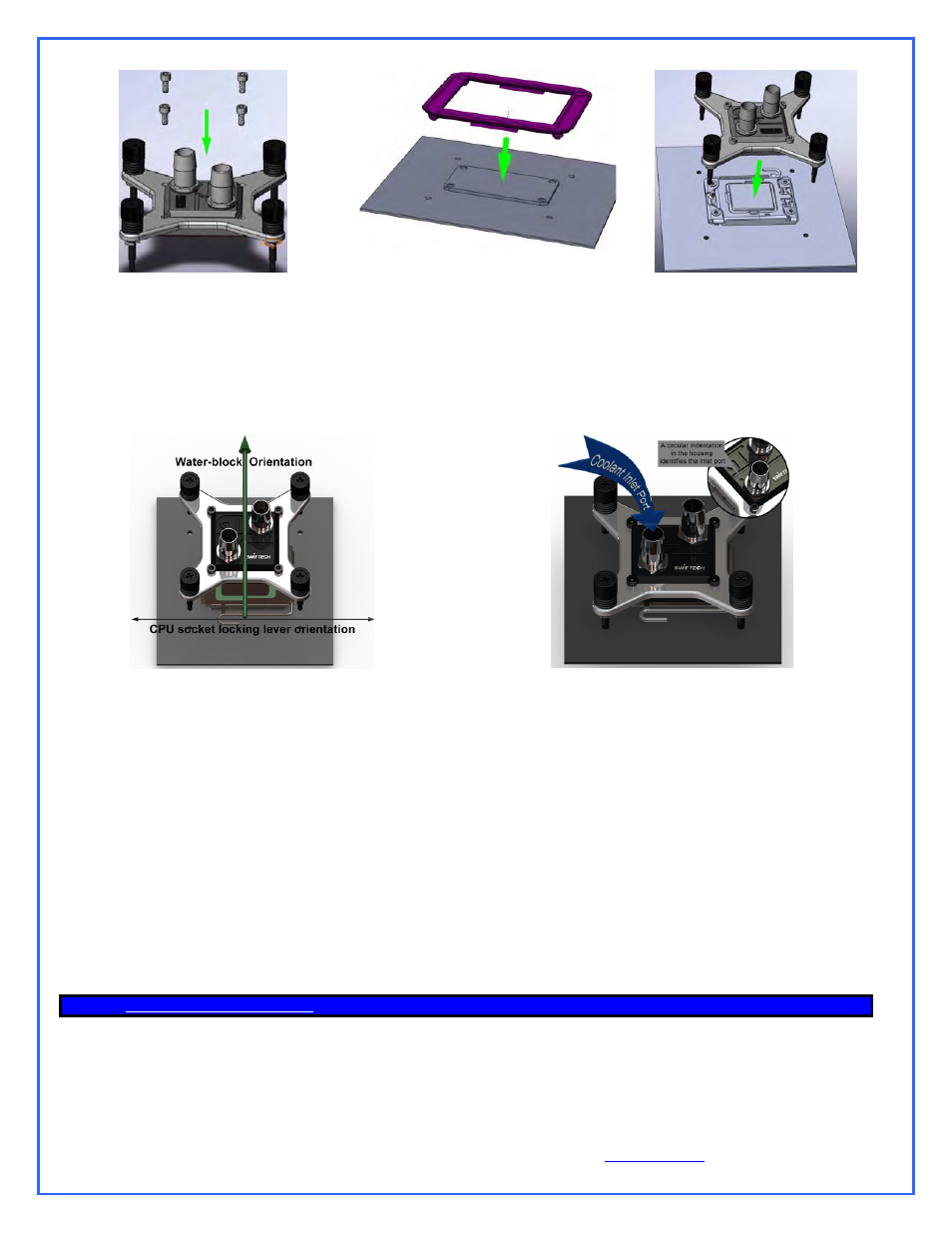

Figure 8
Figure 9 Figure 7
Fasten the hold-down plate assembly to the
Apogee™ GTZ water-block Peel-off the protective paper from all four
foam strips, and apply the back-plate against
the back of the motherboard. Perfect
centering can be achieved by slightly
pushing one of the plate standoffs into a
motherboard hole, then by squaring off the
plate with the opposite hole. Apply thermal grease to the CPU, then fasten
the Apogee™ GTZ to the motherboard by
gradually tightening all four screws in a cross
pattern until they bottom out.
Figure 11 Figure 10
When you are ready to install the tubing, you should first positively identify the
flow direction in your cooling system. The coolant should enter the water-block
inlet port which is identified by a circular indentation in the housing next to it. As with socket 775, and for optimal performance it is critical to
orient the water-block properly relative to the socket. As illustrated
above, the waterblock North-South axis should always be
perpendicular to the socket locking lever, irrespective of the socket
orientation relative to the motherboard.
‰ Installation with Intel® socket 1366 (Core™ i7) Server Solutions.
The Apogee GTZ socket 1366 hold down plate is fully compatible with Intel® socket 1366 (Core™ i7) server platforms and complies with Intel
specifications for server motherboards shipped with a Unified Retention System (URS). The Apogee GTZ simply bolts onto the existing URS
back-plate.
‰ Installation with Intel® legacy server platforms (socket 771, Xeon)
Please contact Swiftech Customer service for your free back-plate (see terms and conditions page 2)
‰ Installation with AMD® socket 754, 939, F and AM2
Please contact Swiftech Customer service for your free back-plate (see terms and conditions page 2)
3. R E - INSTALLING THE MOTHERBOARD
Now that the APOGEE water-block is securely fastened to the motherboard, go-ahead and install the motherboard into the chassis, following the
instructions provided in your motherboard installation guide.
