Installation with nVidia GeForce 6800 to 7900 series
& ATI X1800 and above
(four mounting holes)

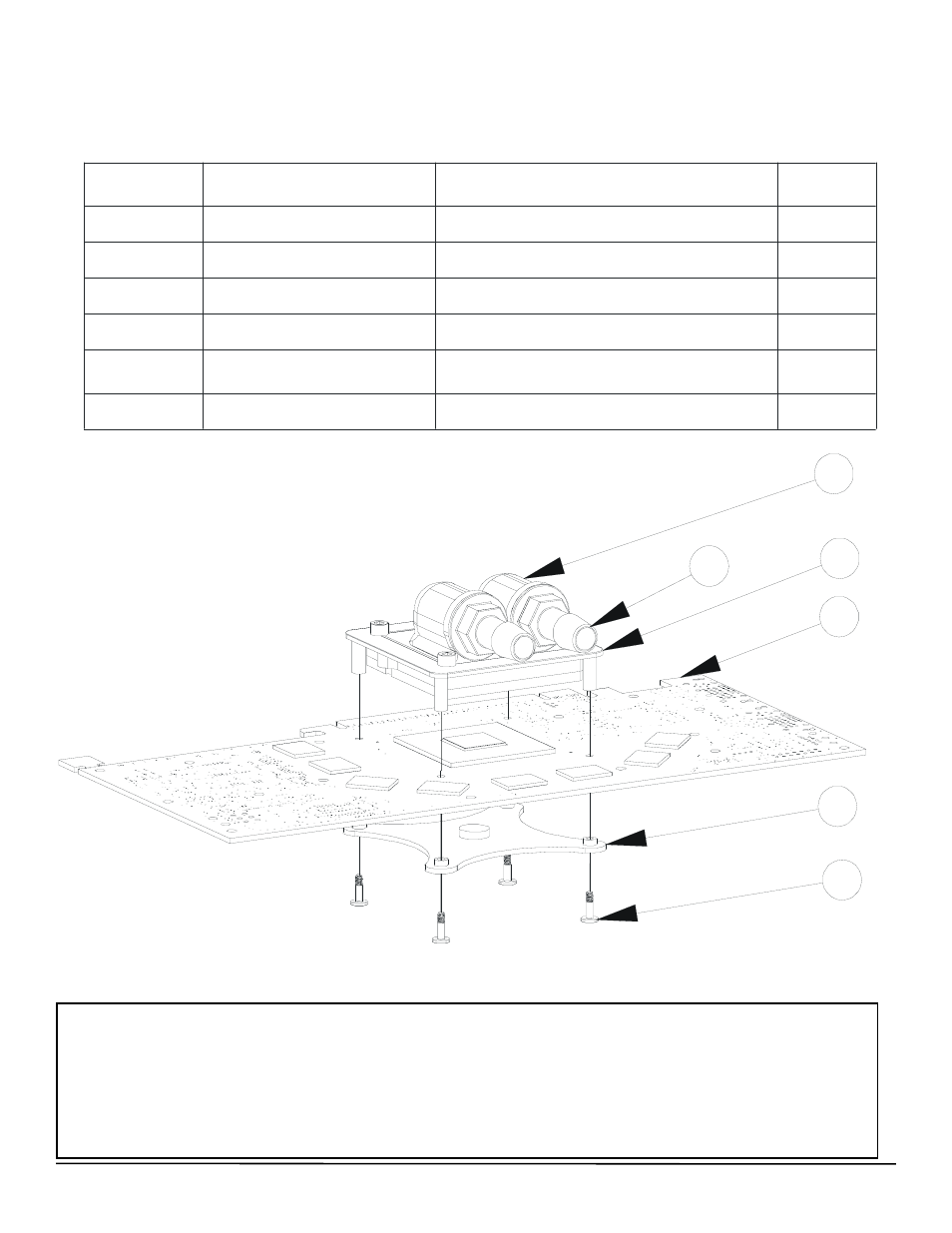

ITEM NO. PART NUMBER DESCRIPTION QTY
.
1 MCW60 WATER-BLOCK 1
2 1-4-NPSMx3-8-barb 1/4" NPSM X 3/8" Barb fitting 2
3 MCW60-HDP-R2 MCW60 HOLD-DOWN PLATE R2 1
4 MCW60-CB-R2 MCW60 CROSS-BRACKET R2 1
5 MCW60-2-56-PFH-CS 2-56 CUSTOM SCREW 4
6 REFERENCE VGA ADAPTER 1
1
3
2
6
4
5
•
Remove the existing heatsink
•
Clean off the GPU with a degreaser, and spread some of the included thermal compound over it.
•
Position the MCW60 over the GPU, aligning the 4 feet of the hold-down plate to the circuit board thru-holes
•
Insert screws #5 thru cross-bracket #4, thru the circuit board, and fasten them into the legs of hold-down plate #3,
tightening the screws gradually and in a cross pattern.
•
Installation of the water-block is now complete
