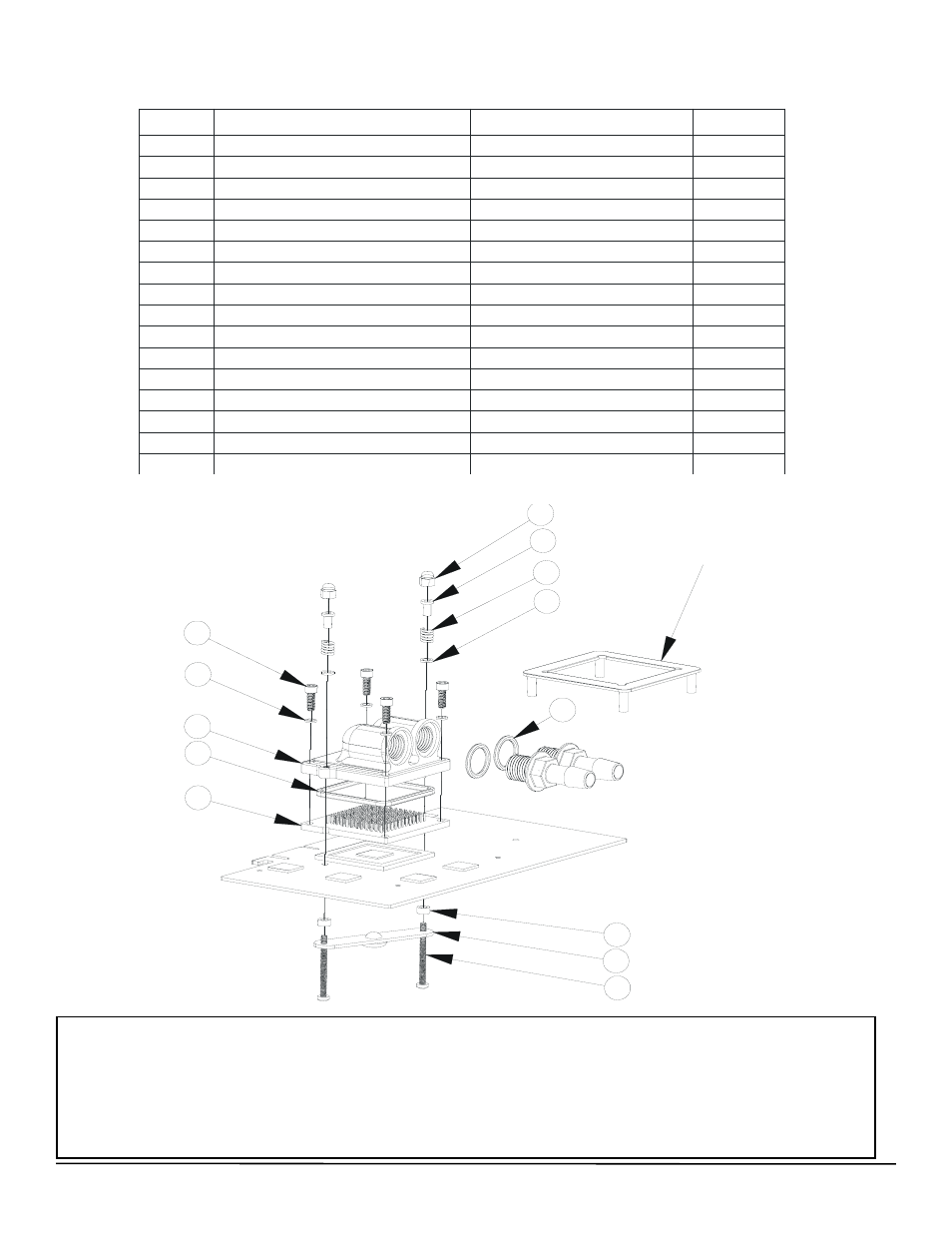

Installation with ATI Radeon (2 mounting holes)
ITEM
PART NUMBER DESCRIPTION QTY
.
1 mcw60-housing-rev2 1
2 MCW60 BASE PLATE 1
3 O-RING_3-32 Body o-ring 1
4 1-4-NPSMx3-8-barb 1/4" NPSM X 3/8" Barb fitting 2
5 O-RING-9557K473 1-4'" NPSM barb fitting O-Ring 2
6 92196A146 6-32 x 5/8 socket screw 4
7 stiffening-bar 1
8 4-40x1-25-philips-91400A124 4-40 x 1.25 philips screw 2
9 70700S spring 2
10 X800-XT 1
11 13ME028 Nylon metric flat washer 2
12 4-40-acorn-nut Nylon Nut 4-40 - 0500440CN 2
13 washer-240x140x0038 2
14 SCREW INSULATOR10SC004025 2
15 LOCK-WASHER#6 #6 lock washer x 0.030" 4
16 MCW60-HDP-R2 WCW60 HOLD-DOWN PLATE R2 1
17 - Discard
12
14
9
13
6
15
1
3
2
11
7
8
5
•
Remove the existing heatsink
•
Clean off the GPU with a degreaser, and spread some of the included thermal compound over it.
•
Install the MCW60 onto the GPU
•
Install screws #8, back-plate #7 and nylon spacers #11 thru the circuit board and the MCW60 water-block.
•
Install washers #13, springs #9, compression limiter #9 and acorn nut #12, then gradually and alternatively fasten acorn
nuts (#12) until they bottom out.
•
Installation of the water-block is now complete.
