Installation with ATI Radeon (2 mounting holes)
ITEM
PART NUMBER DESCRIPTION QTY
.
1
4-40x1-25-philips-9140
0A124
4-40 x 1.25 philips screw 2
2 MCW6
0 MCW60 Waterblock 1
3 NPSM3-8 1/4" NPSM X 3/8" Barb fitting 2
4 MCW6-HD HOLD-DOWN PLATE 1
5 13ME028 Nylon metric flat washer 2
6 MCW50-ATI-Stiffen ATI Radeon stiffening brace 1
7 70700S spring 2
8 washer nylon 250x32 washer 250x117x32 - 16FW004032 2
9 4-40-acorn-nut Nylon Nut 4-40 - 0500440CN 2
2
3
4
5
6
7
9
8
1
•
Remove the existing heatsink
•
Clean off the GPU with a degreaser, and spread some of the included thermal compound over it.
•
Screw the two 4-40 x 1 1/4” philips screws (#1) into the water-block as shown above
•
Install the MCW60 onto the GPU
•

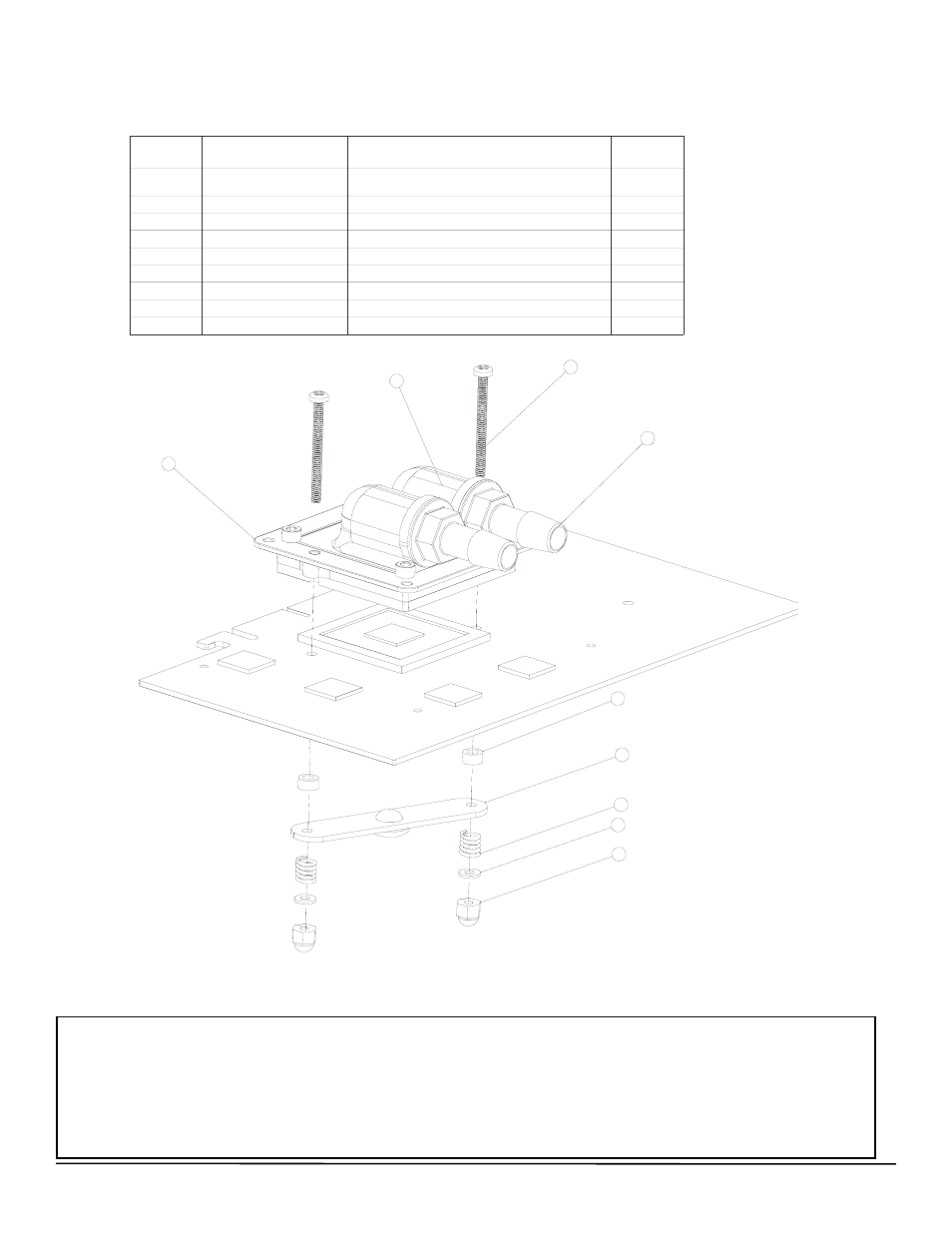

Install the hardware as shown in the schematic
•
Gradually and alternatively fasten the two nuts (#9) until they bottom out.
•
Installation of the water-block is now complete.
