Swiftech MCW55 User Manual
Page 2

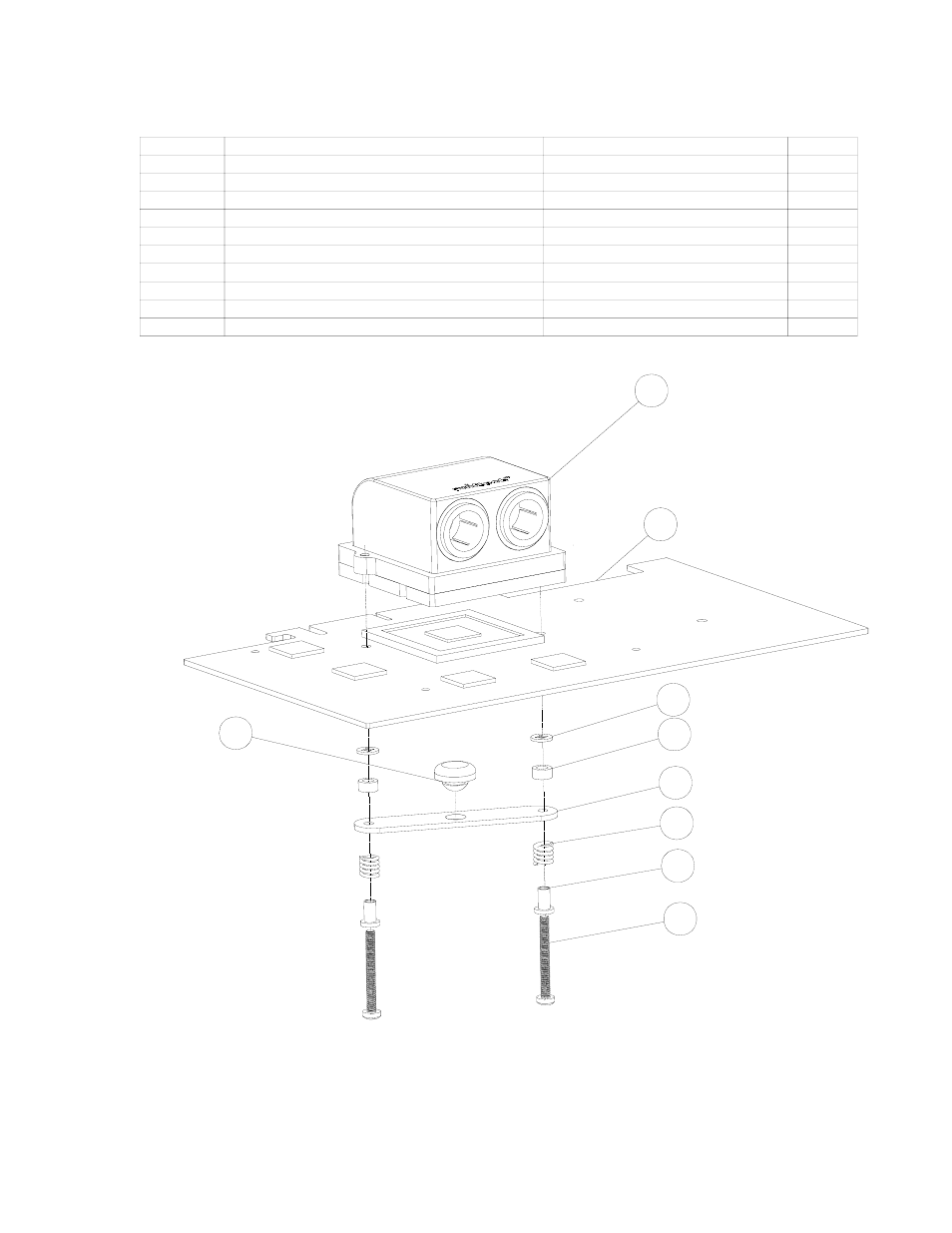

Setup diagram for ATI® Radeon series adapters
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
MCW55
WATERBLOCK
1
3
92196A106
4-40 x 1/4" S/S socket screw
2
7
X800-XT
ATI RADEON VGA
1
8
stiffening-bar
Stiffening bar
1
9
9309k13-stemplug
Stem plug
1
10
4-40 nylon retaining washer
4-40 nylon retaining washer
2
11
4-40x1-philips-91400A119
Philips screw
2
12
70700S
spring
2
13
13ME028
Black nylon spacer
2
18
SCREW INSULATOR10SC004025
Nylon tension limiter
2
2
7
10
13
8
12
18
11
9
Figure 2
Copyright Swiftech 2005 – Subject to revision without notice - Revision date: 9-15-05
Swiftech Inc., 1703 E. 28
th
St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769
Page 2 of 2
