Swiftech MCW6000 2 64 User Manual

Page 2

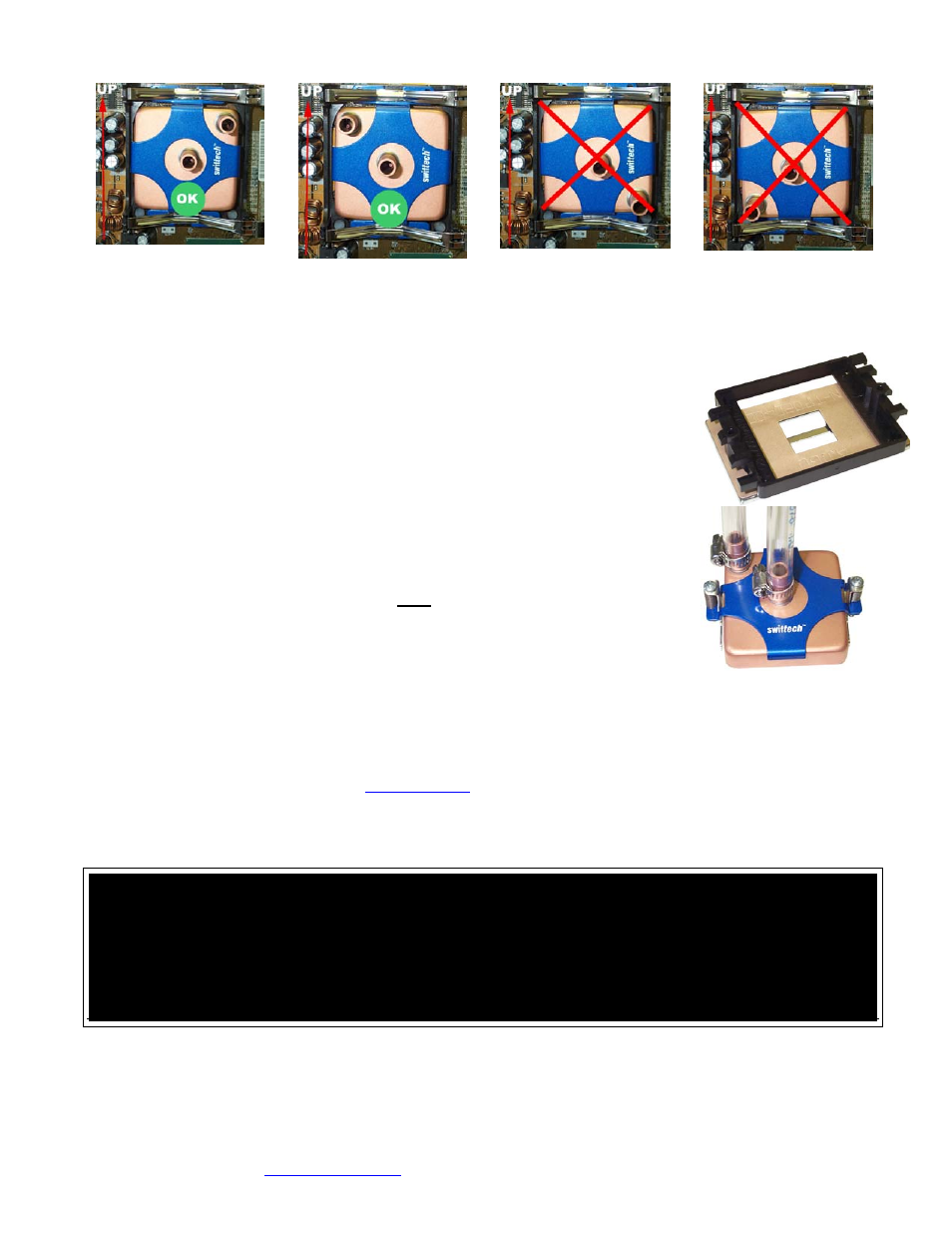

Water-block orientation

For ease of operations during bleeding, the outlet should always be at the highest point (while system is standing upright)

3. Water-block

installation

The MCW6000™ series water-block simply bolt onto AMD retention frame as shown in figure 1, using the enclosed spring loaded screws. The
tension limiter is designed to provide appropriate tension to the springs. Do not over-tighten the springs.

Retention frame issues

Most K8 compatible motherboards are shipped with AMD’s validated plastic retention frame and metallic
back-plate. In an effort to spare unnecessary costs to the majority of users, Swiftech does not include these
items with the MCW6000 series water-blocks.
Some motherboards however use non-standard retention systems, and plastic back-plates instead of the
recommended metallic plates described in AMD’s Athlon™ 64 Processor Thermal Design Guide. For this
reason, Swiftech offers an optional retention frame and back plate made to AMD standards, under Part
# AJ00172 shown to the right.

Tubes attached with the included
worm-drive clamps

Connecting the water-block(s) to the cooling circuit:

Carefully identify the direction of the flow in your circuit. For the MCW6000 to operate properly, the fitting
located at the center of the water-block MUST BE USED AS THE INLET.

6.

Attaching the tubes:

The MCW6000™ series ship with worm-drive type hose clamps. Secure the tubes as shown in the picture to
the right (shown below with an AMD bracket), and tighten firmly.

7. Type

Coolant:

Being entirely made of copper, the MCW6000™ series may be used with pure water, and do not necessitate
the use of anti-corrosion agents. The use of an algaecide is nonetheless recommended in any liquid cooling
system, and our HydrX™ additive also performs such function.

8. Final

inspection:

Once the installation is completed, it is always a good idea to test the circuit for leaks, prior to powering up the
computer. Do not test the water-block using city water pressure. This will bow the top of the housing and
render the block unusable (and will void your warranty). Maximum pressure allowable for testing is 25 psi
(1.7 bar)

Troubleshooting help is available on our web site at

www.swiftnets.com

, or by calling customer support at

562-595-8009.
