2. Installation

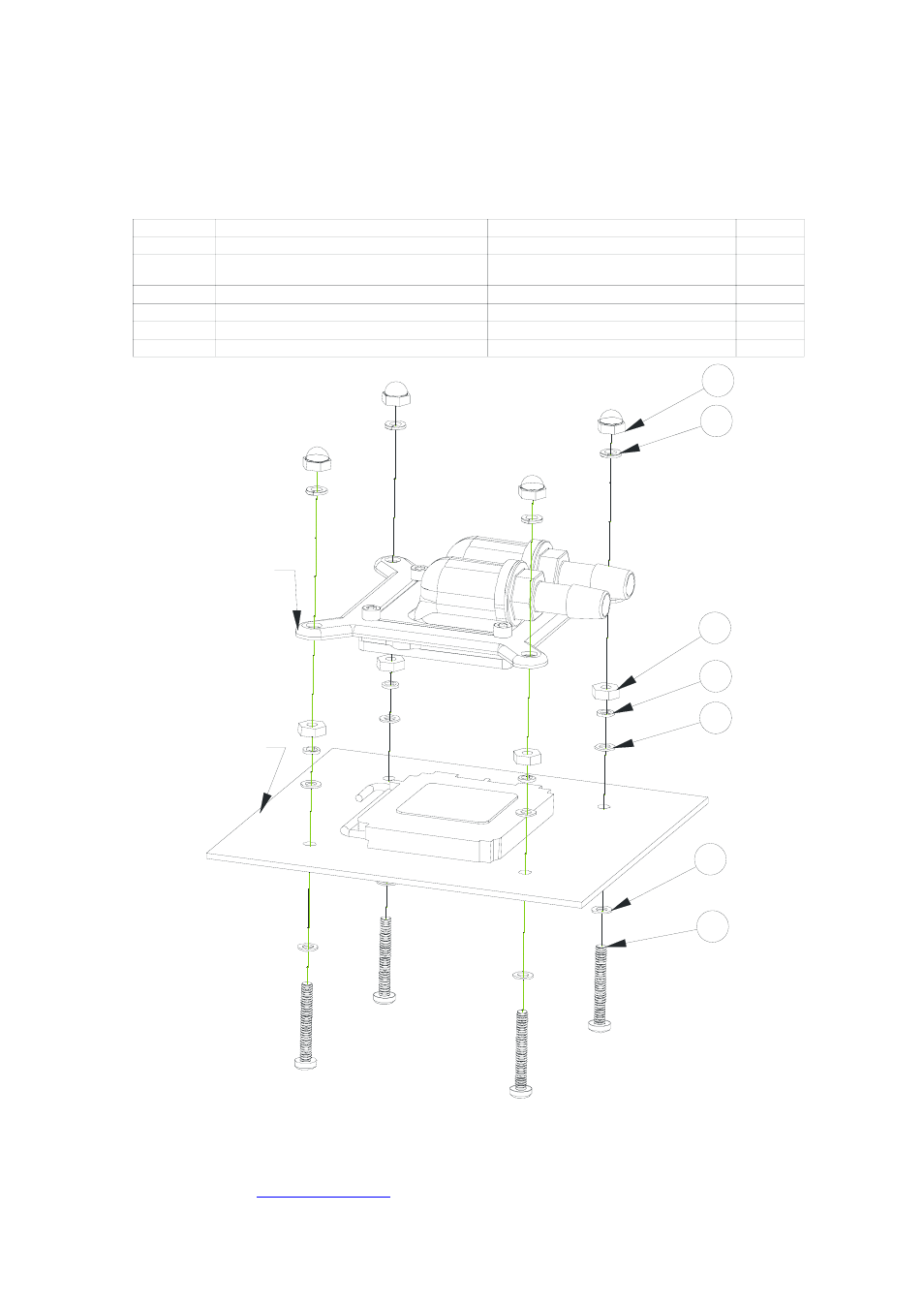

□ Firmly fasten the 4 posts (6-32 x 1” Philips screw Item #5) to the motherboard with the provided hardware.
□ Install the water-block assembly by fastening the provided Acorns nuts and washers in a cross pattern.
□ Note of caution: do not mix Item 2 Heavy-duty lock-washer #6 x 0.040 and Item 4 lock-washer #6 x 0.030. The heavy-duty lock-
washer must be used to fasten the water-block, whereas the regular lock-washer #6 x 0.030 is used with the motherboard posts.
ITEM NO. PART NUMBER DESCRIPTION QTY
.
1 6-32-Acorn-nut 6-32 Acorn nut 4
2 washer-0148x0266x0040-91007A619 Heavy duty Lock Washer #6 x 0.040 4
3 6-32-nut 6-32 nut 4
4 LOCK-WASHER#6 #6 lock washer x 0.030" 4
5 FW140X250X0215FB BLK black fiber washer 8
6 90272A153-6-32x1.00-philips 6-32 X 1" Philips Screw 4
1
3
4
5
5
6
Apogee 1U
Water-block
Motherboard
2
(Heavy Duty)
