OM-SBC-G 7
Installation
5. Factory-Stacked Units
This section is applicable only if you are installing factory-stacked units.
Installing stacked steamers is similar to installing a single unit. The steamers are
stacked and assembled at the factory and delivered with the water connections
and drain hoses required for a single point connection.
a. Water Connection
The same water supply connection is used for both units. At the water inlet
valve a 3/4 inch female NH connector (garden hose type) is used for the
water supply.
b. Electrical Supply Connection
Separate electrical connections will be required for each steamer to be
stacked. Each steamer unit must have it’s own branch circuit protection.
c. Gas Connection
A single gas connection is required for both steamers. Gas supply must be
adequate under all conditions as listed on page 6.

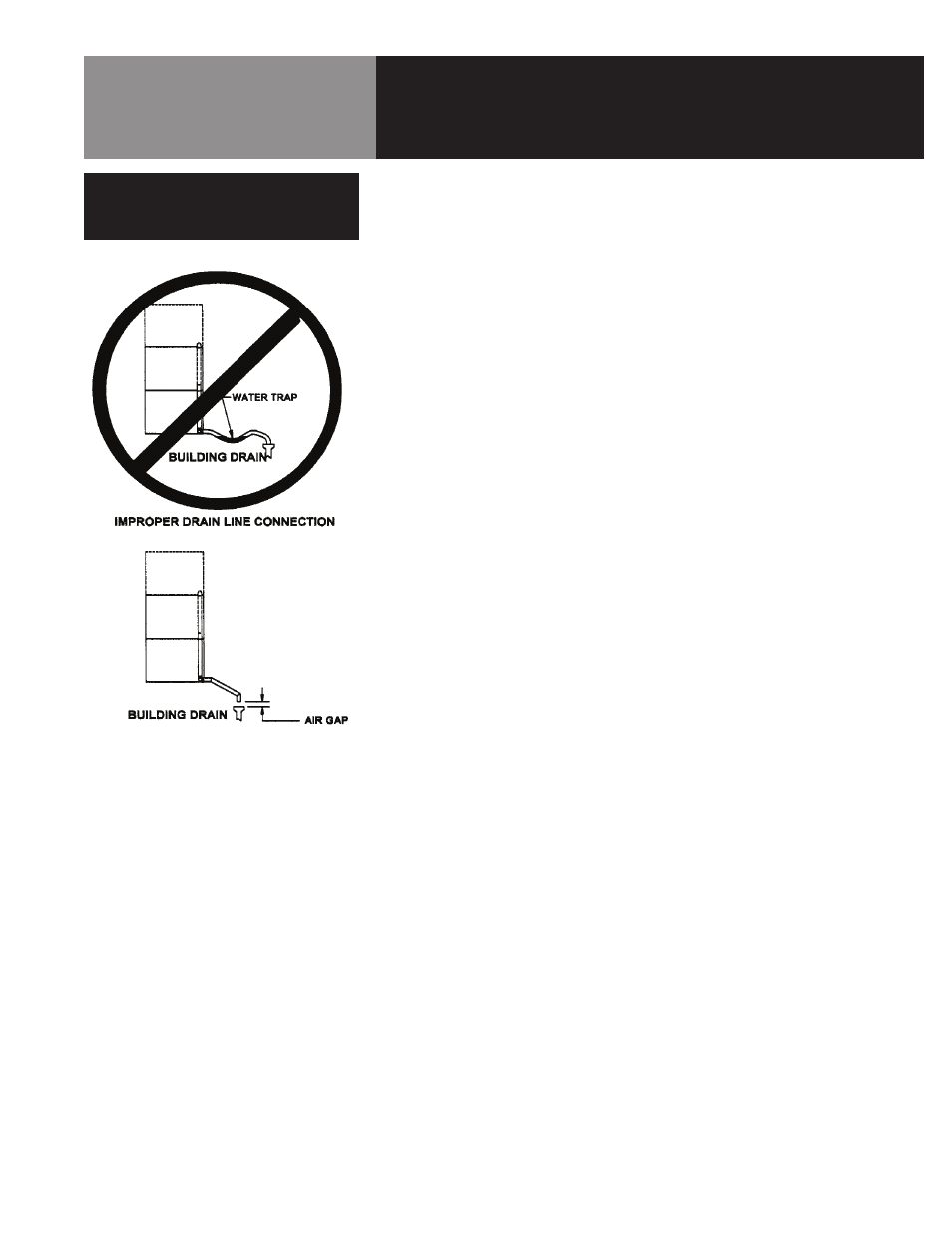

d. Drain Connection
Steamers must be leveled front to back, and pitched to the front (maximum
1/4 inch) by adjusting the bullet feet on the cabinet or stand base.
For all factory-stacked steamers, a 2-1/2 inch ID hose is attached to the
unit drain. It must be rated for boiling water.
6. Counter-Mounted Units
This section is applicable if the steamer will be mounted to a counter. All four
edges of the bottom of the steamer must be sealed with RTV to the counter if the
4 inch legs are not used. Counter must be made of a noncombustible material
such as metal or tile.
WARNING
DO NOT STACK STEAMERS WHEN
LEGS ARE USED.
