15
Operation
Standard Control
HEAT CUTOFF CIRCUIT BREAKER
1
2
6
7
3
4
5
8
10
9
11
12
13
14

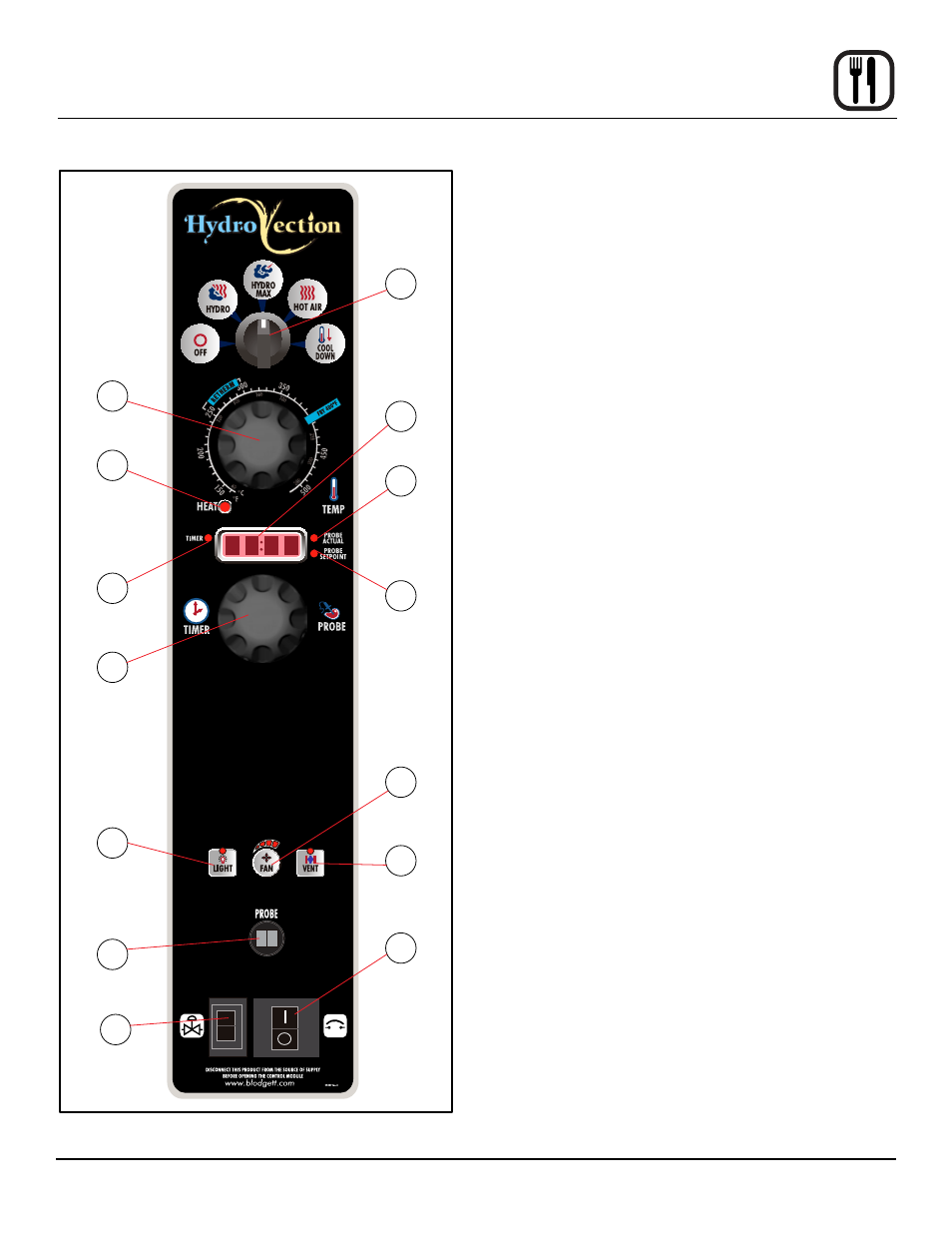

Figure 8
COnTROLS IdEnTIFICaTIOn
1. MODE SELECTOR SWITCH - turns power to the
oven on or off. Allows selection of Hydro, Hydro Max,
Hot Air, or Cool Down Modes.
2. DISPLAY - displays time and temperature informa-
tion.
3. TEMPERATURE DIAL - used to set desired cooking
temperature.
4. HEAT LAMP - lights when the oven is calling for heat
5. TIMER LED - lights when the cook time is displayed
6. PROBE ACTUAL LED - lights when the actual probe
temperature is displayed
7. PROBE SETPOINT LED - lights when the core set-
point temperature is displayed
8. TIMER/PROBE KNOB - use to select and set either
cook time or probe temperature
9. LIGHTS KEY - press to turn the oven lights on and off
10. FAN SPEED KEY - used to select fan speed.
11. CAVITY VENT KEY - used to open or close vent to
release humidity from cavity.
12. PROBE CONNECTION - used to connect the core
temperature probe to the control.
13. CIRCUIT BREAKER - Used to turn power to the unit
on or off.
14. HEAT CUTOFF - used to turn gas on or off (HV-100G
only)
