Installation, Stacking – Blodgett HV-100G User Manual
Page 10
8
Installation
Stacking
WaRnInG!!
Stacking should be performed by qualified
installation personnel only. The ovens are
heavy. Take care to use proper tools and tech-
niques when lifting and stacking units.
1. Attach the legs or casters to the bottom oven.
2. Place the top oven on the bottom oven. Be sure all
four sides are flush.
3. Bolt the two ovens together from behind using the
stacking brackets.
Stacking
Bracket
Stacking
Bracket

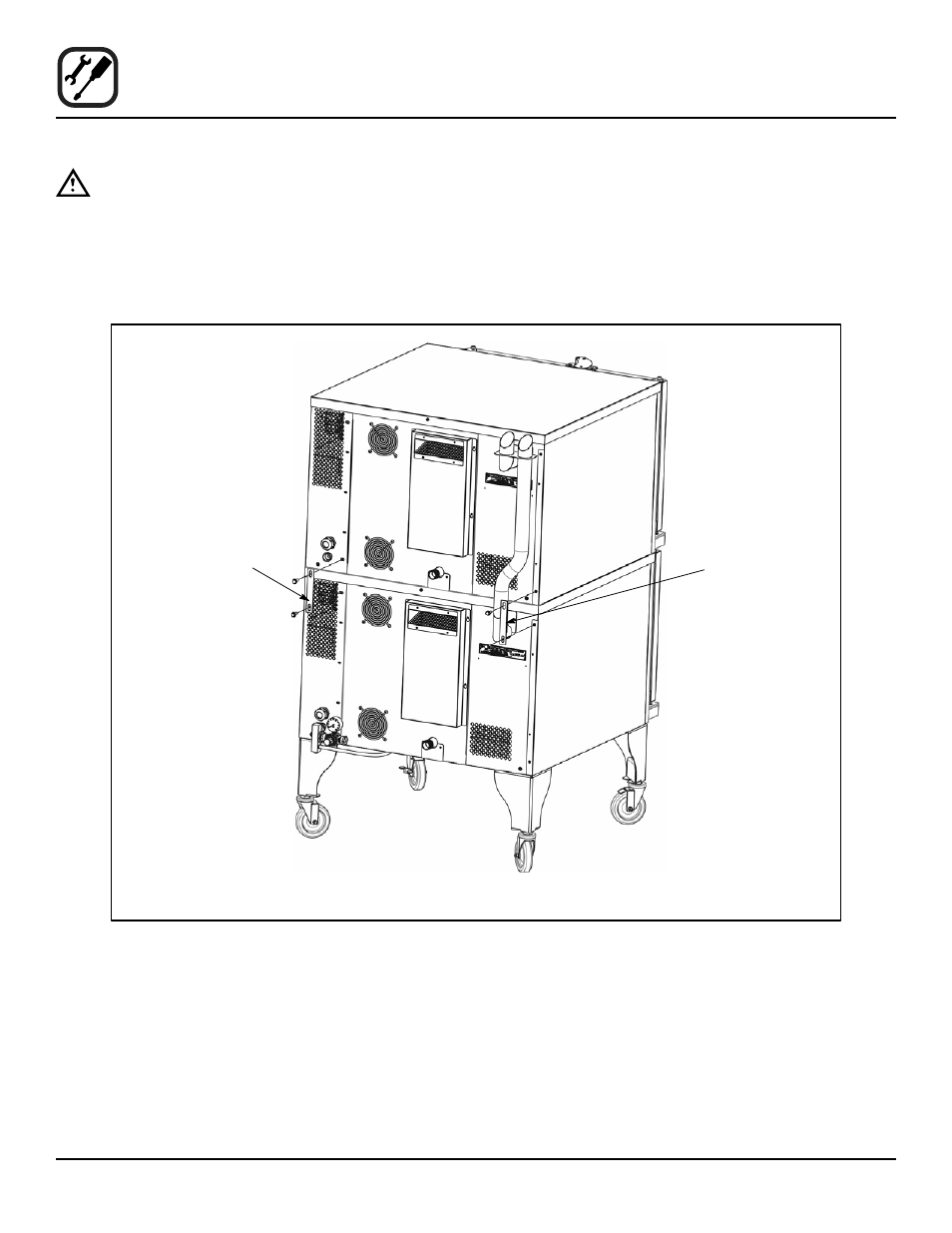

Rear View HV-100E
Figure 5
