SSI-D Solid State Infinite Control with Digital Timer
CIRCUIT
BREAKER
1
3
4
2
5
6
7
8
Figure 10

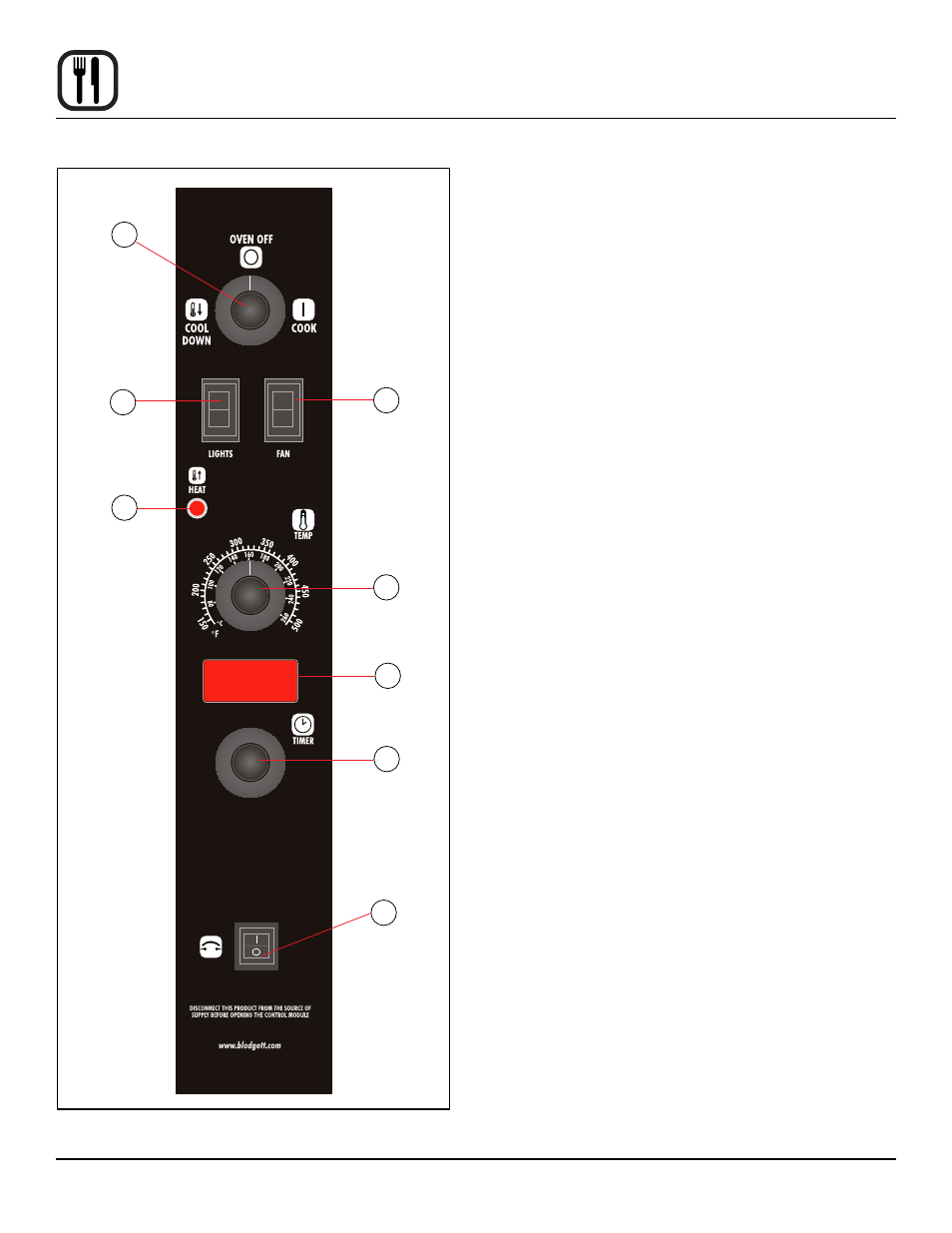

controL deScriPtion
1. SELECTOR SWITCH - controls power to the oven for
cook or cool down.
2. BLOWER SWITCH - controls blower speed, either hi
or lo.
3. LIGHTS SWITCH - controls interior lights.
4. OVEN READY LIGHT - when lit indicates burner op-
eration. When the light goes out the oven has reached
operating temperature.
5. SOLID STATE THERMOSTAT - allows an infinite se-
lection of temperatures from 150-500°F (66-260°C).
6. DISPLAY - displays cook time
7. TIMER DIAL - used to enter desired cook time
8. HEAT CUTOFF - circuit breaker
oPeration
1. Turn the SELECTOR Switch (1) to COOK. The blower
and control compartment cooling fan operate and are
controlled automatically by the action of the doors.
The display reads 00:00.
2. Set BLOWER Switch (2) to the desired speed.
3. Set the SOLID STATE THERMOSTAT (5) to the de-
sired temperature.
4. Preheat until the OVEN READY LIGHT (4) goes out.
5. Load product into the oven. Rotate the dial (7) to the
desired time. The timer will begin to countdown after
approximately 1 second.
6. When the buzzer sounds, remove the product from
the oven. Turn the TIMER dial (7) to silence the buzz-
er.
7. Turn the SELECTOR Switch (1) to OVEN OFF.
