AT-ARW256E User’s Guide
32
The apply button will temporarily save this connection. To make the change permanent you need
to click on Save Settings (at the side of the page). At the system commands page, click on Save
All.
5.3.3 Dynamic Routing
Dynamic Routing allows the Wireless ADSL Router to automatically adjust to physical changes in
the network. The Wireless ADSL Router, using the RIP protocol, determines the network packets’
route based on the fewest number of hops between the source and the destination. The RIP
protocol regularly broadcasts routing information to other Wireless ADSL Routers on the network.
The Direction determines the direction that RIP routes will be updated. Selecting In means that
the Wireless ADSL Router will only incorporate received RIP information. Selecting Out means
that the Wireless ADSL Router will only send out RIP information. Selecting both means that the
Wireless ADSL Router will incorporate received RIP information and send out updated RIP
information.
The protocol is dependent upon the entire network. Most networks support Rip v1. If RIP v1 is
selected, routing data will be sent in RIP v1 format. If Rip V2 is selected, routing data will be sent
in RIP v2 format using subnet broadcasting. If Rip V1 Compatible is selected, routing data will be
sent in RIP v2 format using multicasting.
To enable Dynamic Routing, click Advanced and under Advanced, select Dynamic Routing.

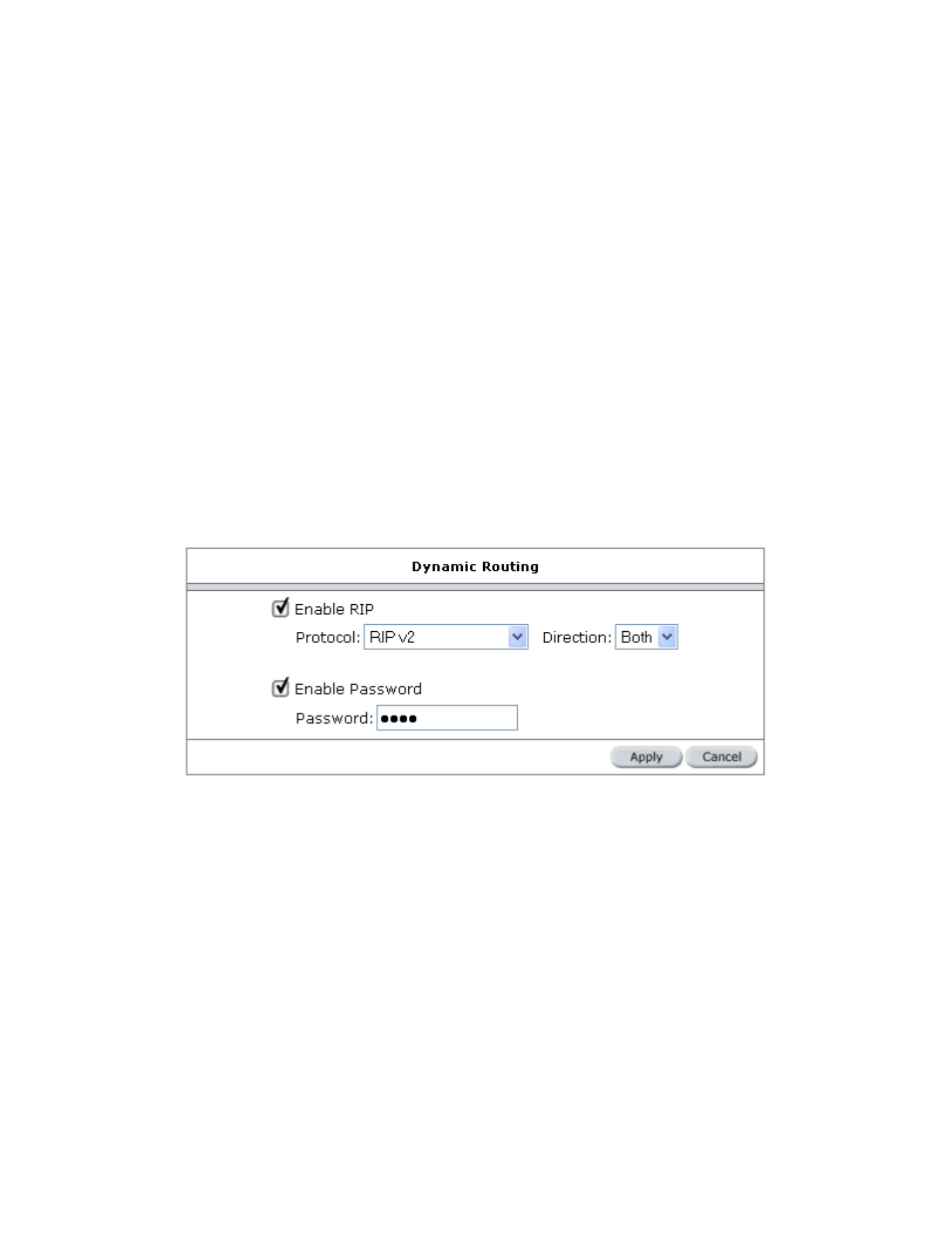

Figure 24 illustrates a typical Dynamic Route.
Figure 24 (Dynamic Routing)
The apply button will temporarily save this connection. To make the change permanent you need
to click on Save Settings (at the side of the page). At the system commands page, click on Save
All.
