AT-ARW256E User’s Guide
30
5.2.7 UPnP
UPnP NAT and Firewall Traversal allow traffic to pass-thru the Wireless ADSL Router for
applications using the UPnP protocol. This feature requires one active DSL connection. In
presence of multiple DSL connections, select the one over, which the incoming traffic will be
present, for example the default Internet connection.
To enable UPnP, you must first have a WAN connection configured. Once a WAN connection is
configured, click Advanced and under Advanced, select UPnP. This will bring up the screen
shown in Figure 20. You must enable UPnP and then select which connection will utilize UPnP.
In this case the PPPoA connection is enabled.

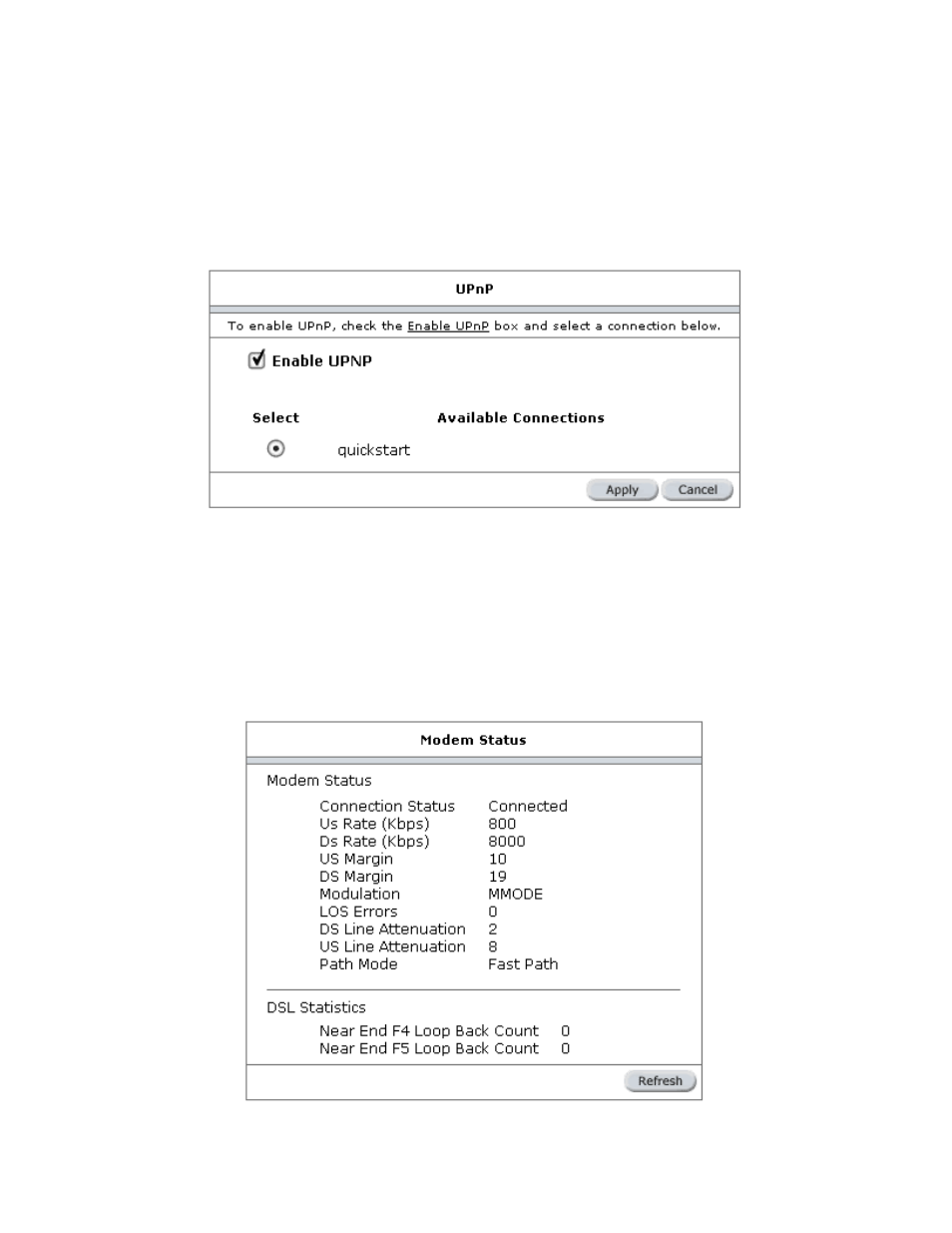

Figure 20 (UPNP screen)
The apply button will temporarily save this connection. To make the change permanent you need
to click on Save Settings (at the side of the page). At the system commands page, click on Save
All.
5.2.8 Modem
Status
This screen will display the Modem status and DSL statistics
Figure 21 (Modem Status screen)
