AT-ARW256E User’s Guide
31
5.3 Routes
5.3.1 Show Routes
Routing Table shows the information used by routers when making packet forwarding decisions.
Packets are routed according to the packet's destination IP address.

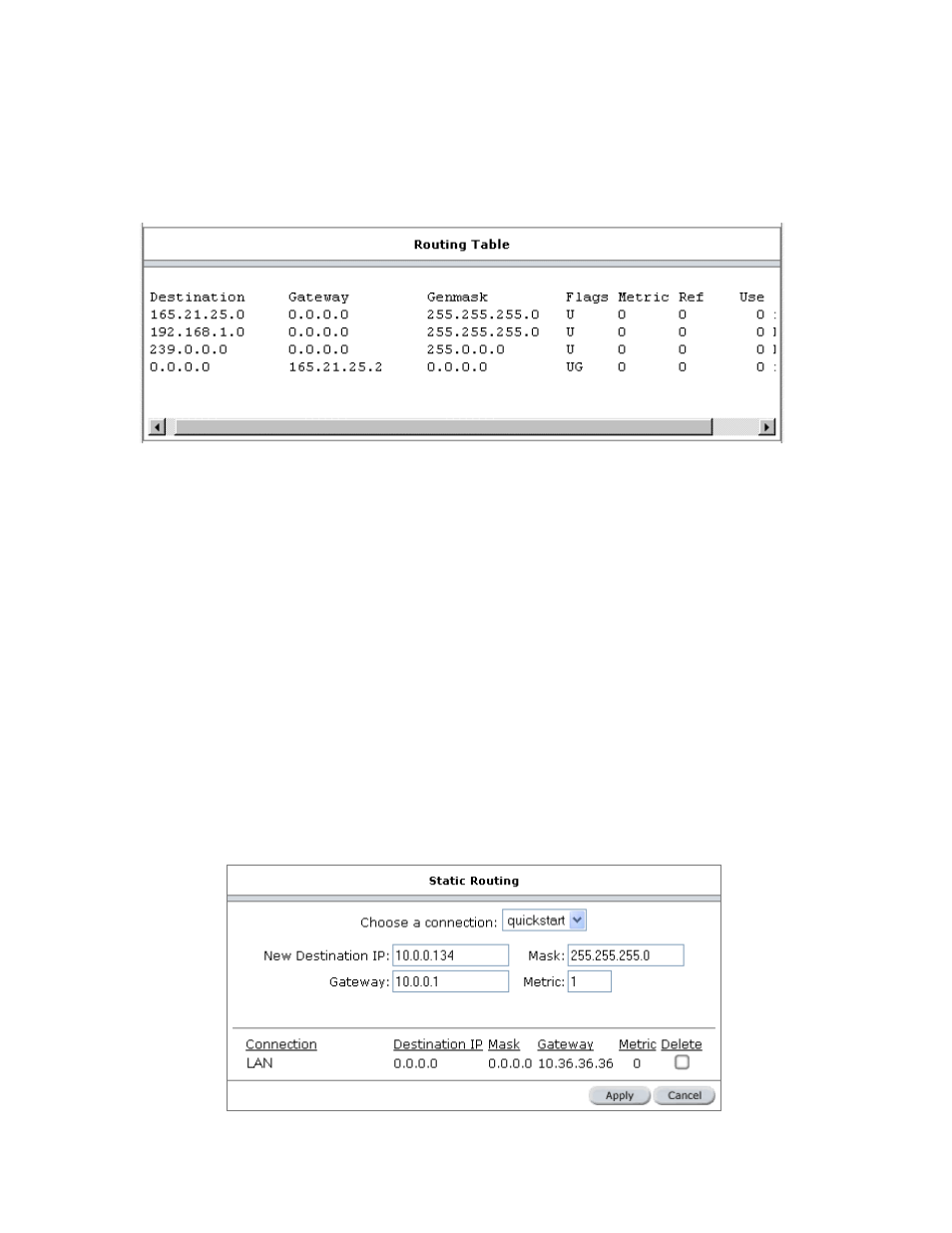

Figure 22 (Modem Status screen)
5.3.2 Static
Routing
If the Wireless ADSL Router is connected to more than one network, you may need to set up a
static route between them. A static route is a pre-defined pathway that network information must
travel to reach a specific host or network. You can use static routing to allow different IP domain
users to access the Internet through the Wireless ADSL Router.
The New Destination IP is the address of the remote LAN network or host to which you want to
assign a static route. Enter the IP address of the host for which you wish to create a static route
here. For a standard Class C IP domain, the network address is the first three fields of the New
Destination IP, while the last field should be 0. The Subnet Mask identifies which portion of an IP
address is the network portion, and which portion is the host portion. For a full Class C Subnet,
the Subnet Mask is 255.255.255.0. The Gateway IP address should be the IP address of the
gateway device that allows for contact between the Gateway and the remote network or host.
The Hop Count determines the maximum number of steps between network nodes that data
packets will travel. A node is any device on the network (such as a router or switch)
To enable Static Routing, from the Home screen, click Advanced and under Advanced, select
Static Routing. Figure 23 illustrates a typical Static Route
Figure 23 (Static Routing)
