Allied Telesis AT-S84 - Manual (Page 282)

Chapter 26: 802.1x Network Access Control
282 Section II: Web Browser Interface
Configuring 802.1x Network Access Control
To configure 802.1x network access control, perform the following
procedure:
1. From the Advanced Config menu, select 802.1x.
The 802.1x Configuration page opens, as shown in Figure 88.

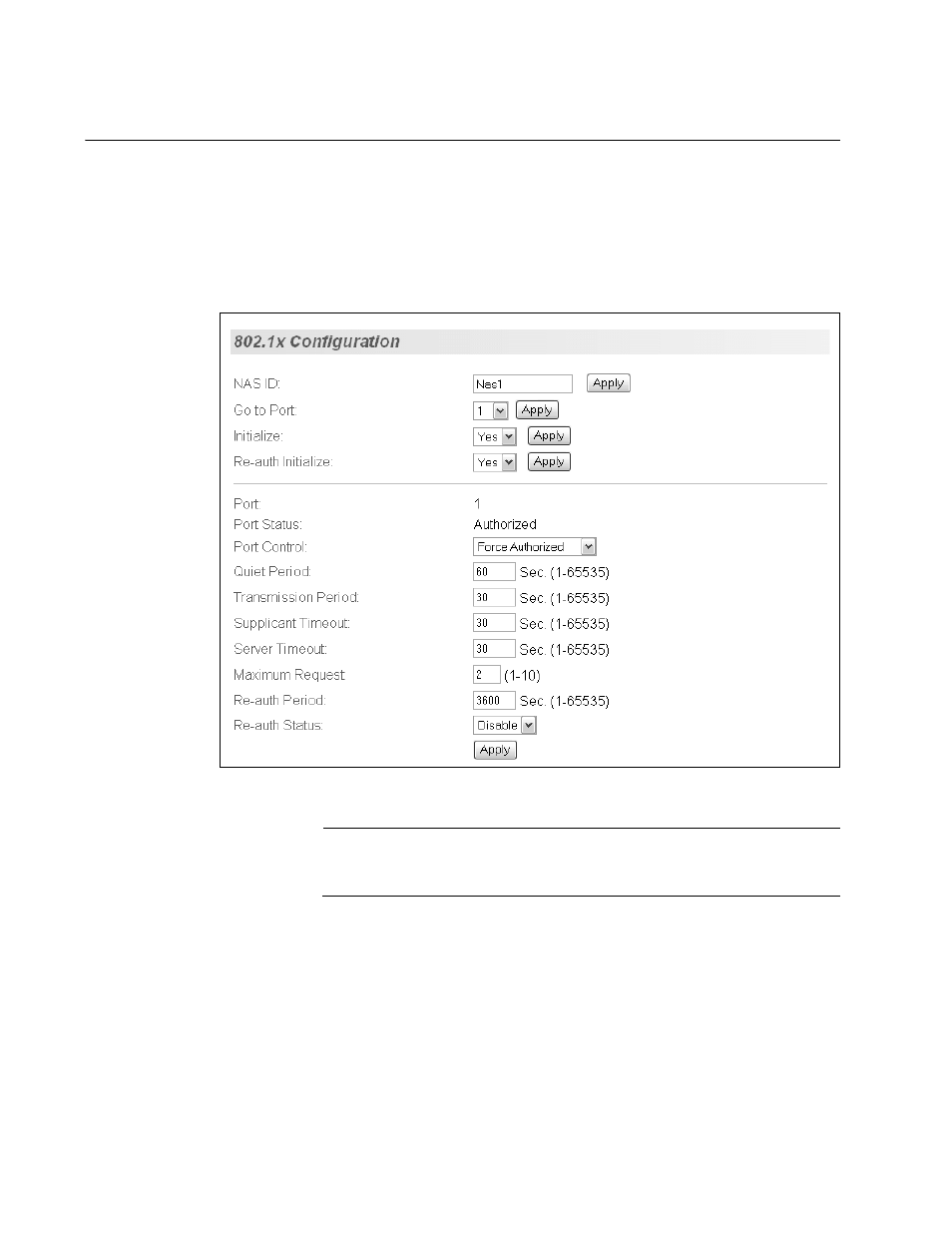

Figure 88. 802.1x Configuration Page
Note
The Initialize and Re-auth Initialize parameters are described in
Steps 5 and 6, respectively.
2. To select a port, do the following:
a. Click Go To Port and select the port you want to configure from
the list. You can configure only one port at a time.
b. Click Apply.
The current settings for the selected port are displayed.
