AT-CV120x Two-Slot Chassis Installation Guide
35
Installing an AT-CM70S Line Card
The AT-CM70S line card is a double-slot line card which takes both line
card slots in the AT-CV120x chassis.
Caution
Be sure to observe all standard electrostatic discharge (ESD)
precautions, such as wearing an antistatic wrist strap, to avoid
damaging the device. A line card can be damaged by static
electricity.
To install an AT-CM70S line card, perform the following procedure:
1. Remove the AT-CM70S line card from its shipping package and store
the package in a safe place.
2. Set the line card’s DIP switches if necessary.
For more information on the DIP switch settings, refer to the
documentation shipped with your line card.
Note
You must use the original package if you need to return the unit to
Allied Telesis.
3. If installed, remove the AT-CV5PNL1 blank slot cover from both line
card slots.
Keep the blank slot covers in a safe area in case you remove the line
card. The blank slot covers are used to keep dust from getting into the
chassis and maintains proper airflow, cooling, and ventilation through-
out the chassis.

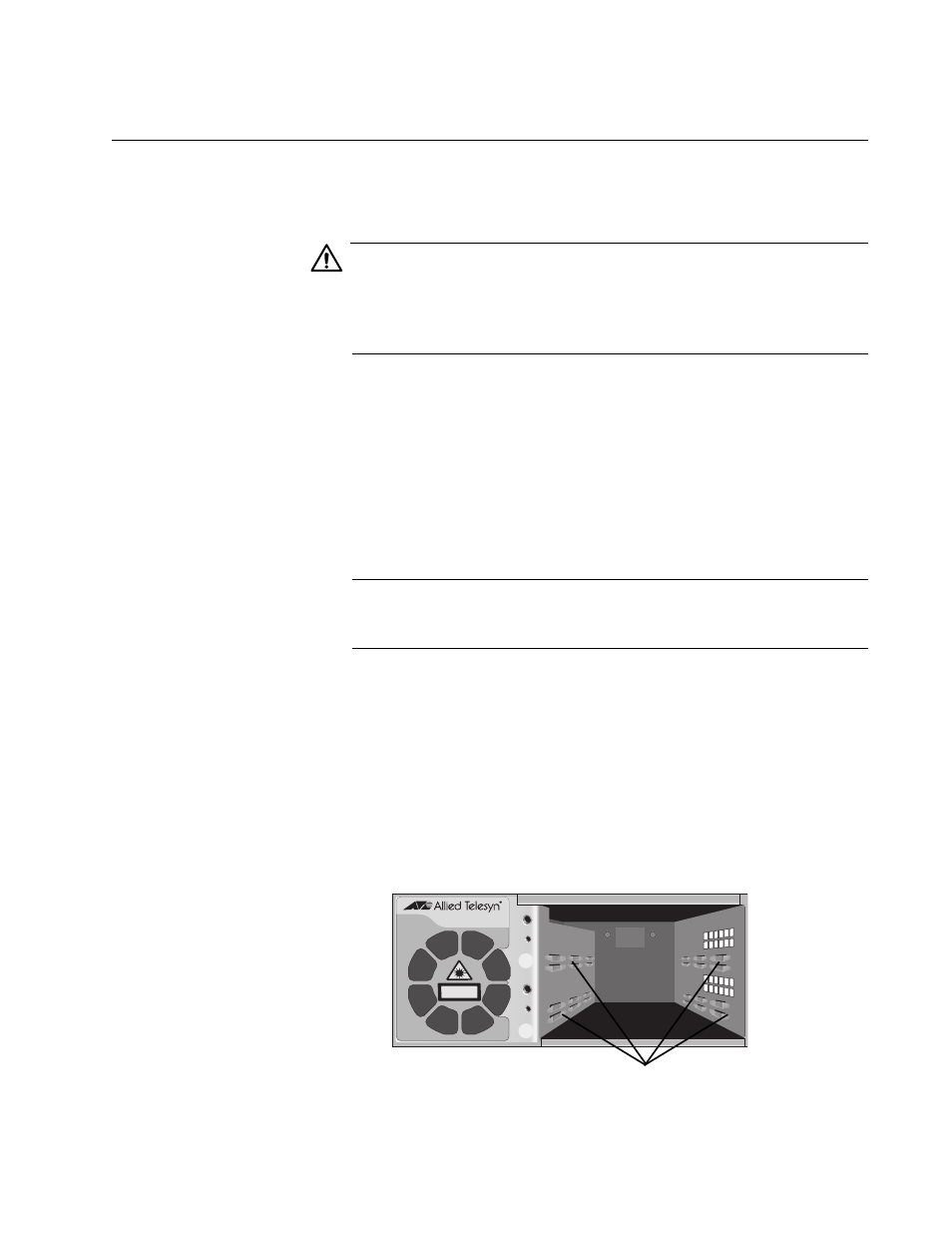

4. Locate the alignment guides on both sides of the slot, as shown in
Figure 15.
Figure 15. Location of the Alignment Guides
543
AT-CV1200
CLASS 1 LASER PRODUCT
2
1
Alignment Guides
