Chapter 1: Overview
16
Features
The AT-CV1200 and AT-CV1203 chassis look physically the same, as
shown in Figure 1. These chassis are dual-slot chassis for Converteon
media converter line cards and the AT-CV5M0x Management Card. You
can use the chassis as an unmanaged device by installing line cards in
both slots, or you can add management capability with the AT-CV5M0x
Management Card. The management card gives you management control
over the line card located in the other slot.

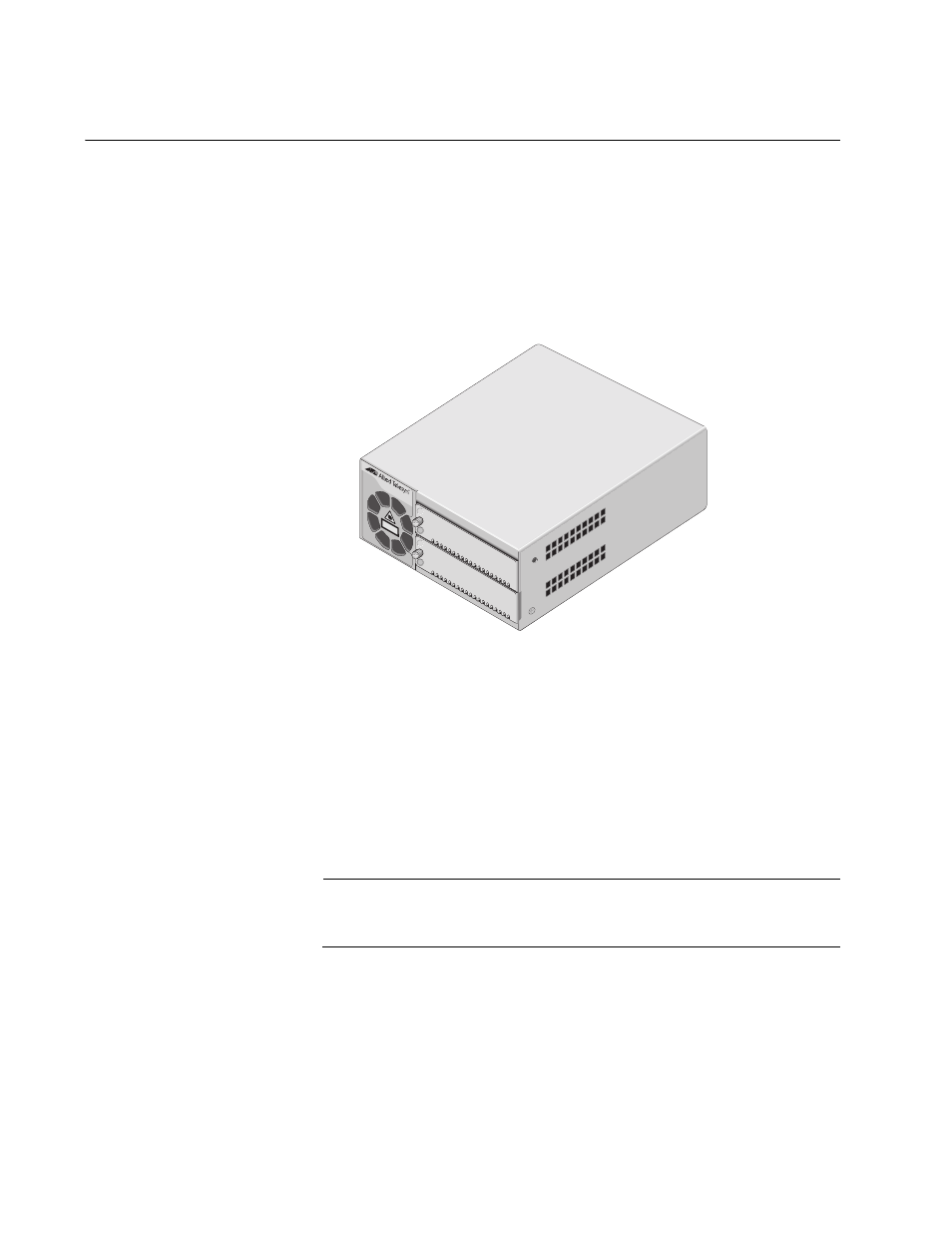

Figure 1. AT-CV120x Chassis
An AT-CV120x chassis can house the following:
ˆ Two single-slot Converteon line cards
ˆ One double-slot AT-CM70S line card
ˆ One single-slot Converteon line card with an AT-CV5M0x
Management Card
The single-slot Converteon line cards are hot swappable.
Note
For a current list of the Converteon line cards, refer to the Allied
Telesis web site or consult your authorized sales representative.
The chassis also features two power connectors so that you can add
power redundancy to protect your network devices against loss of
connectivity due to a power failure.
You can place the chassis on a table or desk, or mount it on the wall using
an AT-CMMNT12 Wall-Mount Bracket (as described on page 19)
