AT-CV120x Two-Slot Chassis Installation Guide
31
Using the AT-CV120x Chassis on a Desktop
To use the AT-CV120x chassis on a desktop, perform the following
procedure:
1. Remove the chassis from the shipping container.
2. Turn the chassis over and place it on a secure surface.

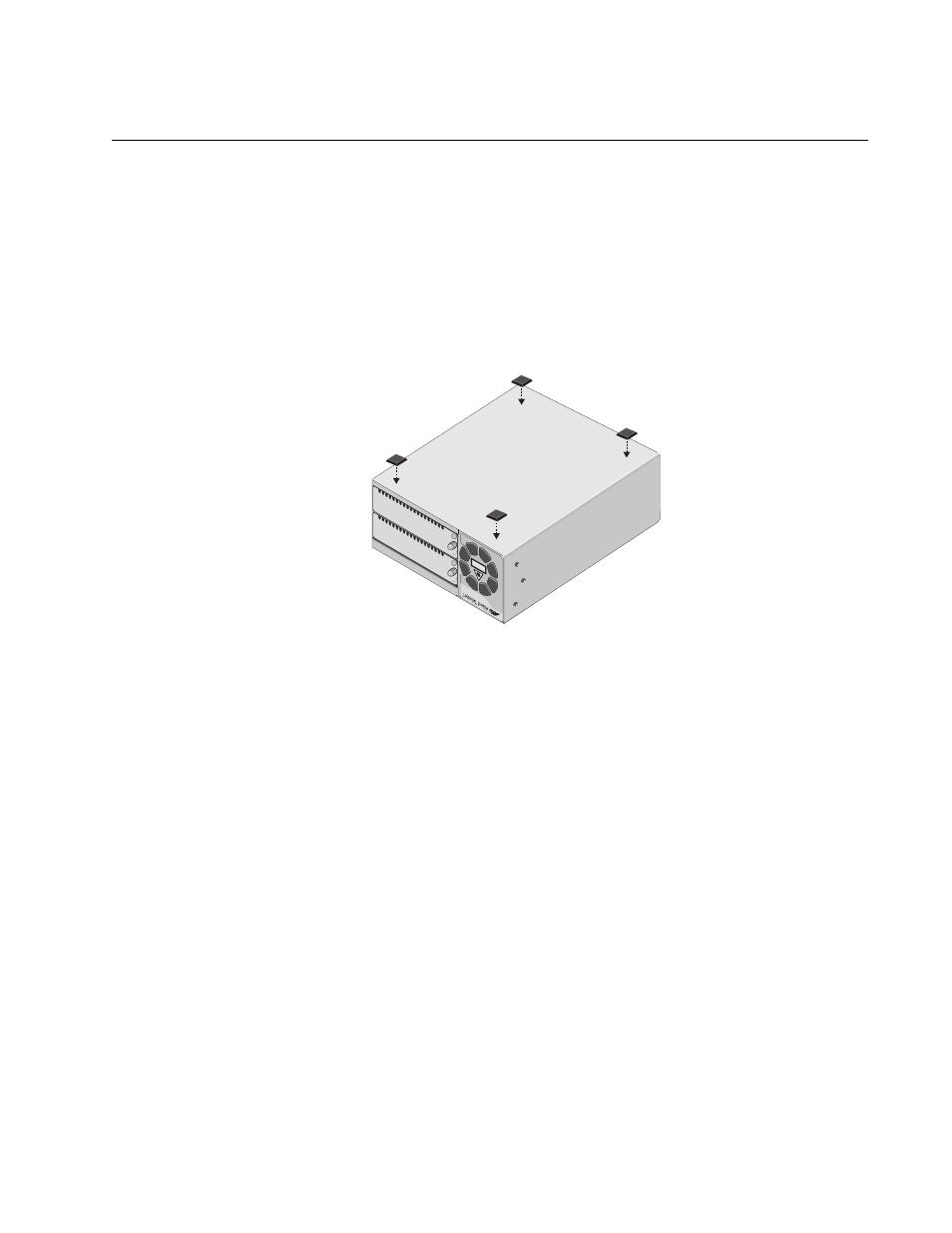

3. Attach the four self-adhesive rubber feet, included, to the bottom of the
chassis, as shown in Figure 10.
Figure 10. Attaching Rubber Feet
4. Turn the chassis over again.
5. Install the line card according to the instructions in “Installing a
Converteon Line Card” on page 33.
6. Place the chassis in its intended location.
7. Cable the line card according to the instructions that were shipped with
the line card.
8. Go to “Powering On an AT-CV120x Chassis” on page 32 to complete
the installation.
