AT-8500 Series Layer 2+ Fast Ethernet Switches Installation Guide
65
instructions on how to configure a port trunk, refer to the AT-S62
Management Software User’s Guides.
ˆ When you connect a device to a port on an AT-8524POE switch,
the port automatically determines whether the node is a powered
device and, if it is, the amount of wattage required by the device,
up to a maximum of 15.4 W. If the node is not a powered device,
the port automatically disables the PoE feature.
Warning
To reduce the risk of electric shock, the PoE ports on this product
must not connect to cabling that is routed outside the building where
this device is located.
E40
Cabling Fiber
Optic Ports
If your switch has fiber optic ports, perform the following procedure:

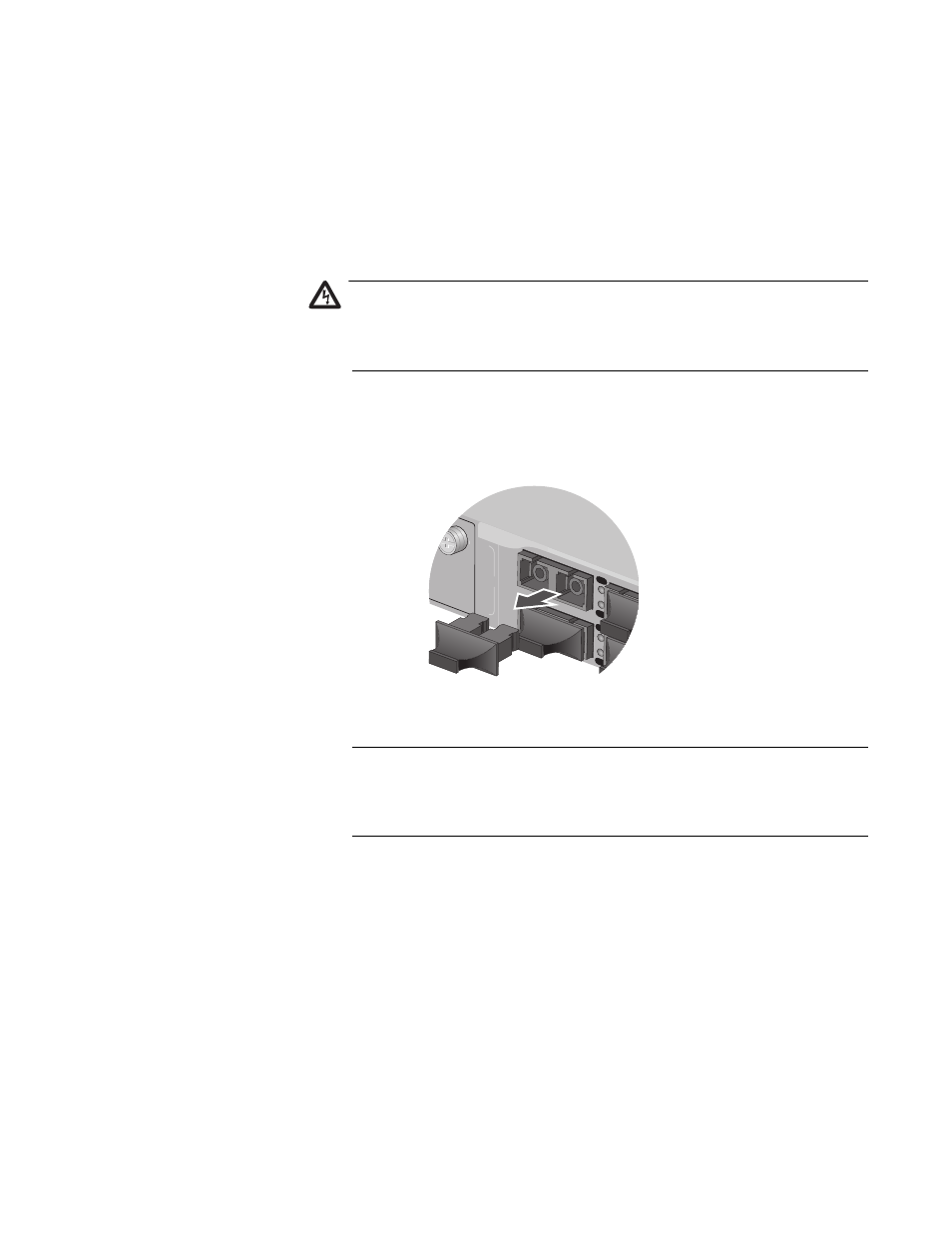

1. Remove the dust covers from the ports, as shown in Figure 20.
Figure 20. Removing the Dust Covers from the Fiber Optic Ports
Note
Do not remove the dust covers if you do not intend to connect the
fiber optic cables at this time. Dust contamination can adversely
impact the operation of the ports.
