AT-8500 Series Layer 2+ Fast Ethernet Switches Installation Guide
21
AT-8550SP The AT-8550SP switch has 48 10/100Base-TX twisted pair ports with
RJ-45 connectors. The ports have a maximum operating distance of 100
meters (328 feet) using Category 3 or better 100 ohm twisted pair cable for
10Base-T operation and Category 5 or 5E 100 ohm twisted pair cable for
100Base-TX operation.
The switch also features two 10/100/1000Base-T twisted pair ports,
labelled Ports 49R and 50R. They have RJ-45 connectors, require
Category 5 or 5E 100 ohm twisted pair cable, and have a maximum
operating distance of 100 meters (328 feet).
There are also two slots for two Small Form-factor Pluggable (SFP)
transceivers. You can use the slots to add 1000Base-X fiber optic ports to
the switch. For a list of supported SFP transceivers, contact your Allied
Telesis sales representative or refer to the Allied Telesis web site:
www.alliedtelesis.com.
Note
The twisted pair ports 49R and 50R change to a redundant status
when SFP transceivers are installed and establish links with their
end nodes. A link on an SFP port always takes precedence over that
of the corresponding 10/100/1000Base-T twisted pair port.

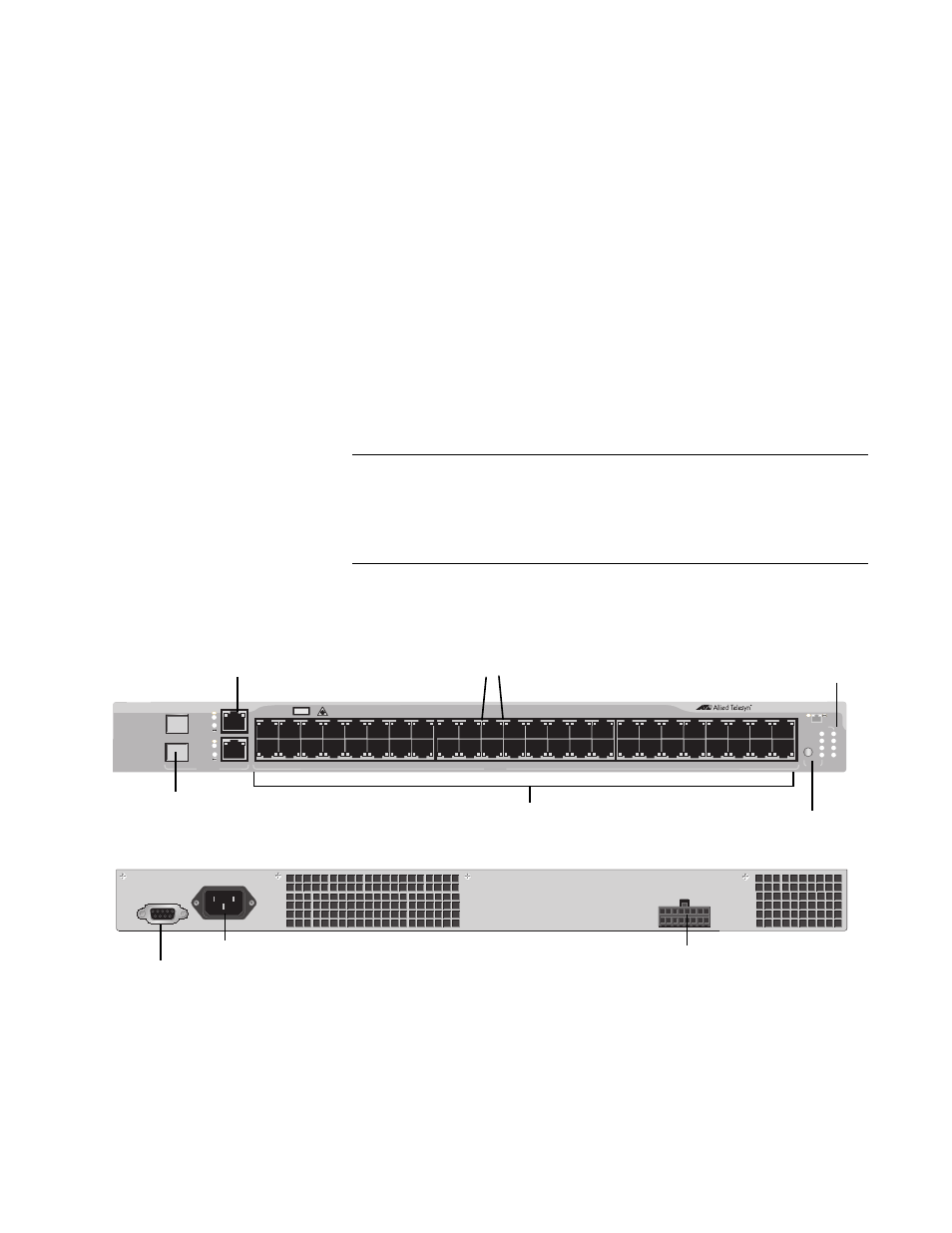

Figure 5 shows the front and back panels of the AT-8550GB switch.
Figure 5. AT-8550SP Switch Front and Back Panels
COL
SPD
FDX
ACT
FLT
RPS
MSTR
PWR
STA TUS
AT-8550SP Fast Ethernet Switch
LINK LINK
LINK
MAIN PORT S
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48
MODE LINK 49R
49
50
SFP
UPLINK PORTS
CLASS 1 LASER PRODUCT
MODE MODE LINK 50R
Port LEDs
SFP Slots
100-240VA C ~
RPS INPUT
RS-232
Terminal Port
AC Power Connector RPS Connector
10/100Base-TX Ports
LED Mode
Select Button
System
LEDs
10/100/1000Base-T Ports
