Chapter 1: Overview
18
AT-8524M
The AT-8524M switch has 24 10/100Base-TX twisted pair ports and two
module expansion slots. The twisted pair ports feature RJ-45 connectors
and have a maximum operating distance of 100 meters (328 feet) using
Category 3 or better 100 ohm twisted pair cable for 10Base-T operation
and Category 5 or 5E 100 ohm twisted pair cable for 100Base-TX
operation.
The expansion slots are compatible with 100Base and 1000Base fiber
optic and twisted pair port expansion modules and the AT-STACKM
stacking module.

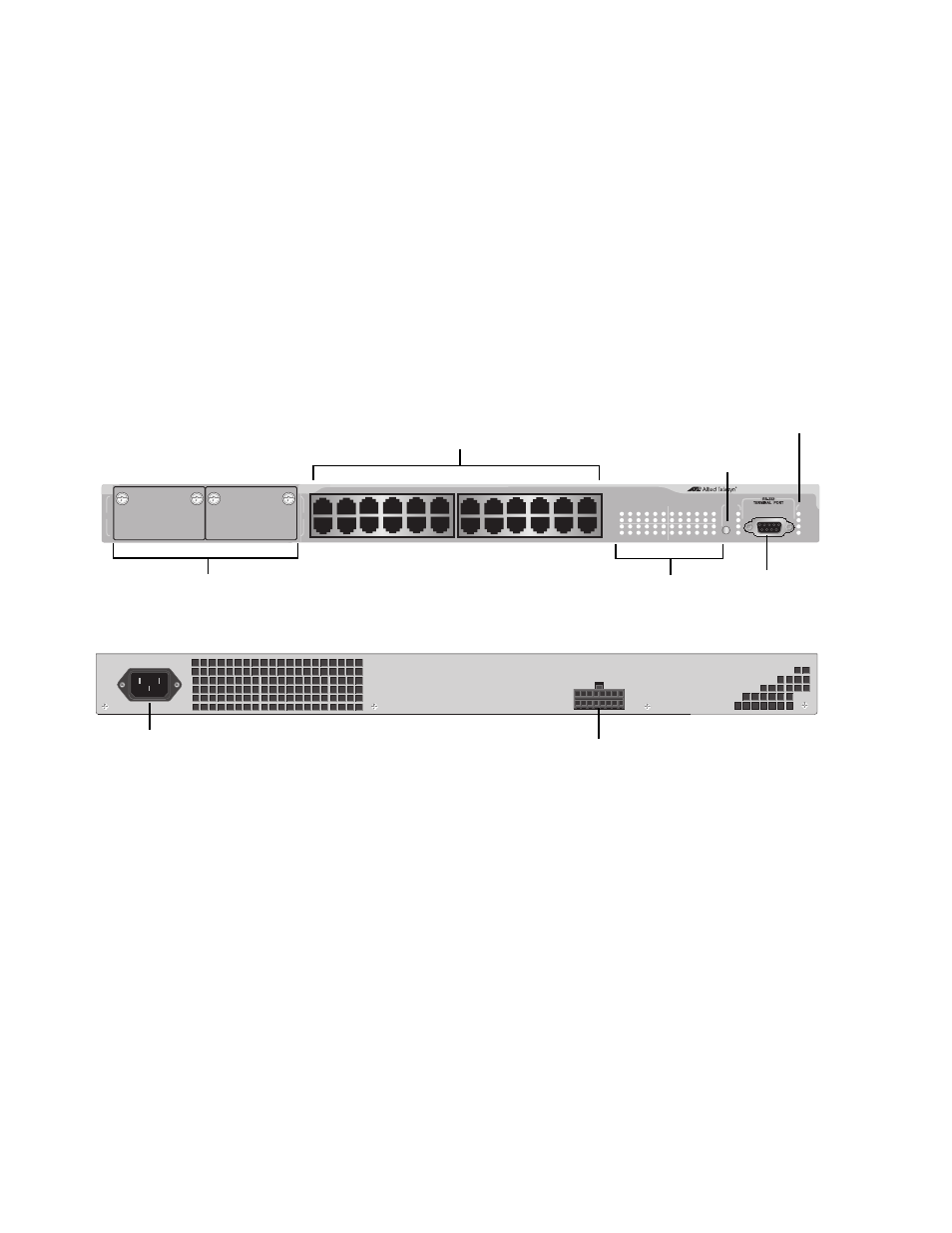

Figure 2 shows the front and back panels of the AT-8524M switch.
Figure 2. AT-8524M Switch Front and Back Panels
1
3
5
7
9
11
13
15
17
19
21
23
2
4
6
8
10
12
14
16
18
20
22
24
LINK
MODE
LINK
MODE
COL
100
FULL
ACT
FAULT
RPS
MASTER
PWR
MODE
1
3
5
7
9
11
2
4
6
8
10
12
13
15
17
19
21
23
14
16
18
20
22
24
STA
TUS
26
25
AT-8524M
Fast Ethernet Swit
ch
10/100Base-TX Ports
Port Status
LED Mode
Select Button
System
LEDs
LEDs
100-240VA
C
~
RPS INPUT
Module Expansion Slots
RS-232
Terminal Port
AC Power Connector
RPS Connector
