Chapter 2: Installation
40
Installing a Switch in a Rack
To install the switch in a rack, perform the following procedure:
1. If attached, remove the rubber feet using a flat-head screwdriver.
2. Install a bracket on one side of the switch using a Phillips screwdriver
and three of the rack-mount screws included with the switch. Figure 9
shows how to mount the brackets on the switch.

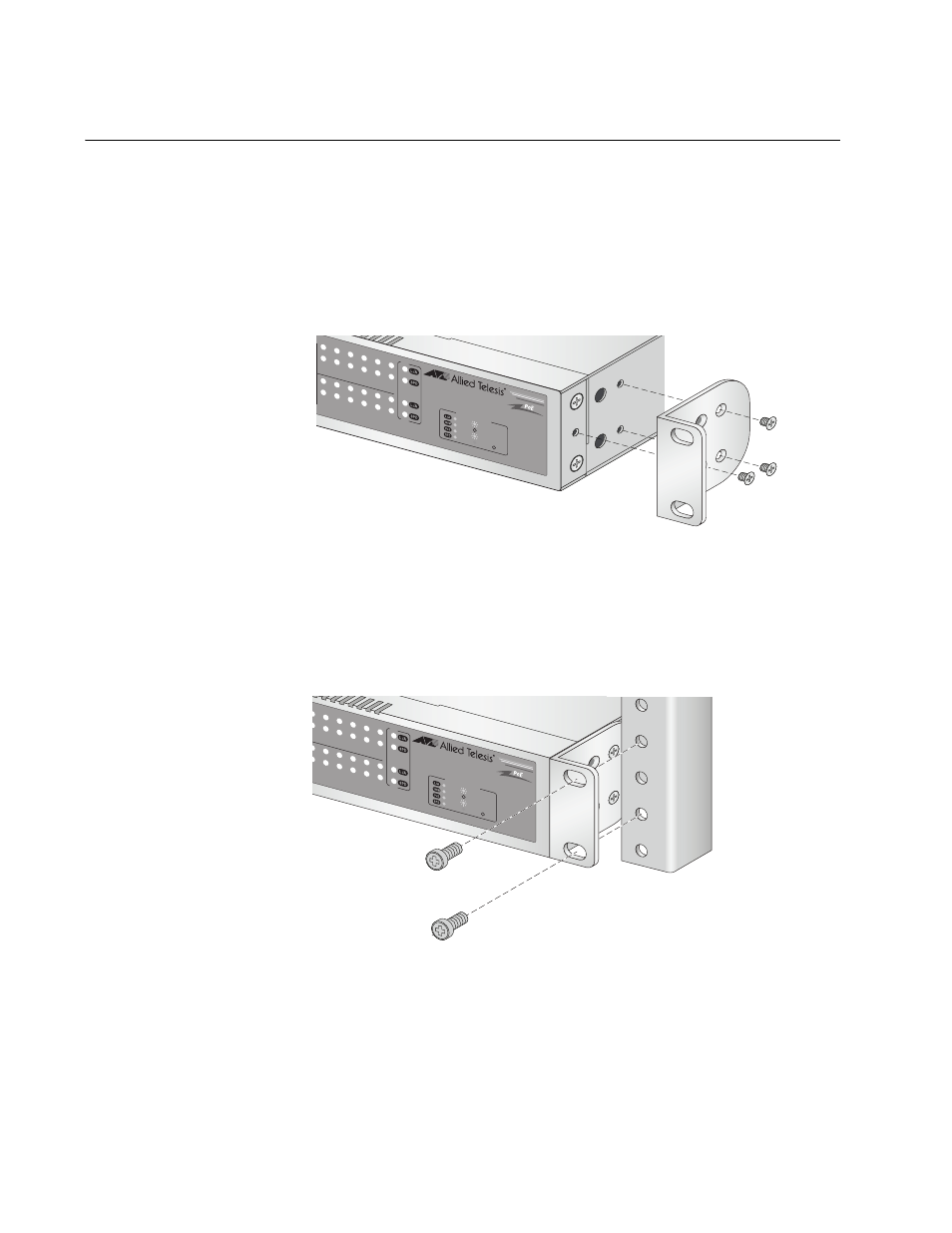

Figure 9. Attaching the Rack-Mount Bracket
3. Repeat step 2 to attach the remaining bracket to the other side of the
switch.
4. Mount the switch on a 19-inch rack, as shown in Figure 10.
Figure 10. Mounting the Switch on the Rack
AT-FS750/24POE
24 Por
t 10/100 M
bps W
ebSm art Switch
with 2 Combo
Uplinks
+ 12 PO
E Po rts
13
14
15
16
17
18
19
20
21
22
23
24
25
26
PD ON
PD ERRO
R
LINK
ACT 100M
10M
1000M
100M
PORT A
CTIV ITY
10M
1097
AT-FS750/24POE
24 Port 10/100
Mbps WebSma
rt Sw itch
with 2 Co
mbo U
plinks
+ 12 P OE Por
ts
3
4
15
16
17
18
19
20
21
22
23
24
25
26
PD ON
PD ER ROR
LINK
ACT 100M
10M
1000M
100M
PORT A
CTIVITY
10M
1098
