Chapter 1: Overview
30
Network Topologies
This section illustrates two network topologies that you can create with the
AT-FS750/24POE Fast Ethernet Smart switch: a power workgroup and
collapsed backbone. Both types of topologies are described below.
Power
Workgroup
Topology
The topology shown in Figure 6 is commonly referred to as a power
workgroup topology. Two AT-FS750/24POE Fast Ethernet Smart switches
are connected to an AT-9424T/SP Gigabit Ethernet Switch, one via an
RJ45 connection and the other using a fiber optic connection. Access
points and IP phones are connected to the switches as PoE devices. The
access points, in turn, support a wireless Ethernet network of laptop users.

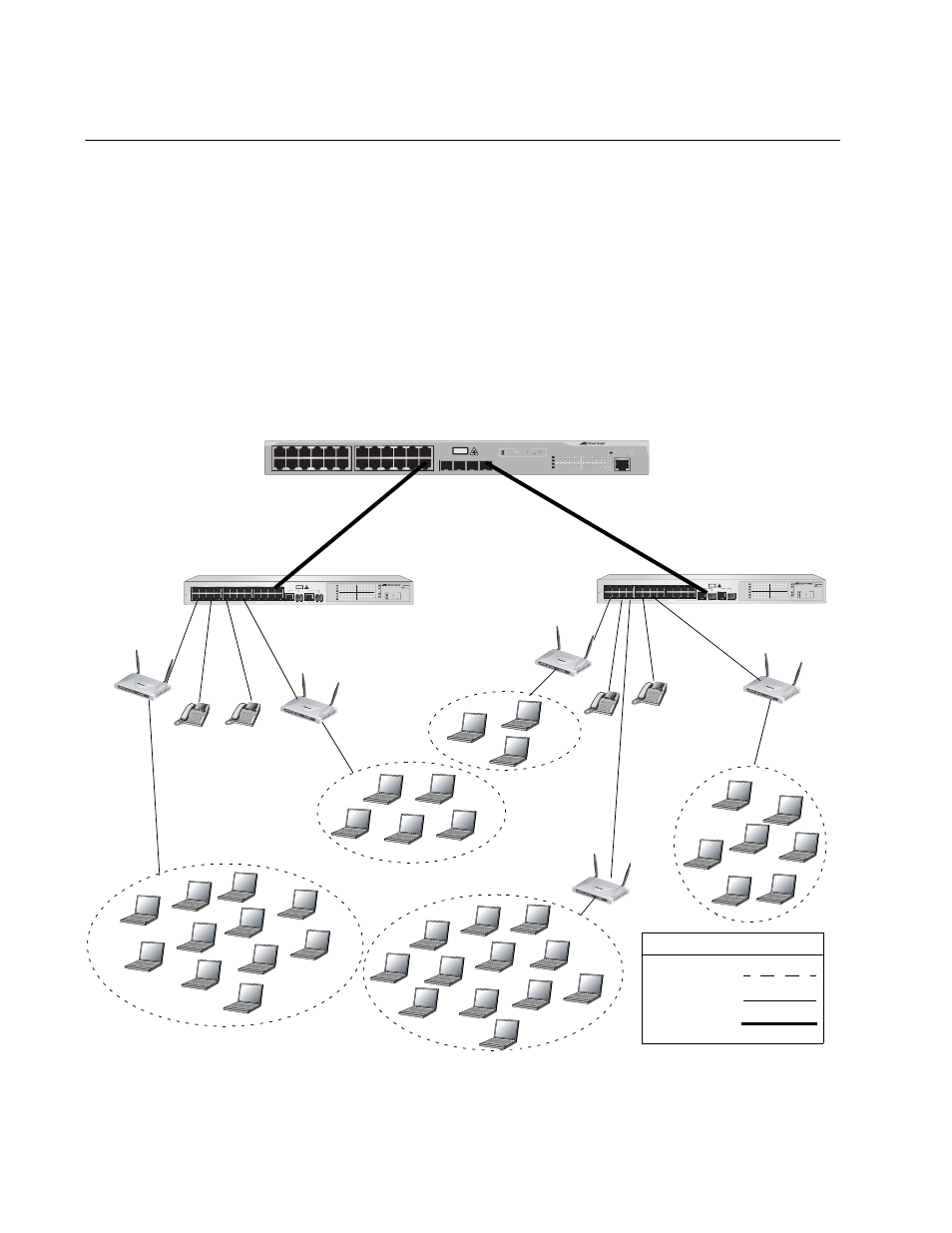

Figure 6. Power Workgroup Topology
