Chapter 1: Overview
20
LEDs
The AT-FS750/24POE Fast Ethernet Smart switch provides the LEDs
described in this section.
System LEDs
The switch has two system-level LEDs, Power and PoE, as shown in
Figure 2 and described in Table 2.

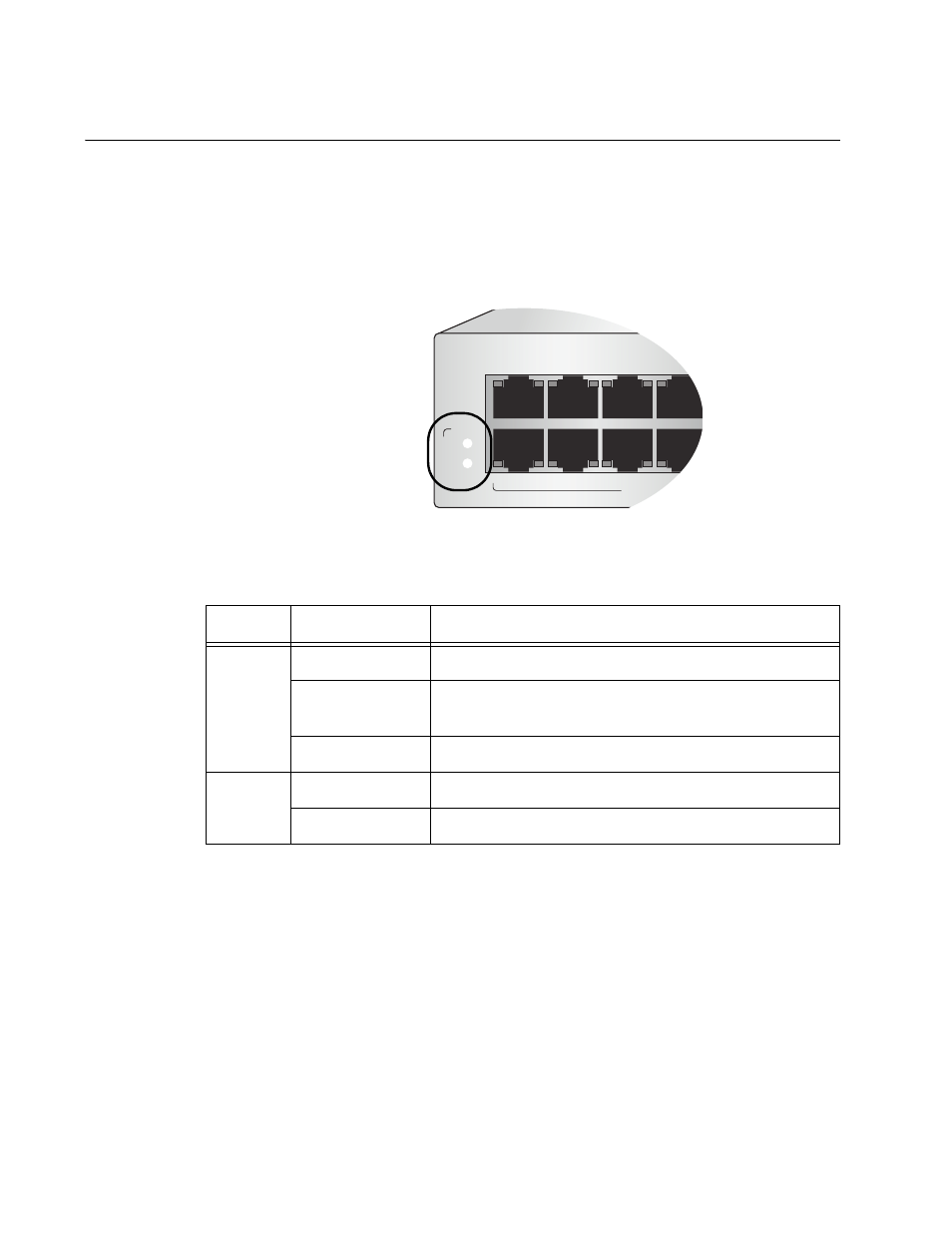

Figure 2. System LEDs
10/100Base-T
POE Port LEDs
Ports 1 through 12 each have three LEDs as shown in Figure 3 and
described in Table 3.
1 3 5 7
2 4 6 8
POE
PWR
SYSTEM
10/100 POE PORTS
Table 2. System LEDs
LED State Description
Power Green The switch is powered up and operating normally.
Blinking Green The switch is starting up, performing a self-test, or
dowloading software.
Off The switch is powered off.
PoE Green POE is available for the POE ports.
Amber POE failed.
