AT-FS750/24POE Fast Ethernet Smart Switch Installation Guide
39
Installing the Switch on a Desktop
You can place the switch on a desktop or install them in a 19-inch rack. To
install the switch in a rack, refer to “Installing a Switch in a Rack” on
page 40.
To place the switch on a desktop, perform the following procedure:
1. Remove all equipment from the package and store the packaging
material in a safe place.
2. Turn the switch over and attach the four rubber feet to the bottom of
the switch as shown in Figure 8.

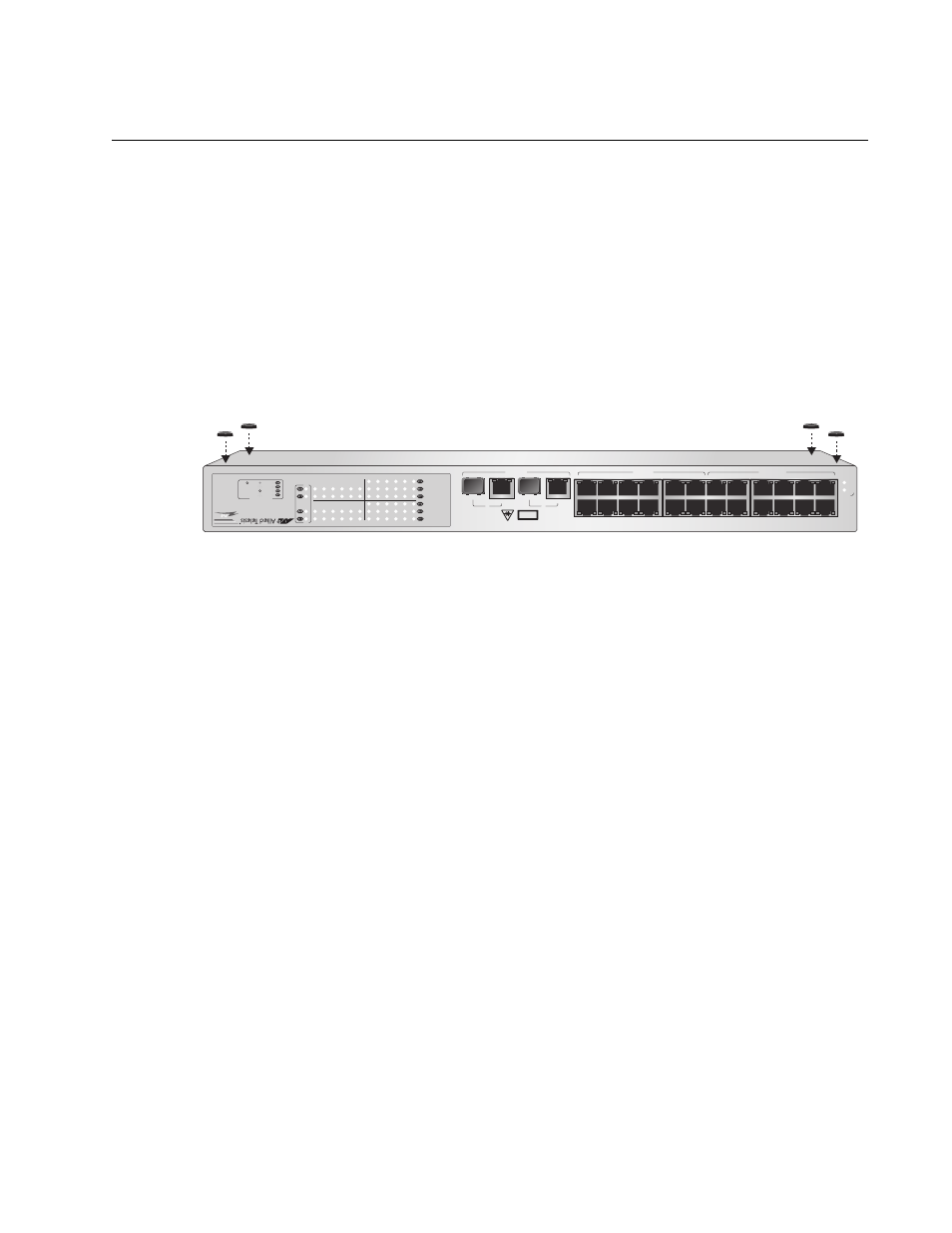

Figure 8. Attaching the Rubber Feet
3. Turn the switch over again and place it on a flat, secure surface (such
as a desk or table) leaving ample space around the unit for ventilation.
1096
AT-FS750/24POE 24 Po rt 10/100 Mbps We bSmart Switch
with 2 Combo Uplinks + 12 POE Po rts
2
3
4
5
6
7
8
9
10 12
11 13
14
15
16
17
18
19
20
21
22
23
24
25
26 PD ON PD ERR OR
LINK ACT
100M 10M
1000M 100M
POR T A CTIVITY
10M
1 1 3 5 7 9 11 13 15 17 19 21 23
2 4 6 8 10 12 14 16 18 20 22 24
POE
PWR
SYSTEM
10/100 POE PORTS
25
CLASS 1 LASER PRODUCT
SFP
10/100/1000Base-T
26
SFP
10/100/1000Base-T
UPLINK PORT S 10/100 PORTS
