Allied Telesis AT-GS950/8 User Manual
Page 37
AT-GS950/8 Gigabit Ethernet WebSmart Switch Installation Guide
37
Figure 11 shows how to mount the switch so that it is flush with the
rack, and Figure 12 shows to mount the switch so that it extends in
front of the rack.

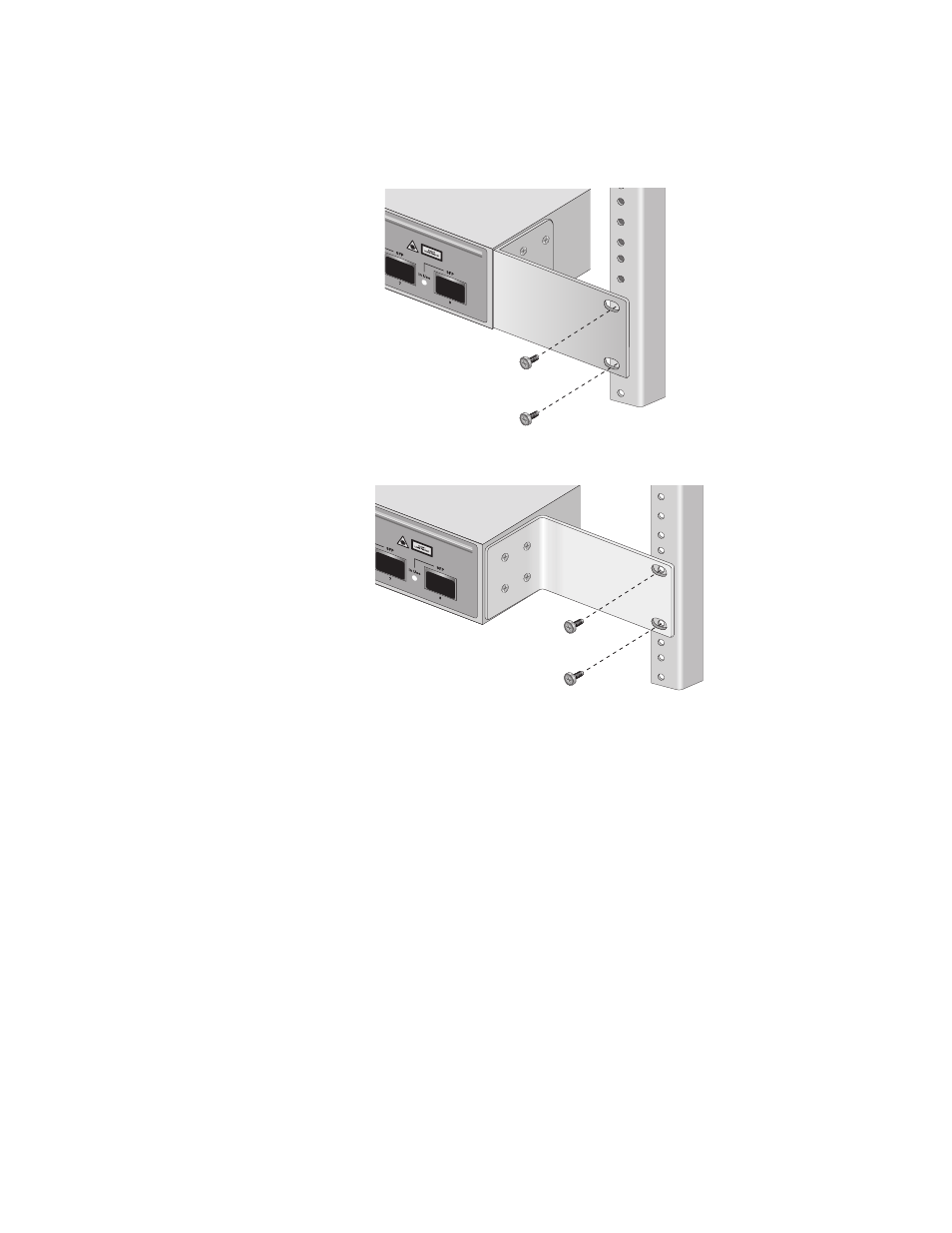

Figure 11. Mounting the Switch on a Rack (Switch is Flush with Rack)
Figure 12. Mounting the Switch on a Rack (Switch Extends From Rack)
5. Repeat step 4 to attach the switch to the other side of the rack.
To cable the switch, see “Cabling and Powering On the Switch” on
page 40.
