Figure 3. sfp leds, Table 4. sfp port leds – Allied Telesis AT-GS950/8 User Manual
Page 20
Chapter 1: Overview
20

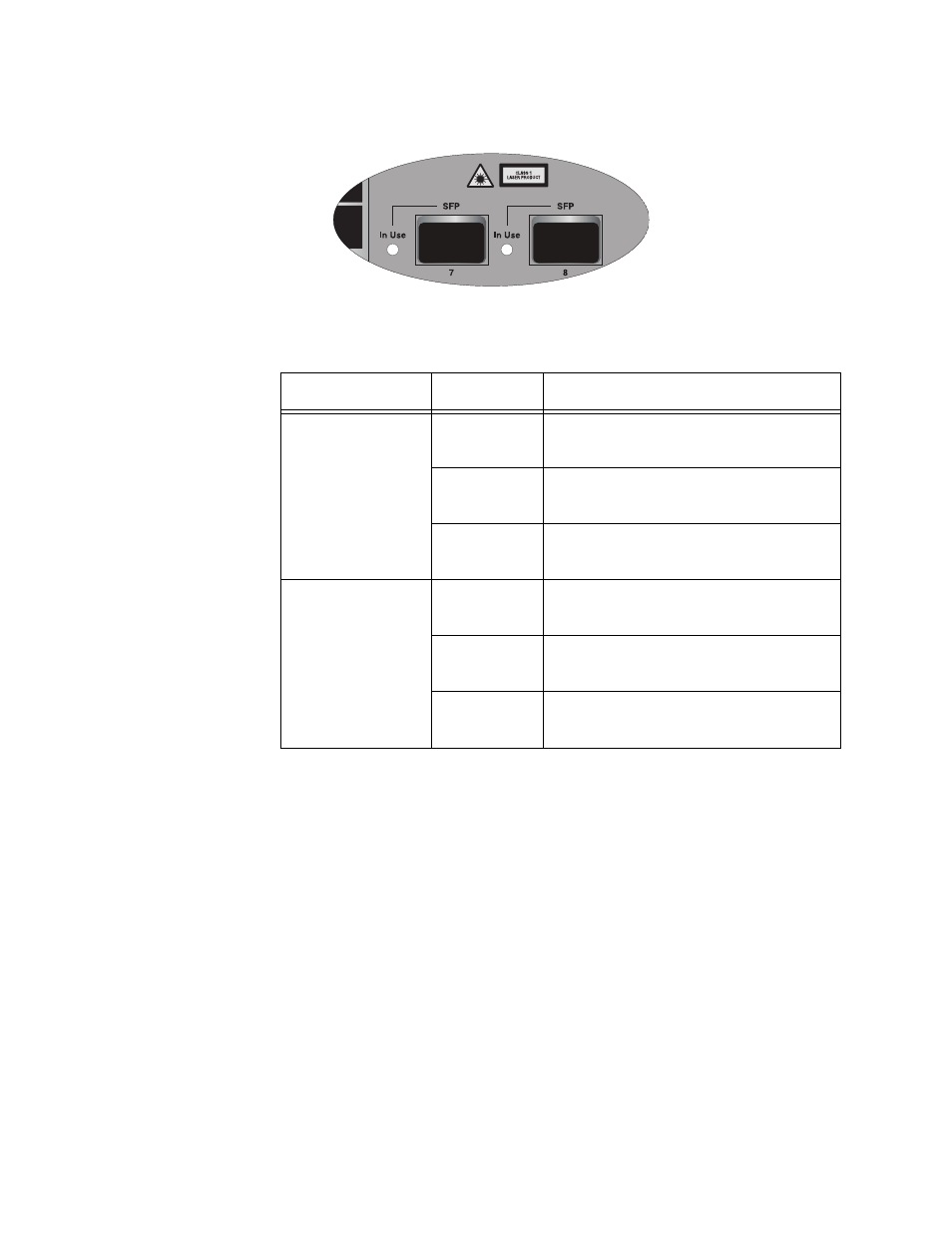

The SFP LEDs are shown in Figure 3 and described in Table 4.
Figure 3. SFP LEDs.
930
Table 4. SFP Port LEDs
LED
State
Description
In Use (port 7)
Off
The port has not established a link
with an end node.
Blinking
Green
The port is transmitting or receiving
data.
Green
A valid link has been established on
the port.
In Use (port 8)
Off
The port has not established a link
with an end node.
Blinking
Green
The port is transmitting or receiving
data.
Green
A valid link has been established on
the port.
