Connecting the fiber optic cables – Allied Telesis AT-FS750/24POE User Manual
Page 49
AT-FS750/24POE Fast Ethernet WebSmart Switch Installation Guide
49
.
2. Connect the other end of the twisted pair cable to a port in the end
node.
Connecting the
Fiber Optic
Cables
To connect a fiber optic cable to an SFP transceiver installed in the
AT-FS750/24POE WebSmart Fast Ethernet Switch, perform the following
procedure:
Note
If you plan to configure a redundant data path, make sure that the
Spanning Tree feature is enabled via the AT-S105 Management
Software before connecting the ethernet cables for your secondary
network connections.

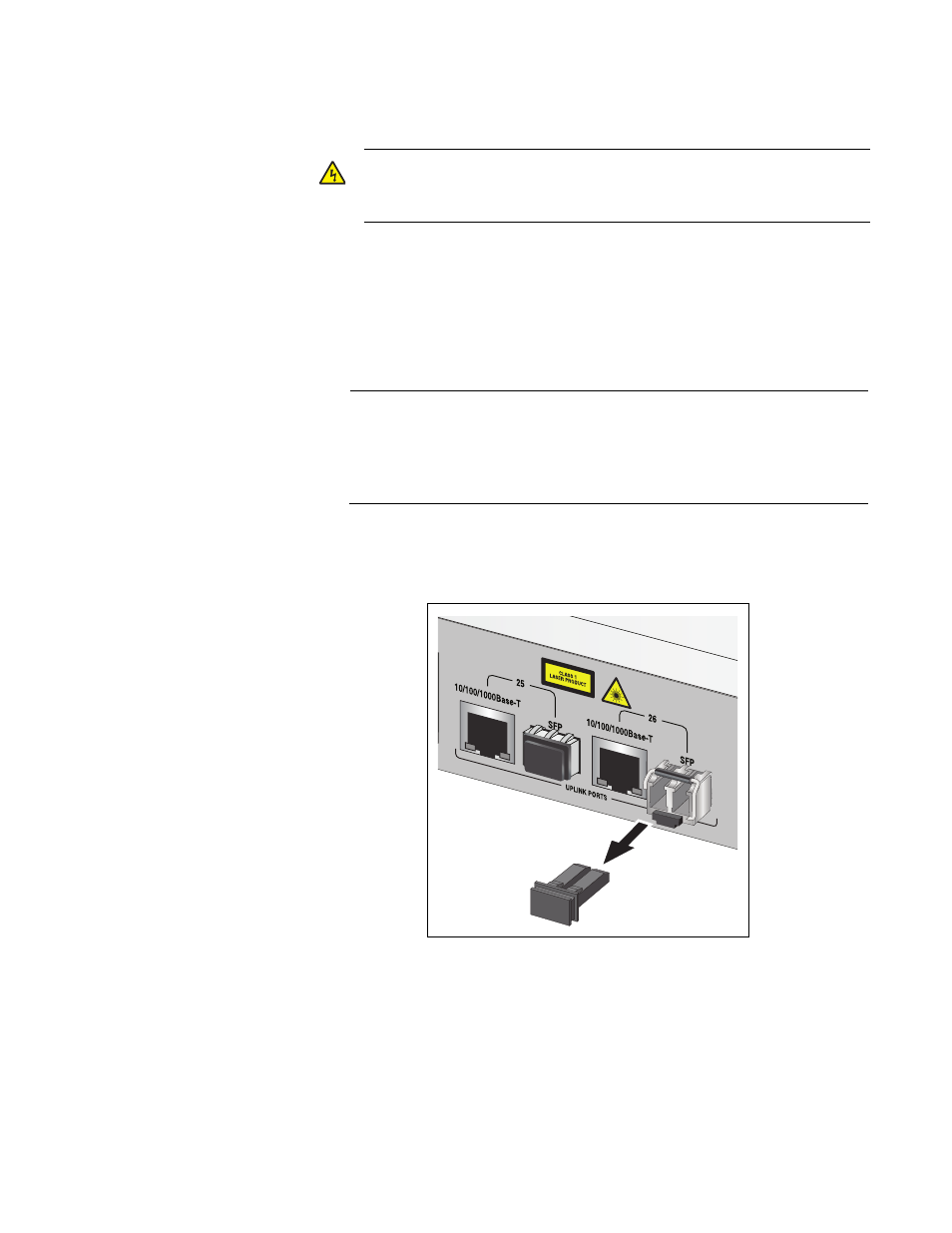

1. Remove the dust plug from the SFP transceiver, as shown in
Figure 17. Removing the Dust Plug from the SFP transceiver
Warning: To reduce the risk of electric shock, the PoE ports on
this product must not connect to cabling that is routed outside
the building where this device is located.
E40
1724
