Chapter 2: Installation
44
Installing a Switch in a Rack
To install the switch in a rack, perform the following procedure:
1. If attached, remove the rubber feet using a flat-head screwdriver as
shown in Figure 11.

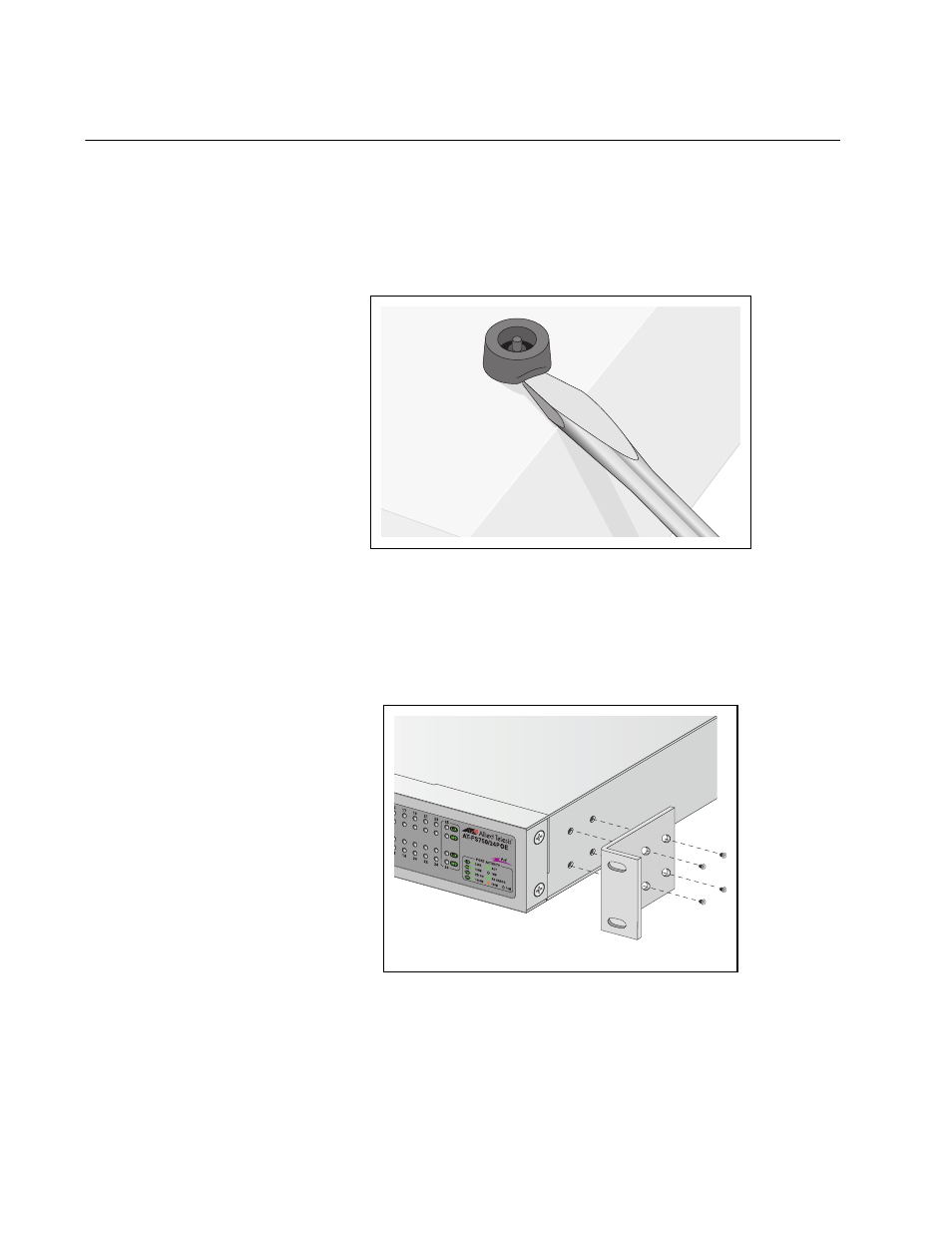

Figure 11. Removing Feet from Switch
2. Install a bracket on one side of the switch using a Phillips screwdriver
and three of the rack-mount screws included with the switch. Figure 12
shows how to mount the brackets on the switch.
Figure 12. Attaching the Rack-Mount Bracket
3. Repeat step 2 to attach the remaining bracket to the other side of the
switch.
