10/100Base-T
POE Port LEDs
Ports 1 through 12 each have three LEDs as shown in Figure 4 and
described in Table 4.
.

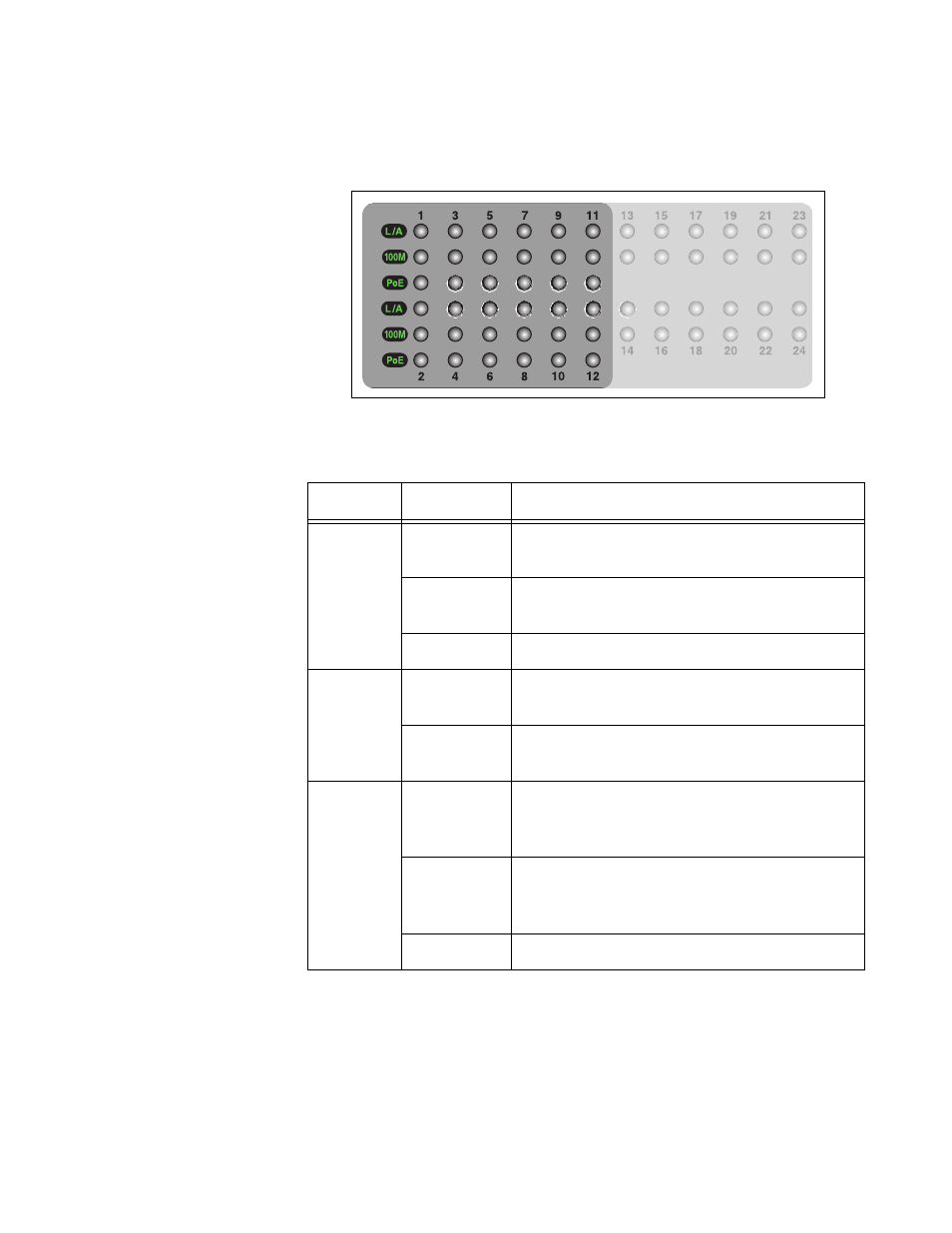

Figure 4. POE Port LEDs (Port 1 - 12)
Table 4. 10/100Base-T POE Port LEDs (Ports 1 - 12)
LED State Description
L/A
Solid Green A valid link has been established on the
port.
Blinking
Green The port is transmitting or receiving data.
Off No link is established on the port.
100M
Solid Green A valid 100 Mbps link is established
between the uplink port and the end node.
Off A valid 10 Mbps link is established between
the port and the end node.
PoE
Solid Green The port detects a Powered Device and
complies with the condition of the normal
load.
Blinking
Green Indicates an overload or a short of a terminal
port or external forced voltage feeds into the
port.
Off No PoE power feeding a Powered Device.
