Chapter 2: Installing the Media Converter
44
4. Power ON the converter as instructed in “Powering On the Media
Converter” on page 47.
5. Power ON the end-nodes.
Connecting to the SFP Transceiver on the AT-MC1008/SP
Media Converter
To connect to the SFP transceiver on the AT-MC1008/SP converter,
perform the following procedure:
Laser
Class 1 laser product.
2
Laser
Do not stare into the laser beam.
3
1. Remove the dust cover from the SFP transceiver, as shown in
Figure 17.

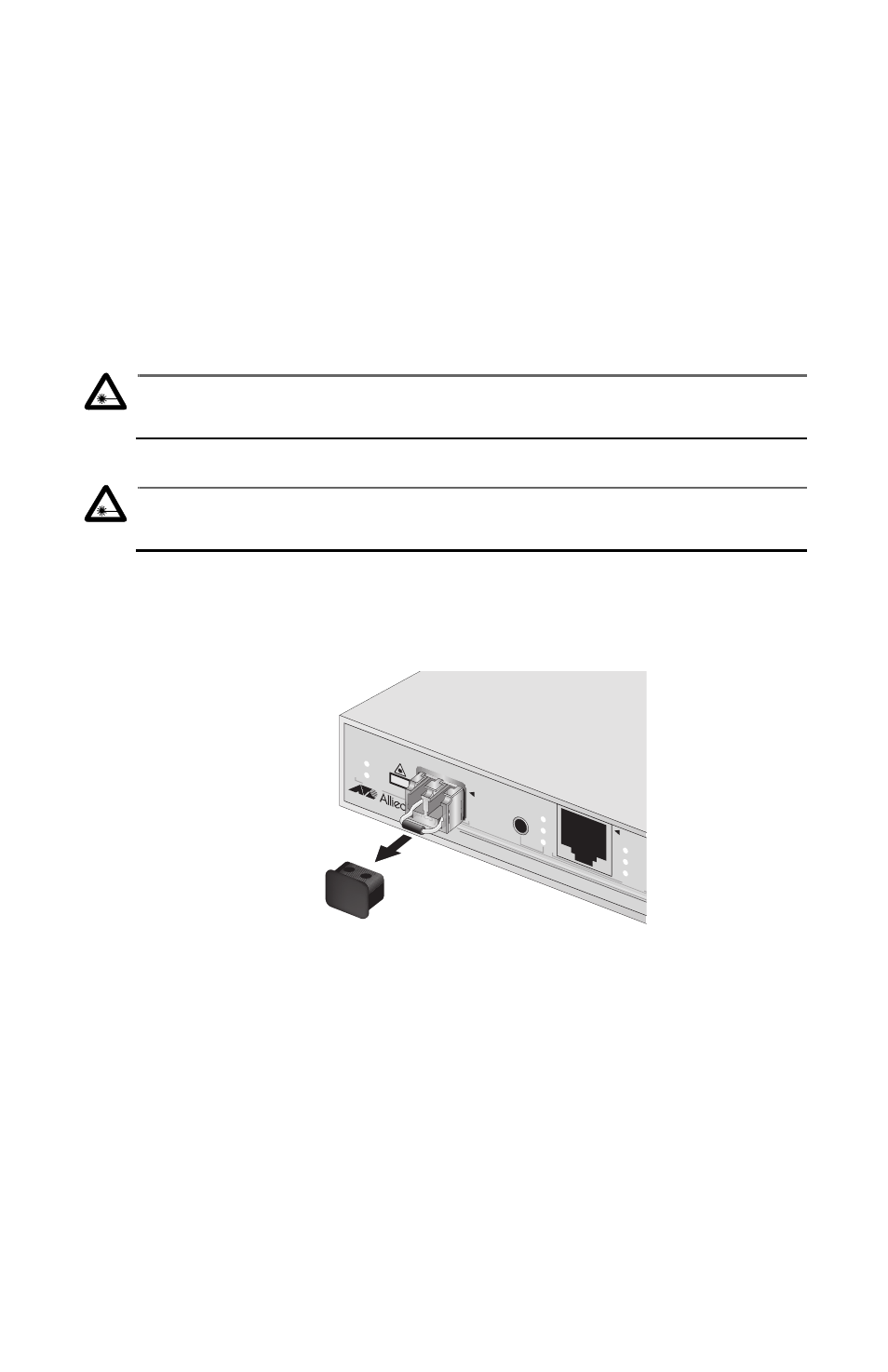

Figure 19. Removing the Dust Cover from the SFP Transceiver
AT-MC1008/SP
GIGABIT ETHERN
ET M
EDIA CONVE
RTER
1000Base-
T
PW R
LINK
ACT
ML
SML
LT
MODE
LIN K
ACT
SFP
CLAS S 1 LASER PRO DUCT PORT
1
POR
T 2
1000Base
AU
TO M
DI/M
D
370
