LEDs
There are four types of LEDs on the AT-MC1008 Series converters, as
shown in Figure 7:
ˆ Status LED
ˆ Fiber Optic Port LEDs (GBIC or SFP expansion slot)
ˆ MODE push button LEDs
ˆ Twisted pair port LEDs

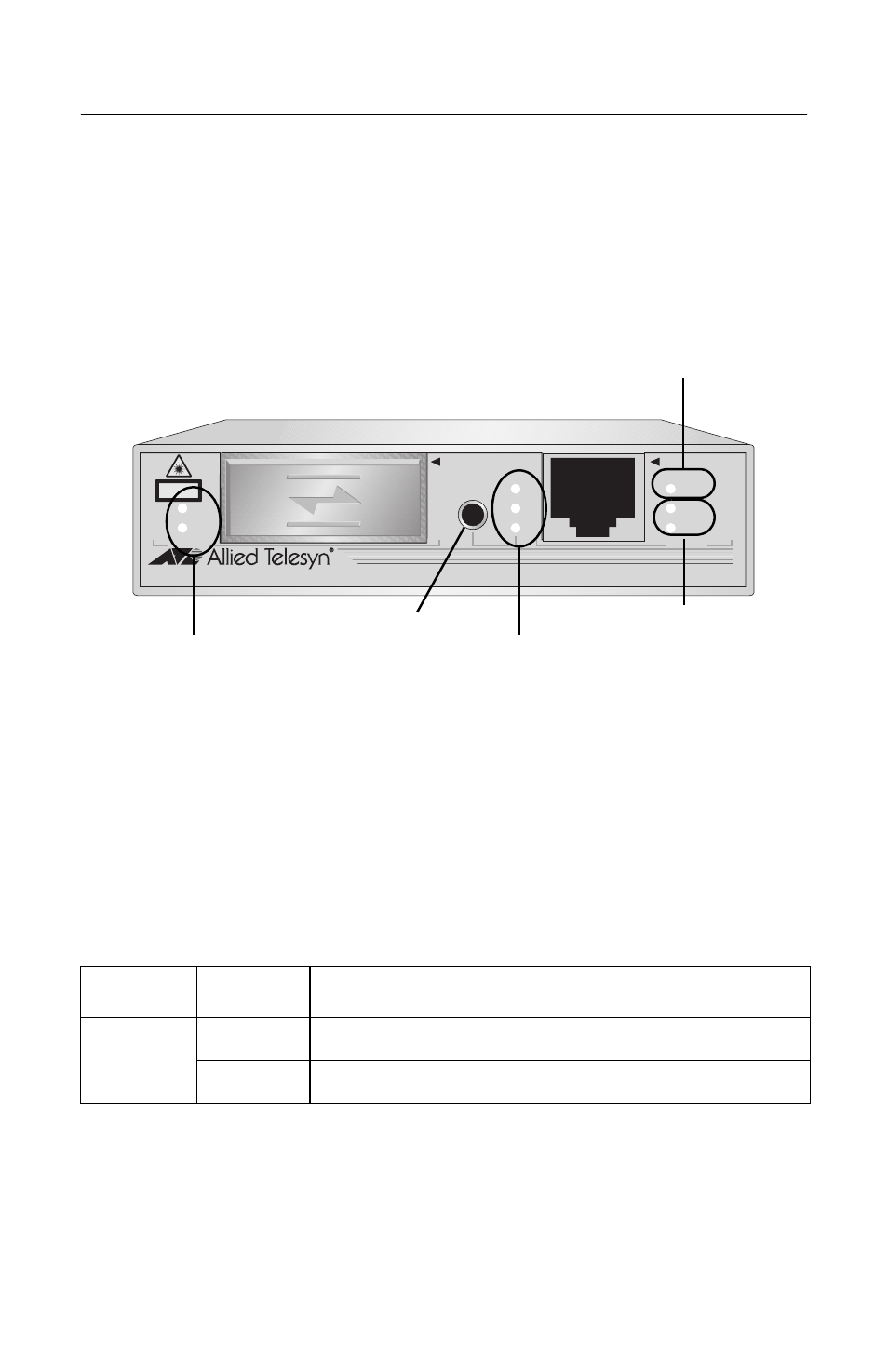

Figure 7. LEDs on the AT-MC1008 Series Converter
Status LED
The status LED indicates the operating status of the converter. Refer to
Figure 7 for the location of this status LED. Each AT-MC1008 Series
converter contains only one status LED: PWR; as defined in Table 3.
Table 3. System Status LEDs
LED Color Description
PWR Green Indicates that the unit power is ON.
Off Indicates that the converter power is OFF.
357
1000Base
AT-MC1008/GB
GIGABIT ETHERNET MEDIA CONVERTER
1000Base-T
PWR
LINK
ACT
ML
SML
LT
MODE
LINK
ACT
CLASS 1
LASER PRODUCT
PORT 2 PORT 1
Fiber Optic Port LEDs
MODE Push Button
MODE LEDs
Twisted Pair Port LEDs
Status LED
