Chapter 2: Installing the Media Converter
42
Cabling the Media Converter
Perform the following procedures to connect the data cables to the
converter ports that come with the AT-MC1008 Series media converters.
Connecting to the GBIC Transceiver on the AT-MC1008/GB
Media Converter
To connect to the GBIC transceiver on the AT-MC1008/GB converter,
perform the following procedure:
Laser
Class 1 laser product.
2
Laser
Do not stare into the laser beam.
3

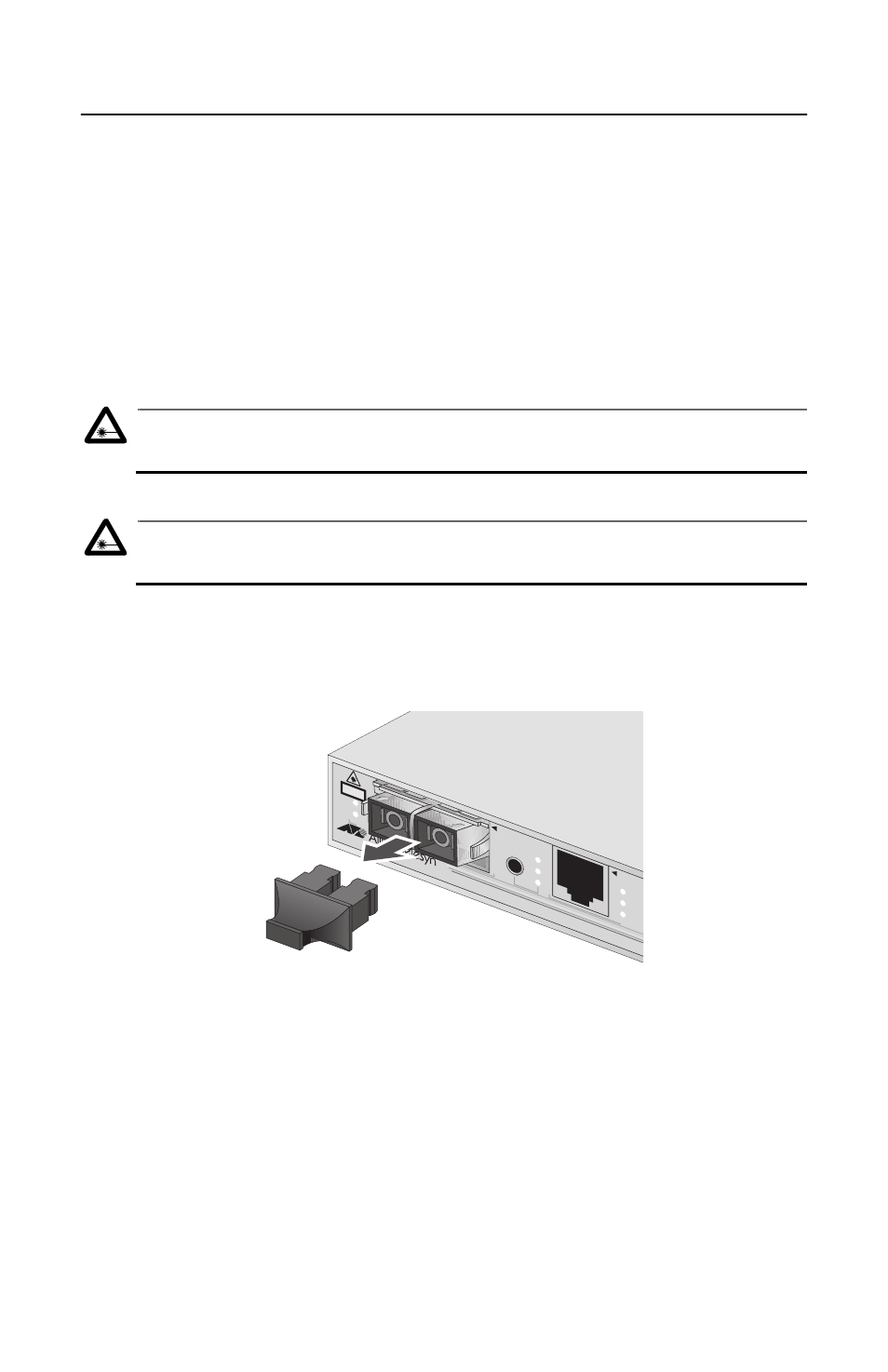

1. Remove the dust cover from the fiber optic port, as shown in
Figure 17.
Figure 17. Removing the Dust Cover from the GBIC Transceiver
1000Base AT-MC1
008/GB
GIGA
BIT ETH
ERN
ET
MED
IA CONVE
RTE
R
1000Base
-T
PWR
LINK
ACT
ML
SML
LT
MODE
LINK
ACT
CLAS S 1 LASER PRO DUCT
PORT
1
POR
T 2
AU
TO MDI/M
D 365
