Chapter 2: Installing the Media Converter
40
Installing the Media Converter in the AT-MCR12
Chassis
Note
For detailed descriptions and installation procedures for the
AT-MCR12 chassis, refer to the AT-MCR12 Media Converter
Rackmount Chassis Installation Guide (PN 613-10725-00).
Note
For mounting an AT-MC1008 Series converter into the AT-MCR12
chassis, use the mounting guide that comes with the AT-MCR12
chassis. This mounting guide is used to insert the converter into
the chassis, locking it into place while giving support to the front of
the unit.

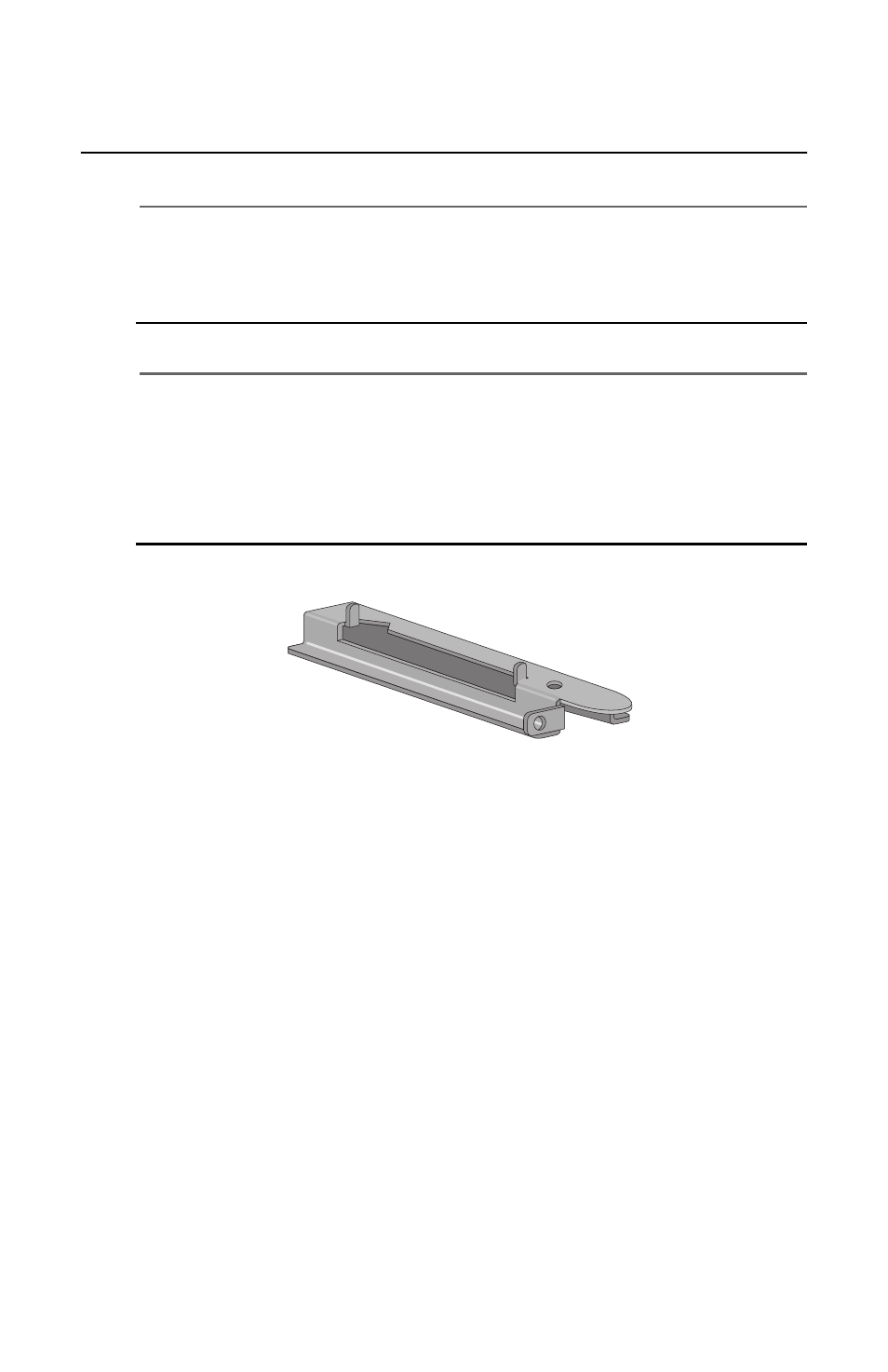

Figure 14. Mounting Guide Comes with the AT-MCR12 Chassis
To install an AT-MC1008 Series converter in the AT-MCR12 rackmount
chassis, perform the following procedure:
1. Align the mounting guide on the AT-MC1008 Series converter with
the chassis positioning on its side with the top cover on the left and
the base plate on the right.
